Aluminum Coil Mould Concrete Transfer Handling Trailer

Aluminum coil mould concrete transfer handling trailer

Introduction of Aluminum Coil Handling Vehicle
Our line of Aluminum Coil Handling Vehicles are designed to accommodate the needs of a wide range of industries such as steel, aluminum, automotive, stamping, heavy manufacturing and several others. These units are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.


Application of Aluminum Coil Handling Vehicle
The Aluminum Coil Handling Vehicleof PERFECT allow movement charges at ground level in all types of industries and applications, such as warehouse, within or without factory, bay to bay, airport, sea port, manufacturing workshop, production line, and son on.


Application of Aluminum Coil Handling Vehicle


Customized ofAluminum Coil Handling Vehicle

Product Name	Model	Power Supply Mode	Load Capacity	Running distance	Usage
Rail Transfer Cart	BDG	Conductor Rail	We can design 1-300t load transfer cart. The load capacity and table size is customized according to the working condition and the client's requirements.	≤70m	Handling industrial materials and heavy duty equipment, such as steel plate, steel tube, steel ladle, steel pipe, coils, roller, die mold, pcast slab, oil and gas, scrap bucket, bricks, boiler, etc.
Battery Powered Transfer Car	BXC	Battery		Unlimited

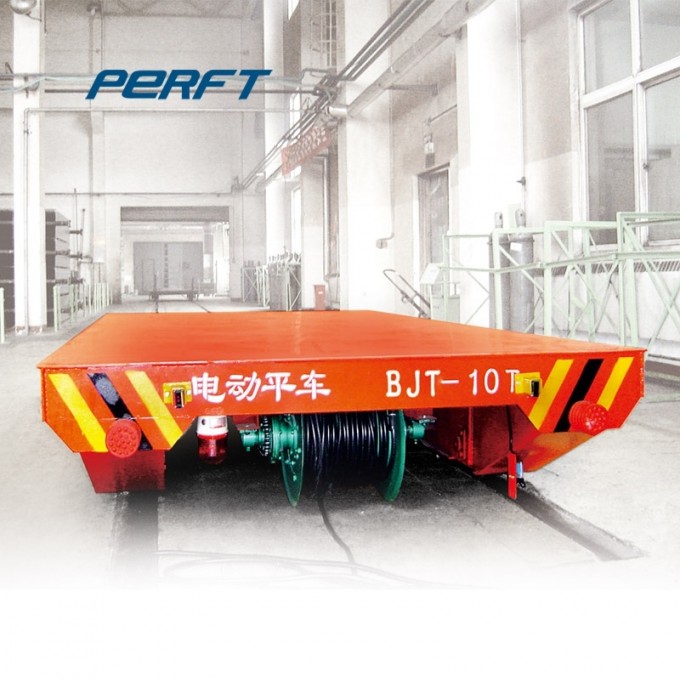

Cable powered Transfer Trolley	BJT	Cable Drum		≤50m
Electric Transfer Cart	BTL	Trailing Cable		≤20m
Busbar Powered Handling Vehicle	BHX	Busbar		Unlimited
Towed Rail Trailer	BP	Towed by other machine		Unlimited
Industrial Trailer	BWT	Manually or towed by forklift or other machine	1-150t on cement or steel floor.	Unlimited
Trackless Handling Wagon	BWP	Battery		Unlimited

Company and Customers' Visit

Henan Perfect Handling Equipment Co., Ltd. Our company is specializing in the Design and Manufacture of transport system to solve every material handling requirement.Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items.


Transportation of Aluminum Coil Handling Vehicle

*For lengthis less than 6m, the width is less than 2.2m.Electric Rail Vehiclewill be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. Electric Rail Vehicle needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.


How to choose the Aluminum Coil Handling Vehicle?
There are types transfer carts, each designed for different applications. They are:
Towed Type Carts- For loads up to 60 ton. Carts have casters or crane wheels and are manually moved on smooth to semi-smooth floors or are towed behind lift trucks or behind powered carts mounted on rail. They are an economical alternative to purchasing a second powered cart. Winches can also be used to pull carts of this type for on-rail applications. Carts can be sized according to requirements of work areas with space constraints.
On-Rail Type Carts - For loads up to 100 ton. Carts are mounted on steel rail for shuttling along a fixed path. They can be AC powered or DC battery powered. Typically used for moving materials such as steel or tanks of liquids from one location to another. Larger cart capacities and sizes are available for specific applications. Custom deck frames can be designed for specific assemblies to carry an entire shift of production and even serve as a stable moveable machine base.
Steerable Type Carts - For loads up to 45 ton. Carts have two fixed and two swivel casters and are DC battery powered (optional AC powered). Carts are designed to travel on smooth to semi-smooth level floors. Customization is available for specific applications.
