30T Transport Bogie Powered by Cable Drum
a
bout our company
Xinxiang Hundred Percent Electrical and Mechanical company has won the great fame by its clients with the excellent
design and advanced technology of transfer carts, besides that, it is also believed to be the long cooperate partners by
its customers with the perfect after-sale service.
a
bout our products
Working principle

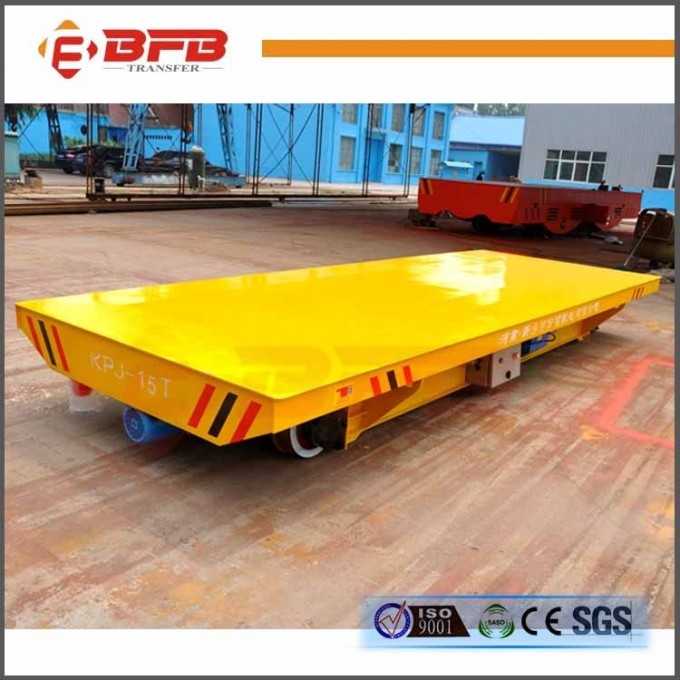

KPJ series railway transport bogie is powered by the cable reels. The transport bogie gets power AC 380V through the
device of cable reel which is installed at the bottom of the cart. The motor is co
ntrolled by the power through the AC
co
ntrol system. We use this principle to operate the transport bogie, for example, start, stop, go forward, backward
and so on. The operation system is low voltage 36V.
Advantages
1. Low cost
2. Easy operation
3. No limit of running time
4. The load capacity is not limited
5. High using frequency
6. No strict requirement for the railways
Components
AC motor, cart f
rame, cart wheels, cable drum, speed reducer, electrical co
ntrol box, push button pendant, remote
controller, VFD(variable frequency drive), alarm light.
Application
This series' transport bogie can be used in the bad environment, for example, high-temperature and anti-explosion
condition. With its simple structure and low price, this series transport bogie is more often used materials transporter
from one workshop to another.
Technique Parameter
| Type | KPJ-30T |
| Rated Load(T) | 30 |
| Table Size(mm) | 4500*2200*650 |
| Speed(m/min) | 20 |
| Wheel base(mm) | 3200 |
| Wheel Diameter(mm) | 400 |
| Ground-Clearance(mm) | 50 |
| Maxmium Wheel Load(KN) | 110.4 |
| Rail Guage(mm) | 1850 |
| Motor Power(kw) | 4 |
| Rail Code | P38 |
| Wheel Quality | 4 |
| Structure | Steel Box and Girder |
Our Certificate
Our Customer
Why Choose Us
Our Product Supply
| Product Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
| Rail Transfer Cart | KPD | Conductor Rail | Load range 1-300ton, can be customized per client demand | Running distance | Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
| Battery Powered Transfer Car | KPX | Battery | Using frequency |
| Motorized Transfer Trolley | KPJ | Cable Drum | Running distance |
| Busbar Powered Handling Cart | KPC | Busbar | Working shop |
| Towed Rail Trailer | KP | Tractor | 1-100t | Working shop |
| Steerable Towed Car | BWT | Tractor | Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. | Working environment |
| Trackless Handling Machine | BWP | Battery | Working path |
Our After service
1> The load bearing safety factor of the trolley is no less than 120%.2>Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material3> 16 hours engineering service and 24 hours internet service for our customers4> During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours5> Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
