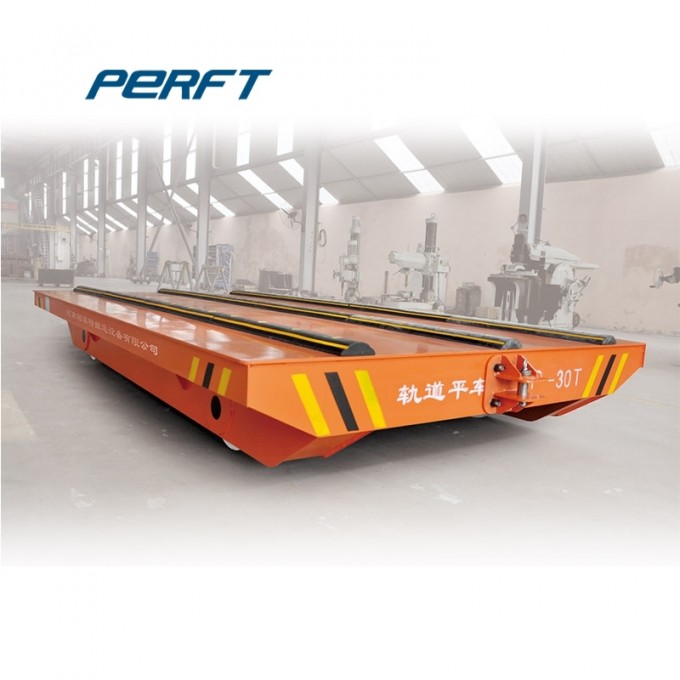

30 Ton Rated Load Electric Supplies Handling Motorized Rail Bogie

30 Ton Rated Load Electric Supplies Handling Motorized Rail Bogie1.Introduction of Supplies Handling Rail BogieHenan Perfect Handling Equipment Co., Ltd. is specializing in the design and manufacture of heavy material transport system to solve every material handling requirement.Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Battery Operated Transport Trolley, Coil and pipes Carrier Equipment, Ladle Handling Equipment, Hydraulic Lift Table,Turntables and many other specialty items.Our line of Industrial Transfer Carts are designed and manufactured to accommodate the needs of a wide range of industries including Steel, Aluminum, Automotive, Heavy Manufacturing and others. These material handling equipmentare designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.

2.Application of Supplies Handling Rail Bogie
Uses of supplies handling rail bogie:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality transfer bogie solutions you need. Transfer carts are used: to carry loads alongassembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.

3.Applicable Sites of Supplies Handling Rail Bogie
PERFECT conceives and manufactures a wide range ofrailway guided transfer carts, battery poweredtrolleys, intelligentself-propelled trolleys, die carts, industrial flat trailers, tiltersand lifting platformsthat operate in manyindustrial fields: metallurgy, manufacture, oil andgas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation,coal industry,paper mills, metalworking, warehouse and many others!

4. Parameter of Supplies Handling Rail Bogie

Model		BXC-2t	BXC-20t	BXC-50t	BXC-100t	BXC-150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	900	1200
Wheel base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	200	2000
Wheel Diameter(mm)		270	350	500	600	600
Running Speed(m/min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Battery Capacity		180	180	330	440	600
Battery Voltage		24	48	48	72	72
Running Time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for One Charge(km)		6.5	4.8	4	3.8	3.2
Recommended Rail Model		P15	P24	P43	QU100	QU100

5.Advantages of Supplies Handling Rail Bogie
Low noise It causes low noise level.
Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
6. Customizable of Supplies Handling Rail Bogie
Appearance:Table Size, Table Material, Table type, Rated Load, Color, Wheel base,Detachable structure etc.
Special Function:Hydraulic Lift Table, Dumpling, Climbing, V shape, PLC control system, Automatic Positioning, clamping device, Anti-explosion, Heat-proof function, Weighting system etc.
Safety Device: Alarm light, Emergency stop button, Radar detector, Buffer, V shape support, Guardrails etc.
Special Design: Round corner, Hold pendant box, Lifting hole etc.
7. Factory and Delivery


8. Q&A
Will A Transfer Cart Be A Good Solution?
A good question to ask since there are many material handling solutions on the market! Which one is the right choice? For starters, transfer carts are moveable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
