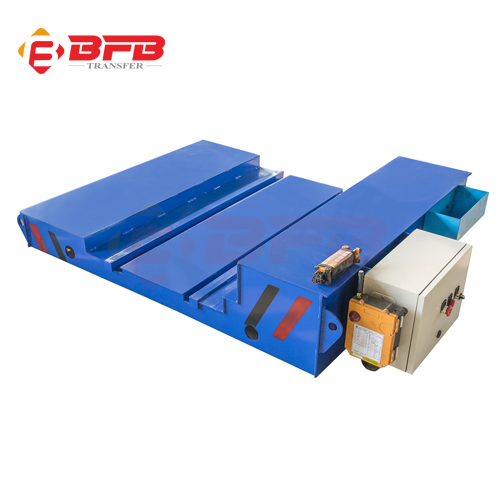

Bay to Bay Motorized Transportation Bogie on Curved Rails

Brief introduction---Bay to Bay Motorized Transportation Bogie on Curved Rails
This kind of rail transfer platformby safety sliding wire which is can running on the straight,"s" or arc-shaped railways
rails, to warehouse to transfer material or equipment between workshops with the crane accessories. This rail transfre
platformis a very popular product in South America market. Our BEFANBY company is the professional manufacturer
of rail transfer platformwith more than 15 years experience in designing and producing.

Working principle----Bay to Bay Motorized Transportation Bogie on Curved Rails
Rail transfer platform is that the safe sliding wire is set in a channel ditched beside the rail, and also can be set on the
ground along the wall. It contacts AC 380V sliding wire directly into the AC electrical control system of the rail transfer
platformto let in start,stop, go forward and backward and so on.The rail transfer platformgets power from the slider
of the safe sliding line which is moved by the cart's running.

Technical Parameters forBay to Bay Motorized Transportation Bogie on Curved Rails

Model		KPC-2t	KPC-20t	KPC-50t	KPC-100t	KPC-150t
Rated Load(t)		2	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	450	550	650	850	1200
Wheel base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(mm)		25	20	20	20	18
Motor Power(kw)		0.8	2.5	5.5	11	15
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.3	5.5	7.6	13.9	26
Recommended Rail Model		P15	P24	P43	QU100	QU100

Application of Bay to Bay Motorized Transportation Bogie on Curved Rails
Our rail transfer platformis suitable for various industries,steel mill, transfer steel products such as steel structure, steel
pipe, steel billets, steel ladle and coil, etc Paper roll plant: transfer paper coil,Painting shops, transfer workpiece into
the painting room, Sand blasting room Other industries: shipbuilding, quarries, warehouses and multi-bay workshops,
etc.
Characters of Bay to Bay Motorized Transportation Bogie on Curved Rails
·Anti-explosion
·Anti-high temperature
·Apply to various occasions
·It has no strict requirement for the construction of the railway
·No limit of running and working hours
·Safe and convenient operation for there is no wire outside the car
·Adjustable speed

Components showof Bay to Bay Motorized Transportation Bogie on Curved Rails
Rail transfer platform is composed of Car frame,wheel,sliding wire,gear reducer, motor,electrical control,etc.

Processing Line


Packing&Delivery

about Us
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltdis a collection of research, design, manufacture,
installation and after-sales service of rail transfer platform, as one of the professional manufacturing company, which
has a modernized management team and excellent staff.And our products gets CE, SASO,SGS,ISO certificate and other
8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico,
USA, Turkey, South Africa, Singapore etc.

Our Certificate show



Our Customer show


Our production application show

Product supply scope

Product Name	Model No.	Power Supply Mode	Load Capacity	Other Items	Usage
Rail Transfer Cart	KPD	Conductor Rail	Load range 1-300ton, can be customized per client demand	Running distance	Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car	KPX	Battery		Using frequency
Motorized Transfer Trolley	KPJ	Cable Drum		Running distance
Busbar Powered Handling Cart	KPC	Busbar		Working shop
Towed Rail Trailer	KP	Tractor	1-100t	Working shop
Steerable Towed Car	BWT	Tractor	Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.	Working environment
Trackless Handling Machine	BWP	Battery		Working path

Customized
·load capacity, table size, and rail gauge can be customized
·opinions:>1>remote radio control(import or made in china) Automatic stop when detecting obstacle or person, limit
switches(to limit travel)
2>Battery type (Free of maintenance Battery, lithium battery, explosion-proof battery, and anti-high temperature
battery)
3>motor(DC motor with brush and DC motor brushless
4> Electrical parts (imported or made in china)
How to choose the suitable transfer platform?
All of our rail transfer platformall customized as client's requirement, for choose the most suitable transfer platform,
please kindly providing the following information:Transfer or handling what material/cargo?What capacity do you need?This transfer platformis running on rails or ground(floor)?Your requirement for table size:length,width and height?How about the running distance?How many working hours in per day?
