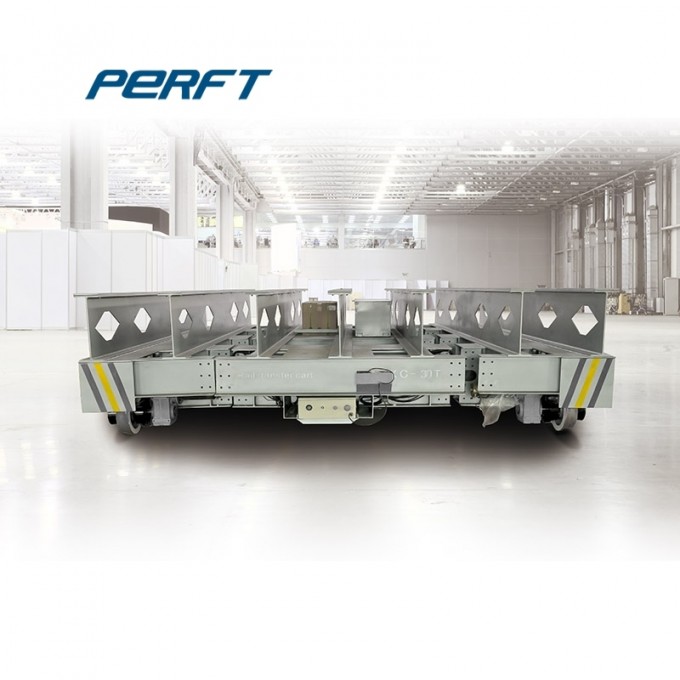

Heavy Load Material Rail Motorised Bogie (BDG-25T)

Heavy Load Material Rail Motorised Bogie (BDG-25T)
1. Introduction of Rail Motorized BogieHenan Perfect Handling Equipment Co., Ltd. is specializing in the design and manufacture of heavy material transport system to solve every material handling requirement.Our product includes Industrial Trailers, Transfer Cars, Motorized Bogie,Electric Railway Transfer Trolley, Battery Operated Transport Trolley, Coil and pipes Carrier Equipment, Ladle Handling Equipment, Hydraulic Lift Table,Turntables and many other specialty items.Our line of Industrial Transfer Carts are designed and manufactured to accommodate the needs of a wide range of industries including Steel, Aluminum, Automotive, Heavy Manufacturing and others. These material handling equipmentare designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.
2. Application ofRail Motorized Bogie
PERFECT heavy motorized transfer bogiesare operating in many shipping lines, stevedores, concrete manufacturers, foundries, steel mills, etc. We have supplied hybrid transfer cartin the world for moving materials inside and outside the plant by electric traction and driving long distances. And also Heavy Load Transfer Bogies are mainly used to solve manoeuvrability problems in tight spaces. Due to all possible steering programs, on either oneor different axles, you can achieve tight turning radious. The propulsion can be either electric for in-plant load carts or batteries for long distances.


3. Parameter of Rail Motorized Bogie

BDGZ SERIES TRANSFER CART TECHNICAL PARAMETER TABLE
Model		KPDZ-2t	KPDZ-5t	KPDZ-10t	KPDZ-16t	KPDZ-20t	KPDZ-25t	KPDZ-30t	KPDZ-40t	KPDZ-50t	KPDZ-63t
Rated Load(t)		2	5	10	16	20	25	30	40	50	63
Table Size(mm)	Length( L)	2000	3500	3600	4000	4000	4500	4500	5000	5500	5600
	Width( W)	1500	2000	2000	2000	2200	2200	2200	2500	2500	2500
	Height( H)	450	450	500	500	550	600	600	650	650	750
Wheel base(mm)		1200	2500	2600	2800	2800	3200	3200	3800	4200	4300
Rail Inner Gauge(mm)		1200	1435	1435	1435	1435	1435	1435	1435	1435	1435
Wheel Diameter(mm)		Ф270	Ф300	Ф300	Ф350	Ф350	Ф400	Ф400	Ф500	Ф500	Ф600
Wheel Quantity		4	4	4	4	4	4	4	4	4	4
Ground Clearance(mm)		50	50	50	50	50	50	50	50	50	75
Running Speed(m/min)		0-25	0-25	0-25	0-20	0-20	0-20	0-20	0-20	0-20	0-20
Motor Power(Kw)		1	1.2	1.6	2	2.2	3	3.5	4	5	6.3
Transformer Power(KVA)		3	5	5	6.8	6.8	6.8	10	10	10	20
Transformer Quantity		1	1	1	1	1	1	1	1	1	1
Running Distance(m)		80	80	80	80	80	80	80	60	50	50
Max Wheel Load(kn)		14.4	25.8	42.6	64.5	77.7	94.5	110.4	142.8	174	221.4
Reference Weight(t)		2.8	3.6	4.2	5.5	5.9	6.5	6.8	7.6	8	10.8
Recommended Rail Model		P15	P18	P18	P24	P24	P38	P38	P43	P43	P50
Notes.1.Load capacity,table size and rail gauge can be customized. 2.Options: a.Remote radio control(imported or made in China);b. Automatic stop when detecting obstacle or person, limit switches(to limit travel); c. Automatic cutting off power on rail; d motor(DC motor with brush and DC motor brushless ; e.Electrical parts(imported or made in China);f.Can be designed to meet special working environment such as high temperature.

4. Company and Customers' Visit
Henan Perfect Handling Equipment Co., Ltd. is specializing in the Design and Manufacture of transport system to solve every material handling requirement.Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items.We design our special transfer cars for all kind of industries. We can manufacture them according to clients' specifications. For example, we can ppare them to be used in rails, with autonomous batteries or for special applications.

5.Other Products We Offer

6.Customization of Rail Motorized Bogie
The material handling vehicle can be designed to travel on steel rail bars or they can be operated directly on the floor of your facility
1Ton to 300 Ton capacity range
Push and Pull operation or completely motorized
Full steer-abilityor controlled direction of motion
Customshaped table size to suit yourapplication
Lifting fixtures available for simple transportation
Fully automated controls, wireless control system, or a fixed pendant
7. Q&A
1.What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
2. What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
3. How can Transfer Carts be customized?
Please tell us:
Whatload or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.
