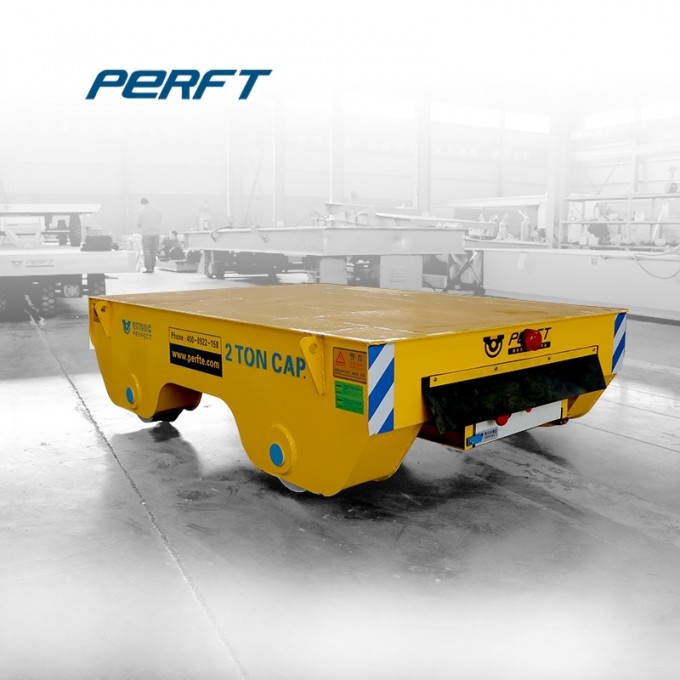

Heavy Material Handling Battery Bogie for New Factory Construction

Heavy material handling battery bogie for new factory construction

1. Working Principle
This electric handling bogie is one kind of self-driven transfer carts, which gets power from the conductive rails/tracks installed on the ground. The power source AC380V is transformed into AC36V safe voltage respectively connected with the two rails. Then the electric handling bogie's wheels transmit the power into the electric control box to control the whole transport bogie for formally working.

2. CustomizedPERFECT is specialized in designing and manufacturing of heavy duty Material Transfer Cart:
Transfer Cart: Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
Rail Cart:Rail transfer cart, Cross-rail transport trolley, Curved rails transfer cart, S shape railway transport cart, L shape track transporter etc.
Industrial Trailer:Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer etc.
Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
Special Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle etc.

3. ApplicationThis kind of electric handling bogie usually be used as one automated transport vehicle for factory transportation to carry various heavy stuff and workpiece. As customers'working environment these transfer carts equipment can be used in high-temperature, anti-explosion or other sever condition with strong bearing capacity. These material handling equipment are more suitable for that high using frequency and long running distance. Normally, the hydraulic lifting device and PLC control system could be added on the motorized handling transfer carts to meet special using condition.

4. Production Process

5. Parameter

Model		BXC-2t	BXC-20t	BXC-50t	BXC-100t	BXC-150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	900	1200
Wheel base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	200	2000
Wheel Diameter(mm)		270	350	500	600	600
Running Speed(m/min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Battery Capacity		180	180	330	440	600
Battery Voltage		24	48	48	72	72
Running Time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for One Charge(km)		6.5	4.8	4	3.8	3.2
Recommended Rail Model		P15	P24	P43	QU100	QU100

6. Our Factory and Our Sale Team
Henan Perfect Handling Equipment Co., Ltd is one well known manufacturer of factory heavy material electric handling equipment for 15 years, which are more and more popular in the international market. We got the CE, ISO, SGS certification, as well as 8 patents for our products. Pursuing the innovation and becoming the leader of heavy industry has been our mission since the day being established.
