360 Degree Free Rotation Transfer Bogie on Cement Floor

360 Degree Free Rotation Transfer Bogie on Cement Floor

Introduction of Free Rotation Transfer Bogie

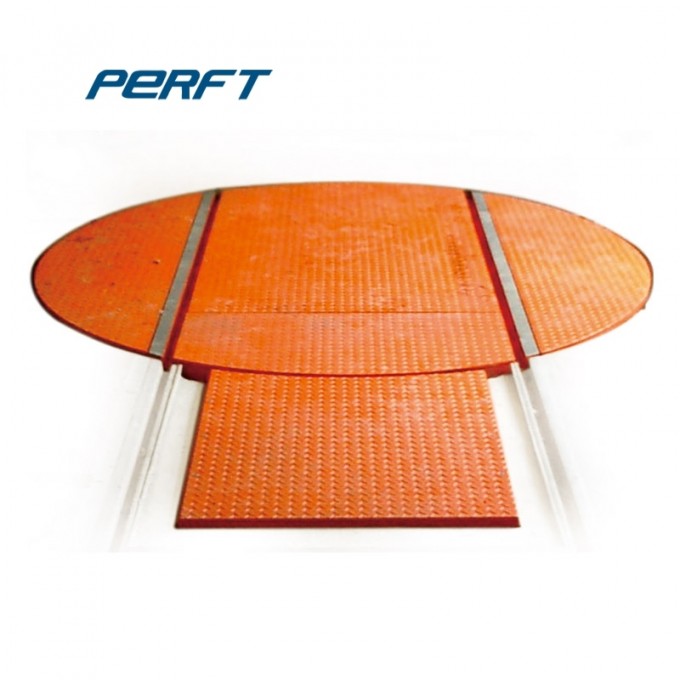

The rotation transferbogiesare designed for crossing rails to turn with 90 degree in warehouse and plants. Its working principle is that there are also rails installed on the turntable, when therail transfer cartruns on the turntable, the turntable can be rotated automatically or manually until pcisely connecting with the destination rail, then thetransfer cartruns on the vertical rail. The turntable is suitable for many occasions,such as ring rails, vertical rails, and crossing rails etc. The turntable system run steadily and has features as high rail jointing accuracy and can meet full automatic electrical operation.


Multi PresentationofFree Rotation Transfer Bogie


Customizable ofFree Rotation Transfer BogieMechanical Options Include:
─ Deck Railings
─ Wood Decking Material
─ Screw-Jack Lift Deck
─ Paint Color (customer specified)
─ Rail Guides
─ Floor Rail
─ End Stops
─ Urethane Wheels (not available on guided carts)
─ Live Axle

Application ofFree Rotation Transfer BogieWe have a wide range of railway guided transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and so on. We can provide the product you want and have a long term cooperation with you!


Details of Free Rotation Transfer Bogie


Parameter ofFree Rotation Transfer Bogie

Model		BXC-2t	BXC-20t	BXC-50t	BXC-100t	BXC-150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	900	1200
Wheel base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	200	2000
Wheel Diameter(mm)		270	350	500	600	600
Running Speed(m/min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Battery Capacity		180	180	330	440	600
Battery Voltage		24	48	48	72	72
Running Time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for One Charge(km)		6.5	4.8	4	3.8	3.2
Recommended Rail Model		P15	P24	P43	QU100	QU100

Packing and ShippingThe bodyof the cart is packed with tarp, the small parts will be packed with wooden cases. According the table size and quantity, the cart would becarefully fixed andtransported by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.



Our Company
We have been specializing in transfer cart manufacture for over 15 years.With advanced equipment,excellent engineers and professional workers, we have got the certificates of CE, SGS, ISO. Our products can be used in industrial,steel,pharmacy,mining and many other lines. So we can assure that we will provide high quality and cost-effective products for you.
