Mobile Cable Powered Rail Motorized Coil Transport Bogie

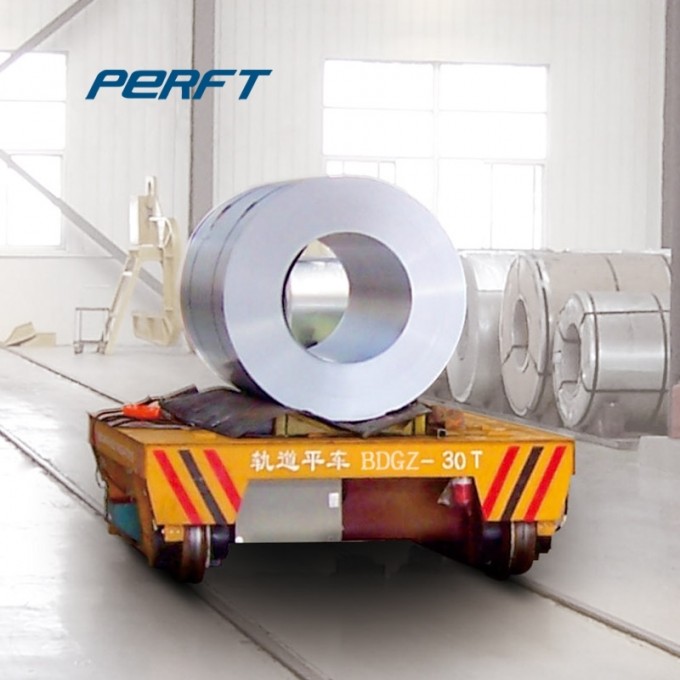

Mobile Cable Powered Rail Motorized Coil Transport Bogie1. Introduction of coil transport bogiePERFECT motorized transport bogies are used to transport steel coils and pipes for metal industry. This coil transfer bogies are designedto be an extremely cost effective, safe and flexible load moving alternative.
The electric transport bogies are manual guide vehicles equipped with specialized drive systems which make it possible to easily, pcisely and safely move up to 200 tons.The coil heavy load transfer cart is sometimes calleda heavy transporter, headless transporter or self-propelled modular transporter.

2. Application of coil transport bogie
Uses of motorized coil transport bogie:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.

3. Using Place of coil transport bogie
PERFECT conceives and manufactures a wide range ofrailway guided transfer carts, battery poweredtrolleys, intelligentself-propelled trolleys, die carts, industrial flat trailers, tiltersand lifting platformsthat operate in manyindustrial fields: metallurgy, manufacture, oil andgas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation,coal industry,paper mills, metalworking, warehouse and many others!

4. Parameter of coil transport bogie

BDGZ SERIES TRANSFER CART TECHNICAL PARAMETER TABLE
Model		KPDZ-2t	KPDZ-5t	KPDZ-10t	KPDZ-16t	KPDZ-20t	KPDZ-25t	KPDZ-30t	KPDZ-40t	KPDZ-50t	KPDZ-63t
Rated Load(t)		2	5	10	16	20	25	30	40	50	63
Table Size(mm)	Length( L)	2000	3500	3600	4000	4000	4500	4500	5000	5500	5600
	Width( W)	1500	2000	2000	2000	2200	2200	2200	2500	2500	2500
	Height( H)	450	450	500	500	550	600	600	650	650	750
Wheel base(mm)		1200	2500	2600	2800	2800	3200	3200	3800	4200	4300
Rail Inner Gauge(mm)		1200	1435	1435	1435	1435	1435	1435	1435	1435	1435
Wheel Diameter(mm)		Ф270	Ф300	Ф300	Ф350	Ф350	Ф400	Ф400	Ф500	Ф500	Ф600
Wheel Quantity		4	4	4	4	4	4	4	4	4	4
Ground Clearance(mm)		50	50	50	50	50	50	50	50	50	75
Running Speed(m/min)		0-25	0-25	0-25	0-20	0-20	0-20	0-20	0-20	0-20	0-20
Motor Power(Kw)		1	1.2	1.6	2	2.2	3	3.5	4	5	6.3
Transformer Power(KVA)		3	5	5	6.8	6.8	6.8	10	10	10	20
Transformer Quantity		1	1	1	1	1	1	1	1	1	1
Running Distance(m)		80	80	80	80	80	80	80	60	50	50
Max Wheel Load(kn)		14.4	25.8	42.6	64.5	77.7	94.5	110.4	142.8	174	221.4
Reference Weight(t)		2.8	3.6	4.2	5.5	5.9	6.5	6.8	7.6	8	10.8
Recommended Rail Model		P15	P18	P18	P24	P24	P38	P38	P43	P43	P50
Notes.1.Load capacity,table size and rail gauge can be customized. 2.Options: a.Remote radio control(imported or made in China);b. Automatic stop when detecting obstacle or person, limit switches(to limit travel); c. Automatic cutting off power on rail; d motor(DC motor with brush and DC motor brushless ; e.Electrical parts(imported or made in China);f.Can be designed to meet special working environment such as high temperature.

5. Advantages of coil transport bogie
--- Low noise It causes low noise level.
--- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
--- Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
--- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
--- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
6. Factory and Customer

7. Packaging and Shipping

8. Q &A
Will A Transfer Cart Be A Good Solution?
A good question to ask since there are many material handling solutions on the market! Which one is the right choice? For starters, transfer carts are moveable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.
What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
