Car Collision Avoidance Systems Auto Bus Accessories Vehicle Anti Collision System

Car collision avoidance systems auto bus accessories vehicle anti collision system

Brief Introduction of Anti Collision Warning System AWS650:
As asophisticated vehicle electric active safety system, AWS is mainly used in highway, urban expssway and other high-grade road. Its main object is assisting the driver to keep in lane and keep distance, avoiding traffic accident caused by land departure; at the same time, reducing the risk of front collision accident caused by driver's distraction, so as to reduce injury.
The product combines image identification, risk estimate and many high technologies; completely compliance with international road condition, traffic laws and driver's habit. When the vehicle passively departure the land due to driver's distraction or fatigue,get too close with front car, or there's other vehicle overtake in short distance, the system will automatically alarm until the driver correct the driving direction or actively control the vehicle distance. The system only has safety reminding function; it will not automatically take measures to intervene driver's operation. Driver should still be responsible for the safety driving.Specification of Anti Collision Warning System:

Controller
Size	100mm *71.5mm *25.5mm
Weight	205g
Color	Black
Housing Material	Aluminum alloy
Input Voltage	DC9V~DC36V
Input Current	220mA (12V)/ 110mA (24V)
Working Temperature	-20ºC-80ºC
Storage Temperature	-40ºC-80ºC

Camera
Sensor	1/3"CCD
Pixel	752(H)*582(V)
Signal Format	PAL
Resolution	700 TVL
Minimum illumination	0.1Lux(Color)/0.001Lux(Black)of F1.2
SNR	48db(Minimum)/54db(Maximum)

Displayer
Size	97mm *55mm *10 mm
Housing Material	Plastic
Display Color	Green

Electrical Characteristics
Input Voltage	DC9V -DC36V
Input Current	400MA(12V) /260MA(24V)
Average power consumption	6W
Signal input high voltage	12V/24V
Signal input low voltage	<0.7V
Signal output high voltage	12V
Signal output Low voltage	0V

Function of Anti Collision Warning System

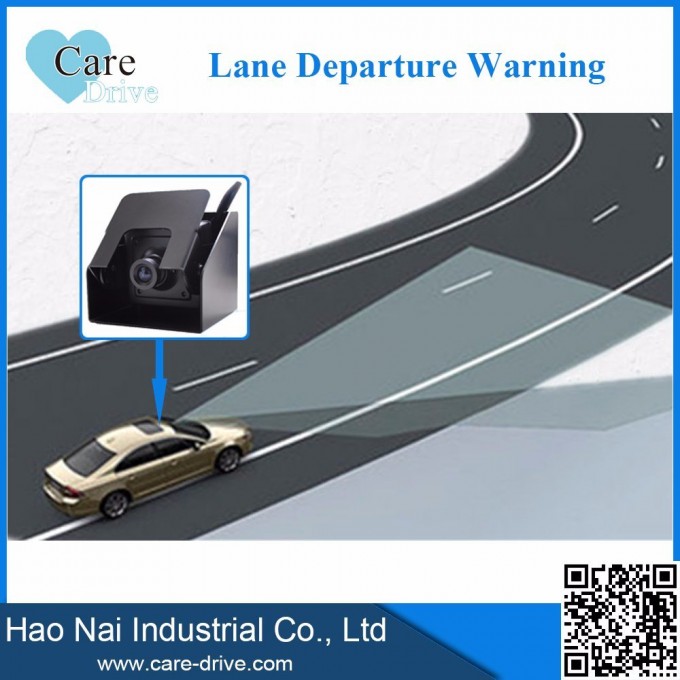

1. Lane Departure Warning (abbr. LDW)
It takes the foresee camera as mainly sensor, detects and trails the lane line upon the machine's visual technology, combining driver's characteristic to judge whether the vehicle has out-lane dangerous, providing sound and lamplight warning for drivers.
When the vehicle is unconsciously departure the driving lane, it will provide the visual and audio alarming for the driver, until the driver redress the driving direction, its purpose is to avoid the accident which caused by the driver's fatigue or distraction to unconsciously departure the lane.2. Forward Collision Warning (abbr. FCW)
It takes the camera as mainly sensor, detects and trails the front vehicle upon machine vision technology, combining driver's characteristic to judge whether the vehicle is too close to front vehicle, or has collision dangerous, providing sound and lamplight warning for drivers.
When the vehicle is too close to the front vehicle or has anti collision danger, it will provide the visual and audio alarming, to warn the drivers take actions to avoid the accident, reduce the accident's lost.

3. Video Output Function
AWS650 can output the landline recognition effect, vehicle recognition effect, vehicle signal and other information by overlaying them to original image through OSD function; enable car video to record directly. Equivalently appciate other secondary function like the high-performance foresee camera, black box, points record and so on.

4. Integrate with Fleet Management Tracking System
AWS650 can be integrated with fleet management tracking system and output warning information to fleet management center for abetter fleet safety management. It can help vehicle fleets to reduce 90% of traffic accidents and assist drivers to form good driving habit.

5. Overspeed Driving Warning
AWS650 will detect the vehicle speed and give alert if the vehicle speed is over the setting parameter. It can help drivers avoid traffic accidents caused by overs peeding driving.

Installation of Anti Collision Warning System
1. Installation Preparation
2. Vehicle Wiring Preparation
3. Camera Installation
4. Debugging
5. Parameter Setting
Application of Anti Collision Warning System
Suitable for all types of 12V/24V vehicles

Packaging &Shipping
Packaging: 1pc packed into acolor box, 20pcs packed into a7-ply brown carton
DHL, Fedex, UPS, TNT, EMS, SEA
DHL: 3-4 working days to arrive
Other expss: 5-7 working days to arrive
EMS: 2-4 weeks to arrive
By sea: 4-6 weeks to arrive

Accepted Payment Method:
30% deposit in advance, 70% balance before shipping
T/T: generally for bulk orders
Paypal and Western Union: for sample orders
L/C: for order amount over US$50,000 only

Other Services:
A. accept OEM and ODM
B. customize logo and package
C. provide various flexible solutions
D. in time technical support and after sales service
E. fast delivery time
F. long quality warranty
G. MOQ: 1pc

Company Information:
Since established in 2000, Hao Nai Industrial Co., Ltd devotes to guide the vehicle industry revolution through computer vision technology. Hao Nai's sophisticated technology brings advanced and safe driving experience to drivers, and provides the world leading vehicle safety management solution for commercial fleet. Hao Nai continues to draw into talents and innovative technology, we cooperate with Beijing Tsinghua University and South China University of Technology and established the vehicle active safety R&D center. Now Hao Nai owns independent R&D center and experienced R&D team, the core technicians have years of development experience on vehicle intelligent electronics and visual technology. In accordance with the demands of the marketplace, Hao Nai have independently developed multiple versions of driver fatigue monitor and anti-collision warning system, which are compatible with different types of vehicles. The well-know brand "CareDrive" under Hao Nai has been ahigh-end brands in worldwide road safety field. After years of effort, CareDrive products have been successfully sold to 150 countries, we have won the trust and support from many well-known customers in different professional field of the world.
