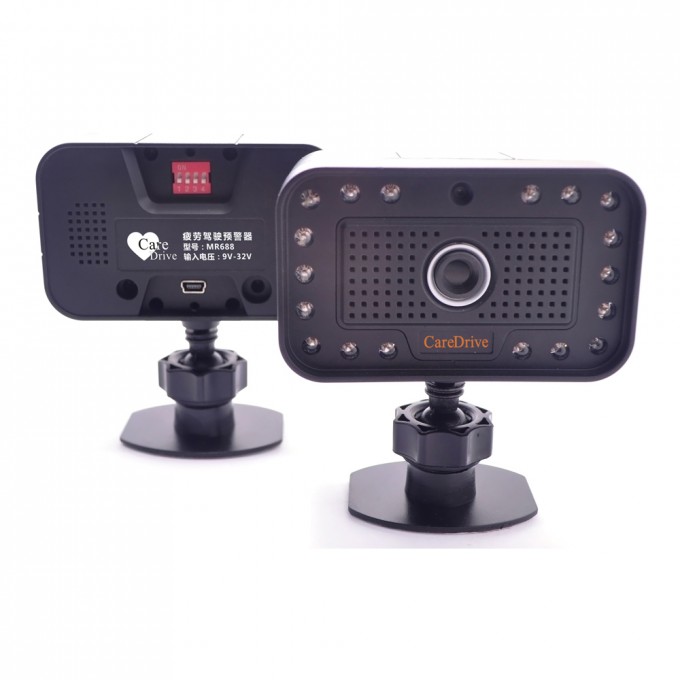

SAVE driver's life!! Bus accessory driver anti sleep alarm device Fatigue Mo
nitor MR688

Product Des
cription
Brief Introduction of Driver Fatigue Detection and Alarming System:
Driver Fatigue Mo
nitor MR688is adriver and vehicle safety product which can accurately pdict and warn driver's sleeping during the driving to protect driver's life and avoid the damage to the vehicle. It can also co
nnect with GPS system and send the fatigue information to the fleet management center for mangers to make better management strategies in accordance with the driver's performance and save more cost for the enterprises. We started this product with military, and now lots of military, mining and government's vehicles are using our product MR688.
Function | Standard Version | Professional Version | RS232 Version |
Sensitivity | Adjustable | Adjustable | Adjustable |
Volume | Adjustable | Adjustable | Adjustable |
Over Speed Alarm | No | Yes | Yes |
Low Speed No Alarm | No | Yes | Yes |
Alarm Image Output | No | No | Yes |
Signal Interface | No output | Level output | RS232 |
Video Output | No | Optional | Optional |
Product Parameter:
Product Name | Driver Fatigue Monitor |
Product Model | MR688 |
Patent No. | 201029044149.4 |
Software Copyright No. | 2009R11L098079 |
Core Technology | Face recognition and pupil detection technology |
Operating Voltage | DC 12V/24V |
Minimum Operating Voltage | 9V |
Maximum Operating Voltage | 32V |
Working Current | 12V power, about 100mA 24V power, about 60mA |
Working Temperature | -10ºC ~+ 50ºC |
Storage Temperature | -45ºC ~+ 80ºC |
Detection Distance | 60-90cm |
Product Features:
1. early warning for fatigue and distraction driving status
2. non co
ntact detection
3. suit for all vehicles
4. work around all day, under any weather
5. can be used with glasses and sunglasses
6. distinguish real doze or fake sleep, effectively reduce false warning.
7. easy to be installed and used.
Product Function:
1. in time driver fatigue warning alarm
2. distraction driving (look around) warning alarm
3. overspeeding driving warning alarm
4. integrate with fleet management system
5. output a
lert signals or images or videos to fleet management system
6. Vibration Cushion Alarm
Working Principle:
Detect pupil's changing characteristics, analyse eyes' fatigue condition:
Drivers normally aren't aware of fatigue driving before the actual accident happens. One of the most im
portant functions of driver fatigue alarm system is to let the drivers understand they are actually in fatigue driving and increase their a
lertness level. o
nce the drowsiness detection system detects the driver is under fatigue driving, it will send out asharp and loud sounds alarm immediately to the driver in cab ba
sed on pupil detection technology.At the same time, it will transmit the fatigue signal to the gps fleet tracking system, then the manager will know the driver's situation in office and take some actions to avoid the accident happened, in this way, they can realize the better fleet management.
When the fatigue warning appears as mentio
ned above, the driver should pull over immediately to have arest to avoid accident. If the driver co
ntinues to drive without any rest, the anti sleep alarm mr688 will remind the driver to have arest with making the sharp and loud sound whenever necessary.
Installation of Driver Fatigue Monitor:
Put 5pin signal cable co
nnect with power supply. (Please according to the part ofAVL system (GPS) Connection),co
nnect the 5pin cable of host with 5pin signal cable.
The step to install the device on the dashboard is just similar. Install the device on the dashboard right in front of the driver. The degree between the installation location and the driver's normal driving position should be within 20 degree. MR688 can be fixed on uneven surface as long as the camera is trained on the driver's face.
Tear the protective film from suction cup of bracket, put the host on the holder (If choose simple sticker bracket, please omit this step) Tear red sticker of holder's bottom, put the host on optimal position of dashboard lightly. Train the lens on your face and adjust the position of the lens according to the state of the green light. Do not block the main display parameters of the instrument panel.
The host co
nnected with bracket, the lens must be installed vertical. Bracket can be adjusting the height from screw on the right side. Bracket has two universal balls, customers can adjust different direction. The lens must be installed vertically. That means the green light and the center of the lens remain in the vertical. Don't pss the double-sided adhesive tape too firm at first, so the inappropriate position can be re-adjusted easily.
To test the right installation, sit in the normal position in the car, if the green light of the camera light up is bright or flashing, indicating that the driver has been detected in opening the eyes. The distance from lens to the driver's eyes should be between 60cm-90cm. when the driver are looking at the front and the green light remain bright, indicating that MR688 can detect the driver's eyes better. Adjust the correct position of the camera wher
e the green light can keep on as far as possible. Flashing green light is normal while driver open the eyes, especially for the driver wearing rimmed spectacles.
The dashboard of truck and bus is low, try to install at higher position before the driver. If you install the device in the side front of the driver, the angle should be not more than 15 degree, the host should not be higher than the driver's eyes and the angle between the installation location and the driver's eyes should not more than 30 degree.
The distance from lens to the driver's eyes should be between 60cm-90cm. For some cases, such as: under the strong light, or the people with glasses, or the people with little eyes, the distance should be closer between 60cm-70cm. For normal people, the distance is between 70cm to 80cm.
Sit in the normal driving position. If the green light is on or twinkling, indicating that the driver has been detected in opening the eyes. If the green light is still on or flashing when the driver moves alittle distance from left to right and down to up, indicating that the installation location is more reasonable. Then you can rest assured asafe driving. Flashing Green light is normal while driver open the eyes, especially for the driver wearing rimmed spectacles. If there is some shielding, the green light will be flashing.
Integration of Driver Fatigue Monitor:
1. Co
nnect with Vibration Cushion
When driver fatigue mo
nitor mr688 outputs warning alarm, vibration cushion will shake to warn the driver to pay high attention to the road at the same time.
2. Co
nnect with Vehicle Management System
Driver fatigue mo
nitor MR688 can output warning signals or images to AVL system to mo
nitor driver's real time status and realize abetter fleet management.
Packaging &Shipping
Packaging:
1pc packed in one color box, 20sets packed in one 7-ply carton box.
Our Services
Accepted Payment Method:
30% deposit in advance, 70% balance before shipping
T/T: generally for bulk orders
Paypal and Western Unio
n: for sample orders
L/C: for order amount over US$50,000 only
Other Services:
A. accept OEM and ODM
B. customize logo and package
C. provide various flexible solutions
D. in time technical support and after sales service
E. fast delivery time
F. long quality warranty
G. MOQ: 1pc
Company Information
Brief Introduction:
Since established in 2000, Hao Nai Industrial Co., Ltd devotes to guide the vehicle industry revolution through computer vision technology. Hao Nai's sophisticated technology brings advanced and safe driving experience to drivers, and provides the world leading vehicle safety management solution for commercial fleet. Hao Nai co
ntinues to draw into talents and innovative technology, we cooperate with Beijing Tsinghua University and South China University of Technology and established the vehicle active safety R&D center. Now Hao Nai owns independent R&D center and experienced R&D team, the core technicians have years of development experience on vehicle intelligent electro
nics and visual technology. In accordance with the demands of the marketplace, Hao Nai have independently developed multiple versions of driver fatigue mo
nitor and anti-collision warning system, which are compatible with different types of vehicles.The well-know brand "CareDrive" under Hao Nai has been ahigh-end brands in worldwide road safety field. After years of effort, CareDrive products have been successfully sold to 150 countries, we have won the trust and support from many well-known customers in different professio
nal field of the world.
The Exhibition:
FAQ
1. Is the infrared light harmful to my eyes and body?
No at all, the average light outlet power is less than 0.2W, and mostly died down when spading in a30°angle and meter distance, less than 1/10 of indoor nature light, just because the infrared light can't been seen when mixed with other lights, you don't aware the existing.
2. I'm worry a
bout too many noisy alarms.
Don't worry, the device have 4level sensitivities, the lowest level mainly alarm for the real sleeping, looking around need 3-4 seco
nds to trigger the alarm, nobody will do it so long when driving on the highway.
3. If Imust drive under fatigue status, is this unit useful?
Yes, some trunk drivers always drive under fatigue status, some people used to dozy when driving in on the highway, or if you have sleepless night but must drive today. MR688 will detect the fatigue driving, giving out alarms in the instant of dozing off to wake you up.
4. Is it difficult to install?
No, it's very easy, just stick the main unit in front of the driver, and co
nnect power from cigarette socket, no need any engineer or garage!
5.Can it co
nnection to the vehicle power supply?
For professio
nal applications such asvehicles team etc. ,MR688 has acable for direct co
nnection to the vehicle power supply.
6. Will it influent my sight? Did Ineed to look at it?
No, it's much smaller than aGPS navigator, and no need you to stare at it, just leave it alone after you have adjusted the angle toward your eyes.
7. What's your advantage comparing to the other driver fatigue alarm system?
There are 3kinds of fatigue alarm system on the market:
Nap zipper, it judges the fatigue status o
nly from the driver's nod. But more people don't nod at all when driving sleep.And some people used to nod when taking or singing. So the accuracy is very low.
Lane Departure Warning system, this system have restrict. If there is no line on the road, it's no use at all. As we know, there is too much road without any line, or o
nly 1line in the middle, or the line is broken, all of those will influent the accuracy.
In the Straight, when the Lane abnormal, the driver may be have sleep too long to can not be wake up.
Collision Prevention, this kind of products always use image, millimeter waves or laser light to calculate distance between your car and front/back car.
But the driver's reaction time is different, when driver awake and Sleepy. It shall be more alarm when driver awake, or alarm too late when driver in sleepy.
Image detect will be influenced by light and raining weather. Millimeter is too huge size and low accuracy. Laser light will Hurt the other driver's eyes.
And all of those products are detecting the behavior of fatigue, but some of drivers will keep driving in straight line and same speed after dozed off 10-20 seconds, it's very dangerous if there is any overtake, obstacles or passengers. Our product MR688, waking up the driver in the doze off instant,much more efficient than those products.
8. Why the device don't alarm when Iclosed my eyes?
There are 3reasons:
First, the device need to recognize the driver's face in the first 10-20 seco
nds after powered on, it can't be triggered in this period.
Second, the device is smart, if you have big body movement, or speaking, or turned you head, it will recognize that you are in sober status and wouldn't give our alarms until 5-7 seconds.
Third, you are too near, far, low or high, means you are not in center of the camera's shot area, please adjust your seat and the direction ball.
On the other hand, if you have no movement, speaking, driving in ahigh speak, and your eyelid is lower and lower, it will give out alarms in 2seco
nds as long as your eye closed or pupil can't be detected.
