Guangzhou Auto Accessories Internal Camera for Bus Truck

Guangzhou auto accessories internal camera for bus truck


Description:
This is ahigh quality Color Dome Camera designed for PAL systems. Using the latest CCD technology, the camera can produce high resolution with little distortion. The camera has awide operation temperature range and is not subject to distortion from magnetic field. With its lightweight and compact size, this camera can be used for monitoring and surveillance.

Cautions:
1.Please ensure that the input voltage range is within the specifications.
2.Please do not place the camera in alocation with atemperature exceeding 50ºC.
3.Do not attempt to service the camera by yourself. Please refer all services to qualified Dealers.

Connection:

Operation procedures:
1. Loosen the lock screws (3), remove the mounting base (1) by rotating clockwise the locking cover (2).
2. Attach the mounting base (1) to the wall or ceiling, wherever you want to install the camera. Locate awall stud or ceiling joint and secure the base by the supplied mounting screws.
3. Connect to the monitor to 12VDC power source, when picture shown up on the monitor
4. Make the ball camera (4) to the suitable position.
5. Fix the ball camera by rotating anti-clockwise locking cover (2) then lock the screw (3)

Model	CC640
Pick up Device	1/3"color CMOS
TV System	PAL
Resolutions	PAL:976H*582V (57)NTSC: 976H*494V (48)
Horizontal Resolution	600TVL
Sensitivity	0 Lux at F1.2 (Infrared LED On)
Scanning System	600TVL
	2:1 Interlace
Synchronization	Internal
Infrared Spectrum	e850nm
S/N Ratio	More than 50 dB, (AGC Off)
Auto Gain Control (AGC)	Auto
White Balance	Auto
Electronic Shutter	Auto
Back Light Compensation	Auto
Infrared LED	10LEDs
Infrared LED Range	10-15m
Video Output	1 Vp-p, 75Ωcomposite, BNCx1
Audio Output	N/A
Mirror	N/A
Gamma Ratio	0.45
Auto-iris Lens Control	N/A
Lens	F2.8mm Standard Lens
Exterior Focus Adjustment	N/A
Lens Mount	M12XP0.5mm Thread
Pan Adjusting	0-360°
Tilt Adjusting	0-40°
Power Supply	12V DC ±10%, ø2.1mm DC Jack
Power Consumption	150mA
Dimensions (ø xH)	83*62.5 *57.3mm
Net Weight	300g
Weatherproof/Water Proof	IP66
Operating Temperature	-20°C to +60°C

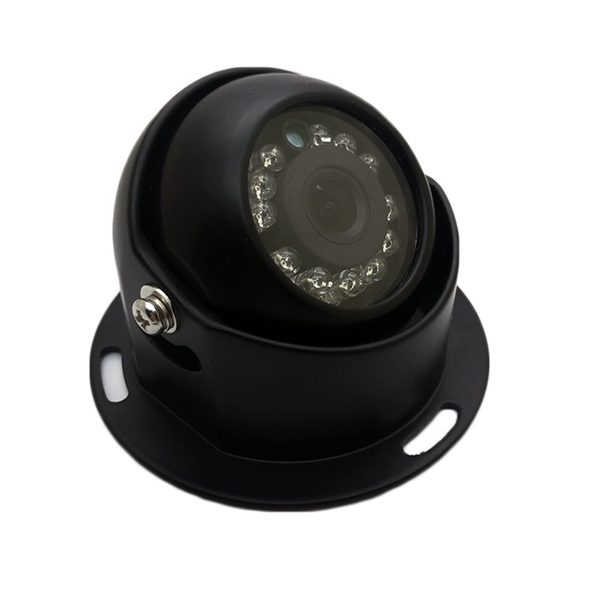

Product Pictures:


Shipping:
DHL, Fedex, UPS, TNT, EMS, SEA
DHL: 3-4 working days to arrive
Other expss: 5-7 working days to arrive
EMS: 2-4 weeks to arrive
By sea: 4-6 weeks to arrive



Our Services
Accepted Payment Method:
30% deposit in advance, 70% balance before shipping
T/T: generally for bulk orders
Paypal and Western Union: for sample orders
L/C: for order amount over US$50,000 only

Other Services:
A. accept OEM and ODM
B. customize logo and package
C. provide various flexible solutions
D. in time technical support and after sales service
E. fast delivery time
F. long quality warranty
G. MOQ: 1pc
