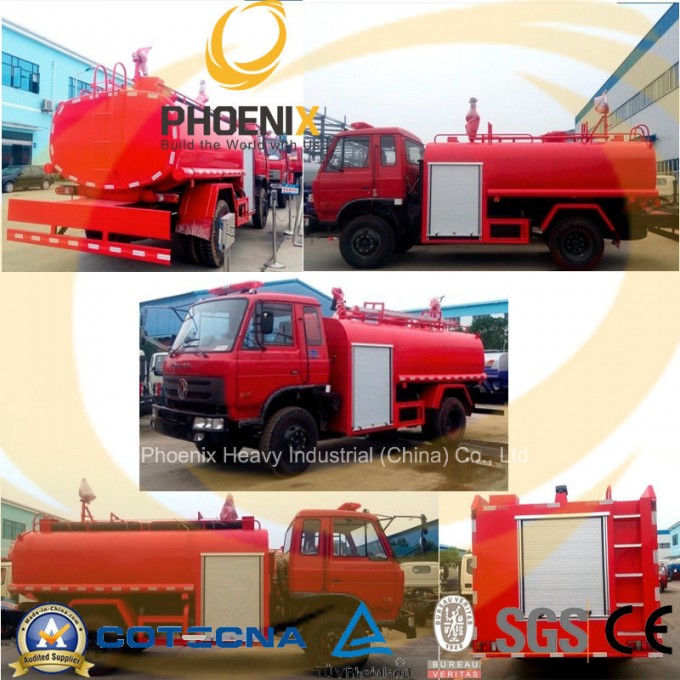

3000L Dry Powder Fire Fighting Truck with Dongfeng Chassis

4x2 LHD 1600Gallon Dongfeng Water Tank Fire Truck
Chassis brand & model: DONGFENG, EQ1141KJ
Engine: Dongfeng Cummins Engine ISBE185 30
Wheelbase: 4500mm
Drive traction: LHD/RHD, 4x2
Dry powder tank Volume: 3000L

Features:
1. fire truck Main equipped:

1.fire truck chassis constitute cab, engine, gear box, steering wheel,beam,tyre,axles,etc.
2.Fire truck upper body with water/foam tank, fire pump,fire monitor,pipe,etc.
3.fire truck with Water fire fighting tank and foam fire fighting tank .or water fire fighting tank.
4.fire truck with fire pump is normal pssure or middle-low pssure, made in China or imported.
5.fire truck with fire monitor is controlled by Manual or Electric.

2.fire truck series:

fire turck capacity : 2000L- 25000L
fire truck drive type: 4x2,4x4,6x4, 6x6, 8x4
fire truck tank material: carbon steel, stainless steel, PE.
fire truck hand drive type: left hand drive , right hand drive

Dongfeng 153 powder fire fighting truck
Chassis model		EQ1141KJ	Overall dimension	7800×2500×3330(mm)
Gross weight		13825(Kg)	Approach/ departure angle	25/12(°)
Rated weight		3000(Kg)	F/R overhang	1205/2095(mm)
Curb weight		10600(Kg)	Max speed	90(km/h)
Engine		ISBE185 30
Displacement		5900ml	Power	136(kw)
Manufacturer		Dongfeng
Emission standard		Euro 4
Axle no		2	Front track	1940/1860(mm)
Wheelbase		4500	Rear track	1860(mm)
Tyre no		6	Tyre specification	10.00-20,10.00R20
Fuel		Diesel	Spring leaf no	8/10+8
Axle load		4148/9677	Cabin seat	3
Dry powder tank volume		3000Liters	Dry powder tank no	2
Dry powder tank dimension		(D×h)1400×1000mm
Feature	1, Composed by tank, pump room, equipment boxes, power output and transmission system, piping system, electrical system, etc.
	2, fire engines use double row cabin seat, broadminded, more crew, can allow six to eight people. Fire truck can be fire in March, far range, strong fire fighting capacity.
	3, options in the atmospheric pssure fire pump, low pssure fire pump, high and low pssure fire pump.
	4, car inside and outside is made of high quality steel, high strength aluminum alloy profiles, skin are made of corrugated aluminum plate overall design multi-channel washboard vats.
	5, equipment compartments within the outer frame is made of high quality carbon steel plate, high strength aluminum alloy profile is used for skeleton, using capacitor lap structure design. Interior trim panels made of pattern aluminum plate surface anodic oxidation treatment, strong and durable. In terms of structure, equipment load layout reasonable, equipment use more convenient, special fixture fixture equipment store more solid.
	6 compartments book door is made of high quality aluminum alloy design and production, equipment, opening and closing flexible, low noise, good sealing, good appearance.
	7, pump room set up water pump system, various kinds of instrument, indicator light, gauge, pssure gauge, vacuum gauge, etc.
