6X4 340HP Saic Iveco Hongyan Genlyon Dump Truck (CQ3254HTG364)

Saic Hongyan Genlyon dump truck, Italy advanced techonology

We are a leading manufacturer of 30t-40t genlyon dump truck, also named tipper truck and dumper. We can provide customers all kinds of dump truck with competitive price and high quality, We can also design for different kinds of genlyon dump truck, Following is the dump truck pictures, any enquiry, please feel free to contact us.

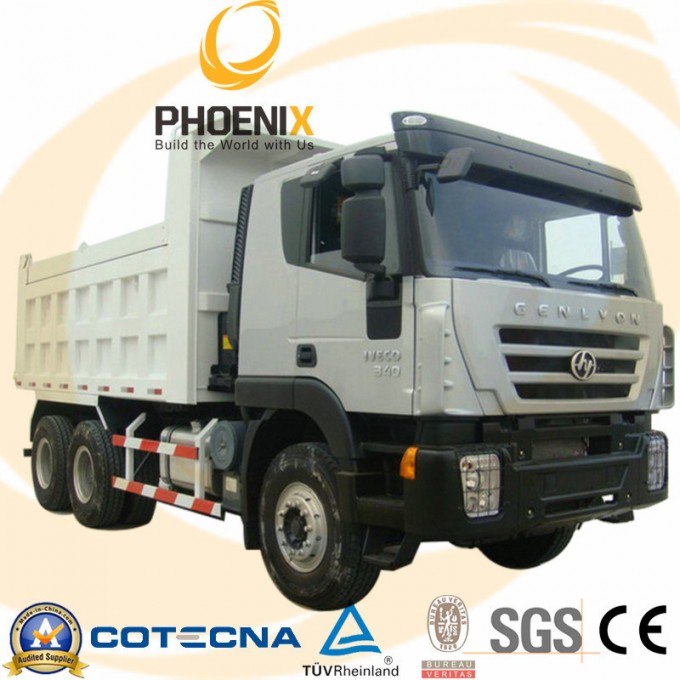

340HP 6X4 Hongyan IVECO Dump Truck with C100 Cabin
Main Specifications:
Engine: Cursor9 Engine (IVECO Technology)
Rated Power: 340HP
Drive Type: 6×4/LHD
Cabin Type: Genlyon C100 flat roof with one berth
C100 Cabin Configuration:
Cabin electrical tilt(for semi-trailer only), Automatic air condition, driver machinery seat, passenger fixed seat, MP3 player+radio. Cab mechanical absorber suspension, manual mirror without heated, CAN BUS system.
Genlyon (Jie lion) heavy truck driving comfort, safety, reliability, economy and electronic level reached domestic leading level.

Chassis Model	CQ3254HTG, 6x4 Dump chassis
Vehicle main dimension	Overall dimension(LxWxH)mm	8115× 2500× 3510
	wheel base(mm)	3600+1350
	wheel track(front/rear)(mm)	2006/1850/1850
	Overhang(front/rear)(mm)	1435/1730
	Approach/Departure angle	25/19
Weight in KGS	GVW	25000
	Curb weight	12010
	Loading capacity	12860
	Front axles loading capacity	Forging Press I-Shaped Axle, Capacity: 7000 kg
	Rear axles loading capacity	Double Reduction, with Differential Lock, 18000 kg
Max driving speed(km/h)	90
Engine	Brand	SFH
	Model	C9 340
	Type	Inline six-cylinder, water-cooled, four stroke, turbocharged and intercooled, electronically controlled fuel injection pump fuel supply rate
	(PS)KW	(340)250
	Maximum torque	1300Nm @ 1200/1600rpm
	Emission standard	Europe III
