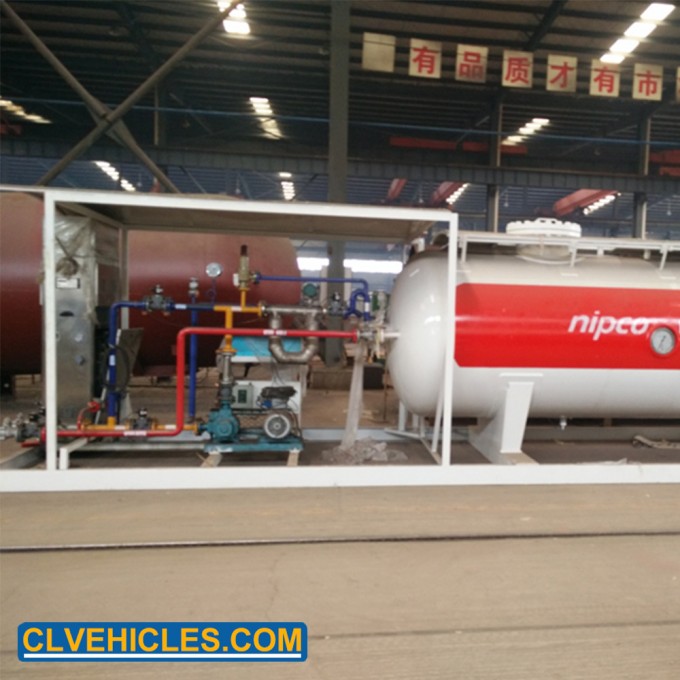

| 3.99T(10M3)LPG storage tank | |||||||
| Filling gas | LPG (propane) | ||||||
| Design Specific Gravity | 0.42 Kg/L | ||||||
| capacity | 10M3 | ||||||
| External Dimensions (length*width*height) | 5260*1620*2200mm | ||||||
| Tank dimension (length*diameter) | L5260*D1600mm | ||||||
| tank weight (nominal) | 2950kg | ||||||
| max payload weight | 3990kg | ||||||
| tank material | Q345R | ||||||
| Tank body design thickness | 8.53mm | ||||||
| End cover design thickness | 8.51mm | ||||||
| design temperature | 500C | ||||||
| working temperature | -20~500C | ||||||
| Corrosion allowance | 1.0 mm | ||||||
| design pressure | 1.77 MPa | ||||||
| Hydraulic test pressure | 2.22 MPa | ||||||
| leak test pressure | 1.77 MPa | ||||||
| Heat treatment type | Wholly get rid of tress | ||||||
| Main parts specification | |||||||
| Liquid level meter | Type | UZFAL-2.5FM | |||||
| Model | Magnetic level gauge | ||||||
| Nominal pressure | PN2.5Mpa | ||||||
| Surveying range | 50~2300mm | ||||||
| Precision | 2.5Grade | ||||||
| Safe valve | Type | A42F-2.5-50 | |||||
| Model | Inner full lift | ||||||
| Nominal pressure | PN2.5 MPa | ||||||
| Nominal diameter | DN50mm | ||||||
| Opening pressure | 1.68-1.76 MPa | ||||||
| Closing pressure | 1.51~1.59MPa | ||||||
| Complete opening pressure | <2.12 MPa | ||||||
| Loading and unloading device | Model | Quick tie-in | |||||
| Nominal Diameter | Inlet Gas phase | DN50mm | |||||
| Outlet gas phase | DN50mm | ||||||
| Drain outlet phase | DN50mm | ||||||
| Inlet Liquid phase | DN50mm | ||||||
| outlet Liquid phase | DN50mm | ||||||
| Pressure meter | YN-100T | ||||||
| Temperature gauge | WTQ-280 | ||||||
| Cut-off valve | J41N-40 | Normal pressure | PN2.5 MPa | ||||
| Normal diameter | DN50MM | ||||||
| DN32MM | |||||||
| DN25MM | |||||||
| DN20MM | |||||||
| Safety valve of pipe | Type | A21F-25 | |||||
| Normal pressure | PN2.5 MPa | ||||||
| Normal diameter | DN15MM | ||||||
| Security reflux valve | Type | AH42F-25 | |||||
| Normal pressure | PN2.5 MPa | ||||||
| Normal diameter | DN25MM | ||||||
| Back pressure valve | Type | H42N-40 | |||||
| Normal pressure | PN4 MPa | ||||||
| Normal diameter | DN50MM | ||||||
| Discharging pipe | Length | 4M | |||||
| Normal diameter | DN50/DN25MM | ||||||
| Shock-absorbing pipe | Length | 500MM | |||||
| Normal diameter | DN50MM | ||||||
| Flange | Normal pressure | PN2.5 MPa | |||||
| Normal diameter | DN65MM | ||||||
| DN50MM | |||||||
| DN32MM | |||||||
| DN25MM | |||||||
| DN15MM | |||||||
| Lpg gas pump(YQB15-5) | Flow (m³/h) | 15.5 | |||||
| Inletpressure (MPa) | ≤2.0 | ||||||
| outletpressure difference(Mpa | 0.5 | ||||||
| Pump rotate speed (r/min) | 780 | ||||||
| motor power (KW) | 5.5 | ||||||
| Inlet aperture (mm) | 50 | ||||||
| Outlet aperture (mm) | 50 | ||||||
| Temperature rangeºC | -40~40 | ||||||
| Weight(kg) | 108 | ||||||
| Explosive-proof motor | 7.5HP(5.5KW), Explosive Proof, | ||||||
| Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable | |||||||
| LPG cylinder filling machine | Model | BSC-150 | |||||
| Electricity voltage V | AC220 | ||||||
| Power(w) | 40 | ||||||
| Weighting scale | Can fill 0.5kg to 150kg LPG cylinde | ||||||
| Measurement Precision | ±0.5% | ||||||
| Rated Working Pressure | 1.6Mpa | ||||||
| Temperature rangeºC | -40~40 | ||||||
| Anti-explosion Rate | Exhibit II BT4 | ||||||
ChengLi Special Automobile Co.,Ltd, appointed by the Ministry of Industry and Information Technology of China, is one of the biggest special truck manufacturer in China.
1.We maintain a long and interactive cooperation relationship with our chassis suppliers, such as DONGFENG, FAW, SINOTRUK, FORLAND and etc;
2.Capacity of production of more than 300 kinds of special trucks and semi-trailers, higher standard is always what we pursuit;
3.Exportation to more than 68 countries, such as Africa, South-east Asia, Australia and etc, reliability and good quality are our key points to gain our customers' reputation.
Our Service
1. Special Truck Manufacturing: Dump Truck, Sewage Suction Truck, LED Advertising Truck, Ice Cream Truck, Refrigerator Truck ...
2. Pressure Vessel Manufacturing: LPG,Liquid Ammonia,Dimethyl ether,Isobutane,Propylene
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you receive the goods, test them, and give us a feedback.If you have any questions , contact with us, we will provide technique solutions for you.
FAQ
Q1: What is your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF
Q3. How about your delivery time?
A: Generally, it will take about 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the customer’s requirements?
A: Yes, we can produce by your requirements or technical drawings.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
