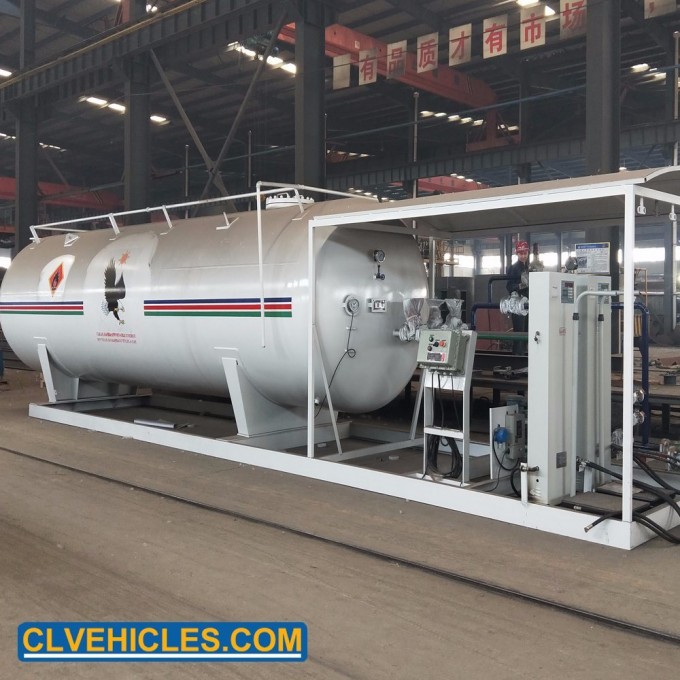

25cbm Mobile LPG Gas Filling Skid Station 25000L LPG Propane Tank Station

25m3 LPG Skid Station 25,000Liter LPG Filling Station 25CBM LPG Gas Tank Station

25CBM LPG Skid Station LPG Propane Station 25,000Liters LPG Gas Tank Filling Station with LPG Dispenser 25cbm LPG Filling Plant 25M3 LPG Mobile Gas Filling Station 25CBM LPG Cooking Gas Station For Sale 25m3 LPG Filling Station 25m3 Cooking Gas Cylinder LPG Skid Station for Nigeria.
LPG Filling Plant 25000liters 25m3 LPG Gas Cylinder Filling Station.

LPG skid station is deisnged and built to work at any site without any connections or civil works.It contains LPG tank, LPG dispenser/ LPG filling scale, LPG pump, Control box,Leakage detection,water cooling system, level meter and valves as complete set on the skid, available for filling the LPG vehicles and LPG cooking/camping cylinder.
Applications:LPG tank gas station (also calledlpg cylinder filling station ,lpg skid station ,lpg gas station ,lpg station , filling gas plant ,gas plant ,cooking gas refill plant , cooking gas station ,propane gas filling station ,propane refilling station , )is used to be a mobile gas stationto refill cylinders or cars after equipped with gas dispenser, LPG gas pump.
The LPG tank material uses Q345R steel for high pressure tanker, which is anti-corrosive and keeps a good stability at low or high temperature.
LPG tanks are basically equipped with safety valve, emergency shut-off valve, thermometer, pressure gauge for the safety use.

Competitive Advantage:1.Our LPG tanker truck is made of Q345R steel which is specialized for pressure vessel 100% X-ray inspection
2.Emergency shut off valve fore safety
3.LPG dispenser can refill cylinder or cars


LPG Skid Station Technicalparameters:

25M3/ 25CBMLPG TANK DIMENSIONS
Volume of Tank			25CBM
Filling Weight			9975 kg
Tank Weight			5970 kg
Thickness of Shell (mm)			12mm
Thickness of Endplate (mm)			12mm
Tank Diameter (mm)			2100 mm
Tank Dimensions (mm) (length x width x height)			7594 x 2124x 2714mm
Material of Tank and Main Pressure Parts			Carbon Steel Q345R
Filling Medium			Liquefied Petroleum Gas ( Propane)
Design Pressure			1.77 MPa
Corrosion Allowance			1 mm
Medium Density			500 kg/ M3
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Main parts of LPG Tank
Item		Specification			Quantity
DischargePipe		DN80			1
InflowPipe		DN80			1
Outlet		DN50			1
Gas phase balance pipes		DN50			2
Manhole		DN450			1
Drain Hole		DN50			1
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below.
LPG Skid Part list
Item	Model Number			Quantity(PCS)
LPG Tanker	25CBM			1
LPG Filling scale	/			1
Fillingpump(Chinese Brand)	/			1
Motor(Chinese Brand)	/			1
Cut-off Valve	J41N-40 DN50			25

LPG Tank Workshop Production:


Related Pressure Vesssel LPG Products:

For more LPG Skid Stationinformation, please feel free to contact meor send an inquiry to me:

　　ChengLi Special Automobile Co.,Ltd, appointed by the Ministry of Industry and Information Technology of China, is one of the biggest special truck manufacturer in China.

　　1.We maintain a long and interactive cooperation relationship with our chassis suppliers, such as DONGFENG, FAW, SINOTRUK, FORLAND and etc;

　　2.Capacity of production of more than 300 kinds of special trucks and semi-trailers, higher standard is always what we pursuit;

　　3.Exportation to more than 68 countries, such as Africa, South-east Asia, Australia and etc, reliability and good quality are our key points to gain our customers' reputation.

　　Our Service

　　1. Special Truck Manufacturing: Dump Truck, Sewage Suction Truck, LED Advertising Truck, Ice Cream Truck, Refrigerator Truck ...

　　2. Pressure Vessel Manufacturing: LPG,Liquid Ammonia,Dimethyl ether,Isobutane,Propylene

　　3. We will reply you for your inquiry in 24 hours.

　　4. After sending, we will track the products for you once every two days, until you get the products. When you receive the goods, test them, and give us a feedback.If you have any questions , contact with us, we will provide technique solutions for you.

　　FAQ

　　Q1: What is your terms of payment?

　　A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.

　　Q2. What is your terms of delivery?

　　A: FOB, CFR, CIF

　　Q3. How about your delivery time?

　　A: Generally, it will take about 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

　　Q4. Can you produce according to the customer’s requirements?

　　A: Yes, we can produce by your requirements or technical drawings.

　　Q5. Do you test all your goods before delivery?

　　A: Yes, we have 100% test before delivery

　　Q6: How do you make our business long-term and good relationship?

　　A:1. We keep good quality and competitive price to ensure our customers benefit ;

　　2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
