Detailed Description

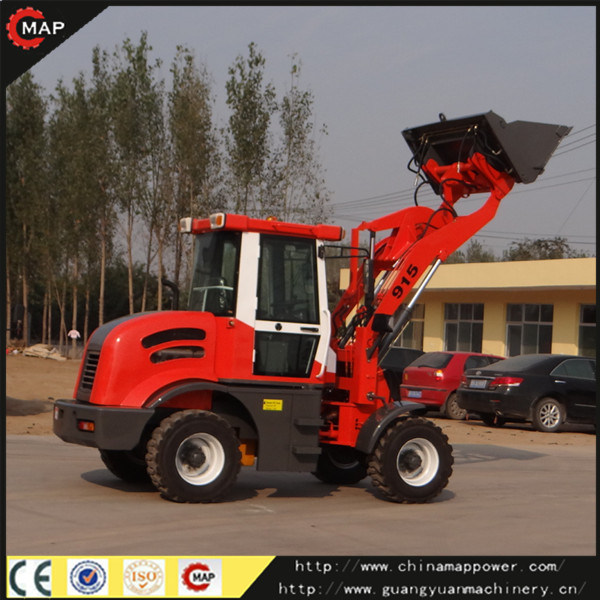

1.5ton Hydraulic wheel loader with CE Certificate
(1) Rops and Fops (The cabin made by Double-layer 1.4 mm steel plate, with strong steel f
rames inside )
(2) E 3 approved glass with EU certification.
(3) The whole chassis is same as 915. The wider arm and the big hydrauic oil lifting and dumping cylinder.
(4) Steering pumps, priority valve ,relief valve and other hydraulic parts are best quality made in China
(5) Wheel loader with CE Certificate
(6) Euro iii Engine
(7) Multi-function
(8) Wheel loader with Joystick operation .Smooth operation.
(9) Wheel loader with Quick Hitch Or Europe quick hitch
| Overall Dimension |
| 1 | Length(with bucket on ground) | 4900(mm) |
| 2. | Width(to outside of wheels) | 1830(mm) |
| 3 | Bucket width | 1700(mm) |
| 4 | Height(To the top of the cab) | 26500(mm) |
| 5 | Wheel base | 2060(mm) |
| 6 | Tread | 1400(mm) |
| 7 | Min. ground clearance | 210(mm) |
| Main Technical Specification |
| 1 | Rated load | 1500(Kg) |
| 2 | Operating weight | 3200KG |
| 3 | Rated bucket capacity | 0.5 (CBM) |
| 4 | Bucket type | Heavy-duty bolt teeth |
| 5 | Max. breakout force | 36kN |
| 6 | Max. dump clearance | 2650(mm) |
| 7 | Min. turning radius | 4500mm |
| 8 | Driving system | Hydraulic converter |
| 9 | Traveling speed(Km/h) | 2 forward and 2 reverse |
| (1) 1st gear forward | 5.75 |
| (2) 2nd gear forward | 23.86 |
| (3) 1st gear reverse 5.85 | 5.85 |
| (3) 2nd gear reverse | 24 |
| Diesel engine |
| 1 | Model | A498 BT1 EURO 3 |
| 2 | Type | In-line arrangement. Water cooling |
| 3 | Rated output | 37 (kW) |
| 4 | Inter-bore of cylinder/stroke | 95 (mm) |
| 5 | Rated speed | 2300(r/min) |
| 6 | Max. Torque | 275(N.M) |
| 7 | Starting type | Electric |
| 8 | Min. fuel consumption | 230(g/Kw.h) |
| 9 | Net weight | 240(kg) |
| Transmission System |
| Torque Converter |
| 1 | Model | YJ240 |
| 2 | Type | Fixed-spindle power shift |
| 3 | Cooling type | Pressure oil circulating |
| Transmission case |
| 1 | Model | MAP |
| 2 | Type | Power shift, spur gear constantly in mesh |
| 3 | Gear shift position | 2 Forward and 2 reverse gears |
| Axle and Tire |
| 1 | Type of main reducer | spiral bevel gear, single stage |
| 2 | Size of tire | 12-16.5 |
| Brake system |
| 1 | Service brake | 4 wheel hydraulic brake |
| 2 | Parking brake | Hand operated |
| Steering System |
| 1 | Type | Middle articulated frame with hydraulic power steering |
