Detailed Description
Mini hydraulic dumper FCY-20 Full seal cabin type
Rated Loading Weight: 2000kg
It can used as a transport dumper, loaders forklifts and other functions. To achieve a multi-purpose tool. It is the world;s most versatile co
nstruction machinery .
It is hydraulically operated,reliable,flexible and light weight ,compact size,low fuel co
nsumption .
Bucket Capacity 1.00cbm
Wheel ba
se: 1280MM
Engine Model: 385
3 cylinder, 4-stroke, water cooled, in line type
Rated power: 30kwHP/2200RPM
| SITE DUMPER SELF LOADING | Main Specifications |
| DUMPER MODEL | FCY-20S |
| Engine details | Model | KM385 |
| Engine Type | In-line, water-cooled, 3
cylinders, diesel engine |
| Rated Power | 20kw |
| Rated Speed | 2200r/min |
| Hydraulic | Tipping and steering |
| Hydrualic pump | Gear Pump |
| Hydraulic pssure | 16MPA |
| Bucket | Bucket Capacity | 0.8m³ |
| Rated Loading Weight | 2000kg |
| Operating Weight | 2300kg |
| Dimensions | Overall Length | 3950mm |
| Overall Height | 2550mm |
| Overall Width | 1950mm |
| Wheel base | 1360mm |
| Tread | 1960mm |
| Minimum turn radius | 4000mm |
| Fuel tank | Fuel tank | 50L |
| Hydraulic oil tank | 50L |
| Water tank | 10.5L |
| Tire | Front tire: 8.25/16 | Rear Tire: 8.25/16 |

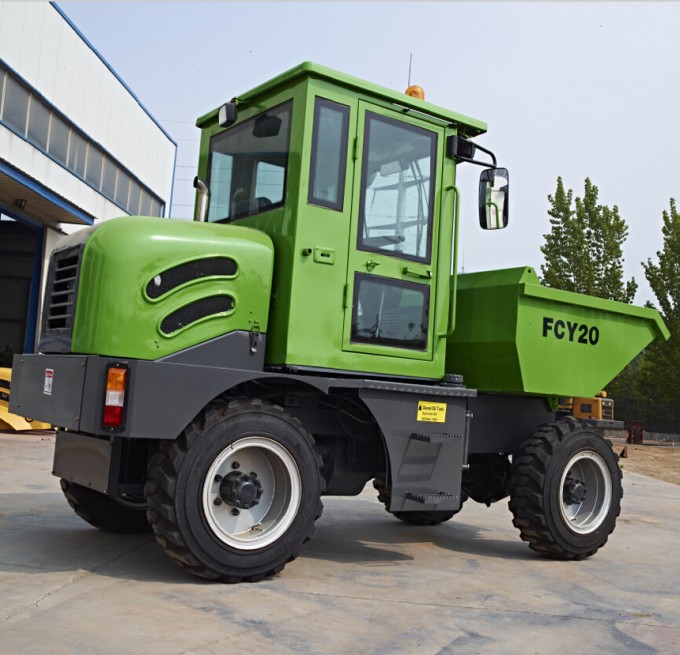

Product Image
