High Speed Passenger Elevator with Small Machine Room Residential Series

Small Machine Room Passenger Elevator
Saving Up to 50% Area of Machine room
Apart from the effective andintellectualcontrolsystem, the small machine roomelevator also applies small traction machine and thin control cabinet design; machine room could be smallerandcompact.
Machine room is onlyanextension of the well. It is convenient in construction and low in cost. Theapplication of compact gearless traction machineleavesa larger space for machine room.

Main parameter
Name of the equipment:	computerized modularized VVVF controlled passenger lift / residential lift
Lift style:	BMEV3.0
Stops:	all doors face the same direction
base floor:	the first floor
Main configuration
Operating system:	fully computerized and elective manner
Control system:	Modularized and fully computerized control system; serial link communication system.
Driving system:	the new type of BESTER alternating current variable frequency and voltage driving system with stepless (infinitely) variable speed
Door operating system:	BESTER door operating system with the function of variable frequency
The location of traction machine:	inside the machine room at the top of the hoistway
Devices of landing door
Material of landing doors:	hairline finished stainless steel for the first floor, and high quality spray painted steel plate for other floors (just for reference)
Material of landing door jambs:	hairline finished stainless steel for the first floor, and high quality spray painted steel plate for other floors (just for reference)
Configuration of landing door jambs:	standard miniature landing door jambs
Display unit of landing door:	adopting the advanced BESTER technology, -the digital display of the car location and running direction in the way of arrowhead (↑↓)
Hall call device:	adopting the advanced BESTER technology, -the cover plate is made of hair line finished stainless steel; micro button; LED dot-matrix display

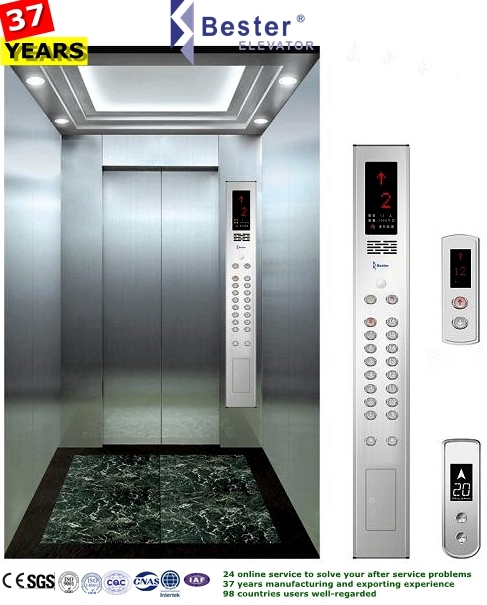

Devices of car
Decoration of car walls:	high quality spray painted steel plate/ hair line finished stainless steel (just for reference)
Decoration of car ceiling:	in a standard mode
Car platform:	abrasion-proof plastic floorboard
Material of car door:	high quality spray painted steel plate/ hair line finished stainless steel (just for reference)
Lighting:	special light which is energy-saving and has high efficiency; sunlight illumination
Ventilating facilities:	air blower with micro noisy
Communication facilities:	concealed interphone
Inspection facilities:	under the car operating box
Display unit inside the car:	adopting the advanced BESTER technology, -the digital display of the car location and running direction in the way of arrowhead (↑↓)
Hall call device inside the car:	adopting the advanced BESTER technology, -the coverplate is made of hair line finished stainless steel; micro button; LED dot-matrix display
The way of opening:	2 panel center-opening door; 2P-CO.

Mainfunction

1	Inspectionoperation	29	Overspeedprotection
2	Slowspeedrunning	30	Contactprotectionforbrakeswitches
3	Automaticdooropeningtimeadjustment	31	Interphonecommunication
4	Fullloadbypass	32	Wheelingprotection
5	Automaticturnofflightingandfun	33	Alarmbell
6	Automaticreturntohomelanding	34	Emergencylighting
7	Doorre-closing	35	Levelswitchprotection
8	Errorrecording	36	Falsecallcanceling
9	Hoistwayselflearning	37	Automaticreversalcallcanceling
10	Automaticdooropening	38	Floordisplaydirectionalsetup
11	Attendantservice	39	Isolaterunning
12	Bypassoperation	40	Dotmatrixfloorindicator
13	Automaticcorrectionoffloorpositionsignal	41	Rollingdisplayofrunningdirection
14	Liftlocking	42	CANcommunicationprotection
15	Protectionofdoorlockupoutsidedooorarea	43	Arrivalgong
16	Infraredlightcurtainprotection	44	Emergencyreturnincaseoffire
17	Overloadprotection	45	Maincontrolprotection
18	Reversalruningprotection	46	MaincontrolCPUWDTprotection
19	Anti-skipprotection	47	Discretionalsetupofservicefloor
20	Antiterminalswitchesprotection	48	Testrunning
21	Anti-terminaloverrunningprotection	49	Clockcontrol
22	Phraseprotection	50	Directlanding
23	Contactorprotection	51	Loadweightingdevice
24	Failureanalysisofshaftselflearn	52	Fullcollectivecontrol
25	Motortemperatureprotection	53	Dooropeningbutton(external)
26	Dooropeningfailureprotection	54	Dooropeningbutton(internal)
27	Protectionfordoorlockshortcircuit	55	Firerunningfunction
28	Doorlockfailureforbrakeswitches	56	camera function in the car

Civil parameter

Small machine roompassengerlift specifications
No.of persons	Rated capacity (kg)	Rated speed(m/s)	Carnet size	Door net size(DW*DH)mm	Shaftinsidedimension			Machineroomsize	Max traveling height(m)
			W*D(mm)	2P centeropening	W*D(mm)	Pitdepth	OH	W*D*H(mm)
6	450	1.0	1200*1000	700*2100	1750*1620	1500	4400	1750*1620*2500	45
8	630	1.0	1400*1100	800*2100	2000*1720	1500	4400	2000*1720*2500	45
		1.6/1.75				1600	4500		96
10	800	1.0	1400*1350	800*2100	2000*2000	1500	4400	2000*2000*2500	45
		1.6/1.75				1600	4500		96
		2.0				1800	4900		120
		2.5				2000	5100		150
13	1000	1.0	1600*1500	900*2100	2200*2150	1500	4400	2200*2150*2500	45
		1.6/1.75				1600	4500		96
		2.0				1800	4900		120
		2.5				2000	5100		150
		3.0				2600	5600		150
		3.5				3100	5950		180
		4.0				3850	6350		180
15	1150	1.0	1700*1500	1000*2100	2300*2200	1500	4400	2300*2120*2500	45
		1.6/1.75				1700	4500		96
		2.0				1800	4900		120
		2.5				2000	5100		150
		3.0				2600	5600		150
		3.5				3100	5950		180
		4.0				3850	6350		180
16	1250	1.0	1950*1400	1100*2100	2550*2100	1500	4400	2600*2100*2500	45
		1.6/1.75				1700	4500		96
		2.0				1800	4900		120
		2.5				2000	5100		150
		3.0				2600	5600		150
		3.5				3100	5950		180
		4.0				3850	6350		180
18	1350	1.0	1950*1500	1100*2100	2550*2250	1500	4400	2600*2200*2500	45
		1.6/1.75				1700	4500		96
		2.0				1800	4900		120
		2.5				2000	5100		150
		3.0				2600	5600		150
		3.5				3100	5950		180
		4.0				3850	6350		180
21	1600	1.0	1950*1750	1100*2100	2550*2500	1500	4400	2600*2500*2500	45
		1.6/1.75				1700	4500		96
		2.0				1800	4900		120
		2.5				2000	5100		150
		3.0				2600	5600		150
		3.5				3100	5950		180
		4.0				3850	6350		180

Note: the parameter table shows the standard design of our elevator. We also can design elevator for you with your parameter.
