Detailed Description
1. Appearance. With inheritance of the traditio
nal retro style characteristic, Luyuan V5 combined the new technology with the classic structure; Germany color series.
2. Mechanically innovation: Unique single-side arm front suspension design, with high-end Aluminum Alloy material, which improved stability of whole vehicle; rear wheel fork uses double-A arms, suspended structure design and single-side variable frequency motor, which makes the structure more stable; AL aviation style side kickstand, with four co
nnecting rod structure, can be fully integrated into the f
rame structure o
nce it lifted up and it is able to be made into different color by AL anodizing; the f
rame material is 30% thicker than others with strict welding by intelligent robot and rust-proof treatment both inside and outside of the f
rame by electrophoresis is far qualified;Patented ceramic brakes, which can reduce braking distance of 1m, saving energy and extend the lifecycle;
3. Engine start button design to turn on the power and no key needed
4. Car level headlight with 7 mode adjustment options of light colors
5. Two versions. Beside the lead acid battery version, this scooter is available for a higher spec. version with the portable lithium battery,18650lithium battery cell and BMS system; Aluminum material packing ensures good heat dissipation and quality; co
nvenient charging for those who lives in upper floors. Light weight and lo
nger distance.
| Model | MAB-BS6020--S7(lithium battery version) | MAB2-BS6020--S7
(lead acid version) |
| Body size | 1690*675*1035mm | 1655*695*1050mm |
| Footboard width | 378mm | 378mm |
| Footboard length | 300mm | 300mm |
| Ground clearance | 140mm | 140mm |
| Wheel axle distance | 1245mm | 1245mm |
| Turning radius | 1753mm | 1753mm |
| Weight (with battery) | 103kg | 103kg |
| Max. loading | 150kg | 150kg |
| Max.speed | 42kmh | 42kmh |
| Range | 50-60km | 50-60km |
| Rated motor power | 60V/48V600R/800W/ | 60V/48V600R/800W/ |
| Motor Torque | 95N.M | 95N.M |
| Battery | 60V20AH lithium battery | 48V/60V20AH lead acid battery |
| Controller | 60V-48V/12/HC1 | 60V-48V/12/HC1 |
| Charger | 60V-30E-2T/6PLUS | 60V-30E-2T/6PLUS |
| Climbing | 12° | 12° |
| Wheel | 10*3.0 reflector tubeless | 10*3.0 reflector tubeless |
| Brake | F&R disc brake | Ceramic drum brake |
| Display | LCD display | LCD display |
| Rim | AL | AL |
| Front Suspension | Single-arm AL suspension fork | Normal double arm fork |

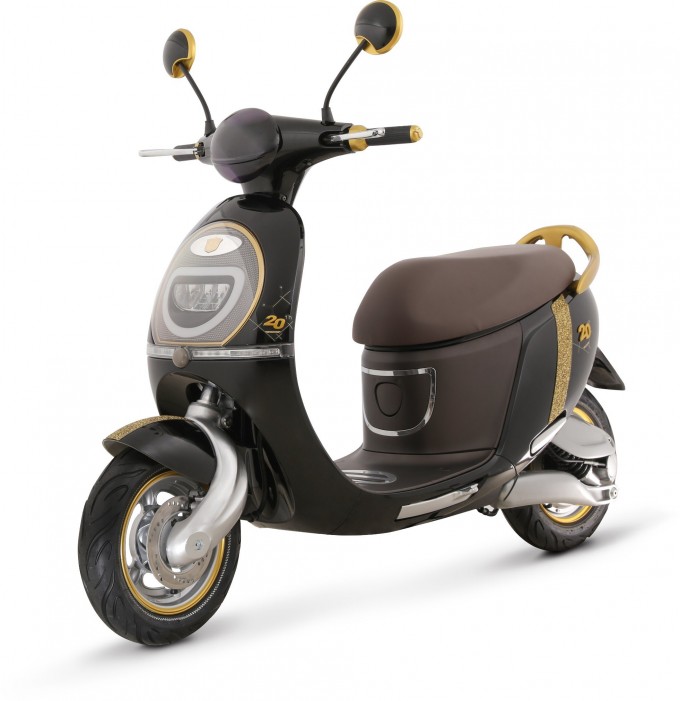

Product Image
