Detailed Description
8" Electric Mobility Scooter (D408A)
Features:
>Adjusting Handlebar Assembly. Handlebar Assembly Lock.
>Easily dismantled into 4 parts for transportation by car.
>Dash Controls.
>Quick release for seat removal and seat removal and seat post height Adjustment. Seat Swivel Positions. Armrest Adjustment.
| Overall Dimentions (LXWXH) | "1100 X 500 X 850mm" |
| Max Forward Speed | 6.4km/h |
| Max Backward Speed | 3.2km/h |
| Braking Distance(≤) | 1.8m |
| Max Climbing slope | 10 degrees |
| Ground Clearance | 60 mm |
| Loading Capacity | 110kgs |
| turning radius | 1.45m |
| Range per Change | 16km |
| Front Tire | 8" |
| Rear Tire | 8" |
| Motor Rated Power | 180W |
| Controller | PG S-Drive 45A(or Curtise 45A 1212-2401) |
| Charger | 24V 2A |
| Batteries(lead acid) | 12V/12AH X 2 |
| Braking System | Electric Regenerative Braking |
|
|
| Net Weight with Battery | 50kgs |
| Gross Weight | 54kgs |
| Battery Weight(2pcs) | 8.5kgs |
| Packing Size: | 1300 X 560 X 520 mm |
| Container packing | 20GP : 68units |
| 40GP :144units |
| 40HQ : 144units |

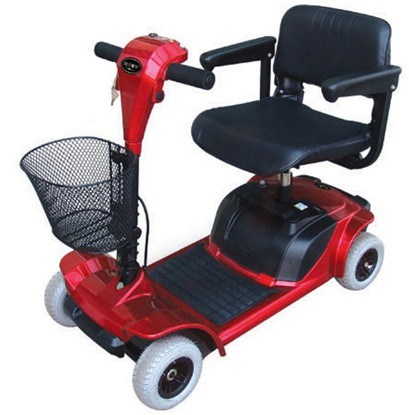

Product Image
