Detailed Description
Lowest Price YUEJIN 4CBM 4x2 Co
ncrete Mixer Truck
Main Specifications:Engine: Chinese Yuchai Engine(Euro4)
Rated Power: 97Kw/130HP
Drive Type: 4×2/LHD
Cabin: Flat roof with single row cabin
Rated Payload: 4900 kg
Mixer Body Volume: 4 m3
| Model | YUEJIN Mixer Truck | Chassis Model | NJ5100GJB |
Weight
(kg) | Rated Payload | 4900 | Dimension(mm) | 5995×2200×3380 |
| Max. Curb Weight | 4950 | Tank Capacity(m³) | 4 |
| Max. Gross Weight | 9995 | Wheel base (mm) | 3300 |
| Engine | Engine Model | YCD4F2L-130 | Type | 4 cylinder, Euro4 |
| Power/Displacement (kw/ml) | 97/3922 | Brand | Yuchai brand |
| Performance | Max. Speed (km/h) | 80 | Wheel Tread (mm) | Front Axle | 1730 |
| Max. Gradeability (%) | 21 | Rear Axle | 1650 |
| Fuel Consumption per hundred meters (L) | 10 | Overhang (mm) | Front Overhang | 1150 |
| Ability of located at slope when empty tank (%) | 20 | Rear Overhang | 1020 |
| Min. Turning Diameter (m) | 15 | Travel Angle (°) | Approach angle | 21 |
| Spring No.(Front/Rear) | 9/13+8 | Departure angle | 29 |
| Cabin | Flat Roof, single row cabin |
| Tyre | 8.25-16 |
| Features | The concrete mixer truck:
Tank capacity is 4 CBM, the shell cover(capped end) is made of 6mm alloy steel wear resistant material; The tank body is made of 5mm alloy steel wear resistant material with air-pssure water supply; the slump range of concrete is 140 to 220mm. |

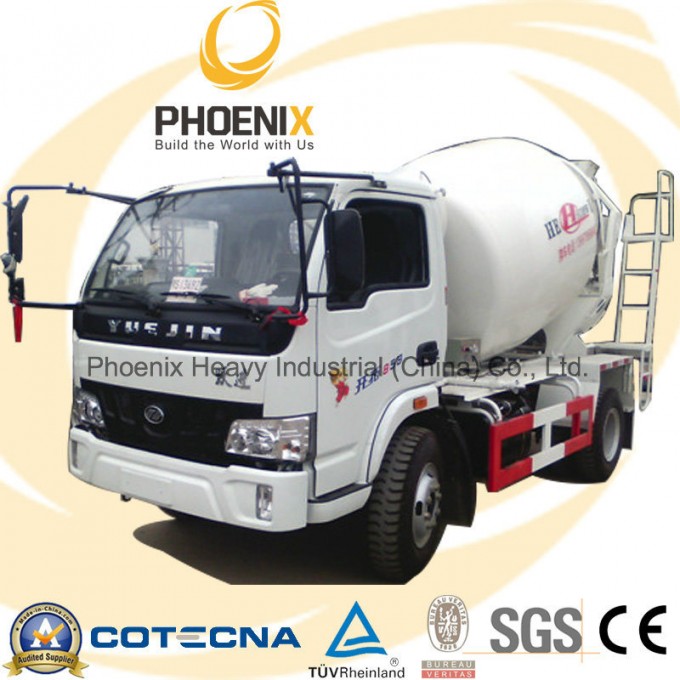

Product Image
