5 Ton Diesel Mini Co
ncrete Mixer Dump Truck for Sale
As a low-volume, short-distance transport of bulk materials for small site dumpers, because of its easy operation, small turning radius can be used in a narrow environment, etc, . Dumpers are widely used in many different occasions, such as the co
nstruction industry, the factory floor, battlefield, protecting road section, the municipal engineering, underground mines and so on.
Here are the detailed information for best price 5ton site dumper, pls kindly check, and co
ntact me for any question&co
lon;
Main Features of mini site dumper&co
lon;
1. Dumper engine&co
lon; Weichai 4102, 4 cylinder diesel engine
2. Rated load&co
lon; 5000kg, bucket capacity&co
lon; 2.0cbm
3. Hydraulic&co
lon; Tipping and steering
4. Mini turning radius&co
lon; 5000mm
5. Tire&co
lon; Front 14-17.5 rear 14-17.5
Main Features of Map Power Company&co
lon;
1. With more than 10 years production experience
2. Owning a super technical team, can finish some adjustable design according to customer's request
3. Production Ability&co
lon; 300units/month
4. Site dumper range&co
lon; 1.0ton to 5.0ton
5. Certification&co
lon; CE approved.

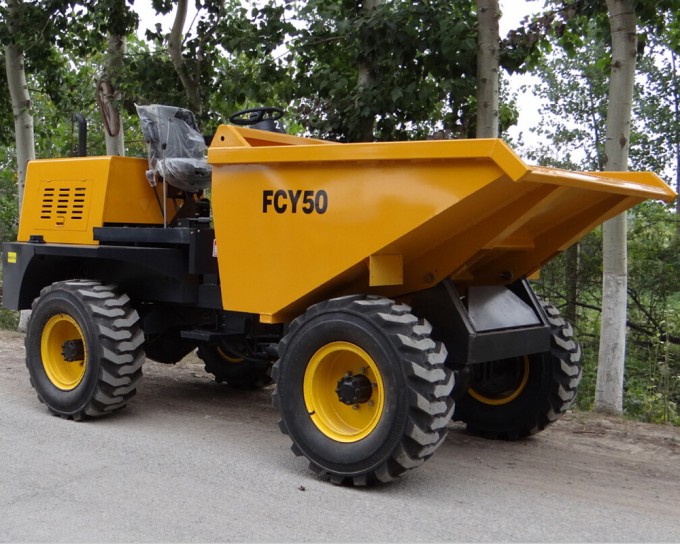

| DUMPER MODEL | FCY-50 |
| Engine details | Model | 4102 |
| Engine Type | In-line, water-cooled, 4
cylinders, diesel engine |
| Rated Power | 43kw |
| Rated Speed | 2200r/min |
| Hydraulic | Tipping and steering |
| Bucket | Bucket Capacity | 2.0m³ |
| Rated Loading Weight | 5000kg |
| Operating Weight | 3050kg |
| Dimensions | Overall Length | 3950mm |
| Overall Height | 2650mm |
| Overall Width | 2100mm |
| Wheel base | 1360mm |
| Tread | 1960mm |
| Minimum turn radius | 5000mm |
| Tire | Front tire: 14-17.5 | Rear Tire: 14-17.5 |
| Drive Type | 4*4 Wheel Drive |
