3.0 Ton New Dumper Truck Price

3.0 ton new dumper truck price

3.0 ton new dumper truck price

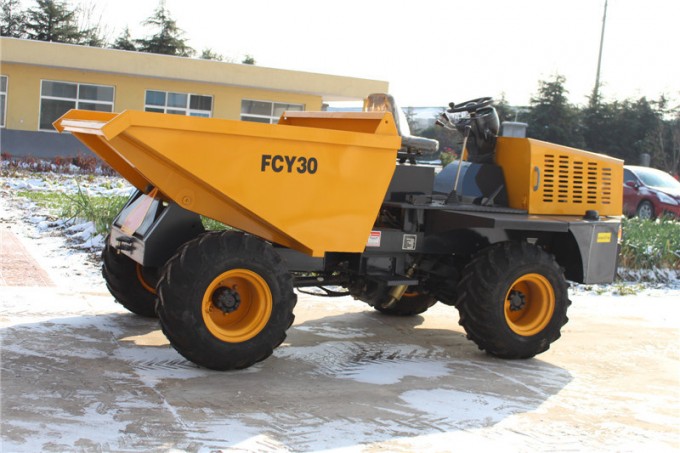

Diesel Mini Site Dumper FCY30 4X4 Drive
Shipment: 1units in 1X20FCL/3Units in 1X40FCL
Engine Model NB485 or F3L912
Type Xinchang 485 Water-4,
Deutz F3L912 Air-3
Rated Power(rpm) 30KW/2600(485)
36KW/2300(912)

Mini dumper 3 Ton
Can unload materials smoothly by strong hydraulic pssure unloading system.
Site Dumper FCY30 Application
Dumpers are widely used in short-distance transport of bulk materials, such as the construction industry, the factory floor, battlefield, protecting road section, the municipal engineering, underground mines and so on.

Weifang Map Power is real factory to produce all kinds of mini dumpers, 2.0 ton dumper self discharging, self loading type, 3.0 ton site dumper front tipping or side dumping type. Middle sized dumper 5.0 ton for transport fruit, sands, cores and stones.

Model		FCY30 mini dumper
		SD-30
Drive Model		4WD
Length(mm)		3900
Width(mm)		1850
Height(mm)		1820 WITHOUT CABIN 2700 WITH CAIBN
Wheel base	Wheel base(mm)	2000
Wheel Tread	Front Wheel(mm)	1470
	Rear Wheel(mm)	1470
Min Ground Clearance(mm)		≥ 248
Dry Mass(Kg)		2500
Engine	Model	NB485 or F3L912
	Type	Xinchang 485 Water-4, Deutz F3L912 Air-3
	12 Hours Rated Power(rpm)	30KW/2600(485) 36KW/2300(912)
Tyres	Front Wheel	12-16.5
	Rear Wheel	12-16.5
Clutch		Constant-contact, single-disc, dry clutch
Brake		Drum type with hydraulic control
Steering Gear		Hydraulic follow-up Service
Gear Box With		Four forward speeds and one reversed speed
Ground Speed (Km/H)	1st Gear	4.26
	2nd Gear	8.8
	3rd Gear	16.14
	4th Gear	27.2
	Reverse	3.48
Skip Capacity (m3)		1.5
Minimum Turning Radius (m)		4.225
Tipping System		Hydraulic Tipping hopper
Max, Grade Ability (%)		30
Electric Starting		Yes
Container Loading
20GP container can be loaded with		1Unit
40GP container can be loaded with		3Units
