Detailed Description

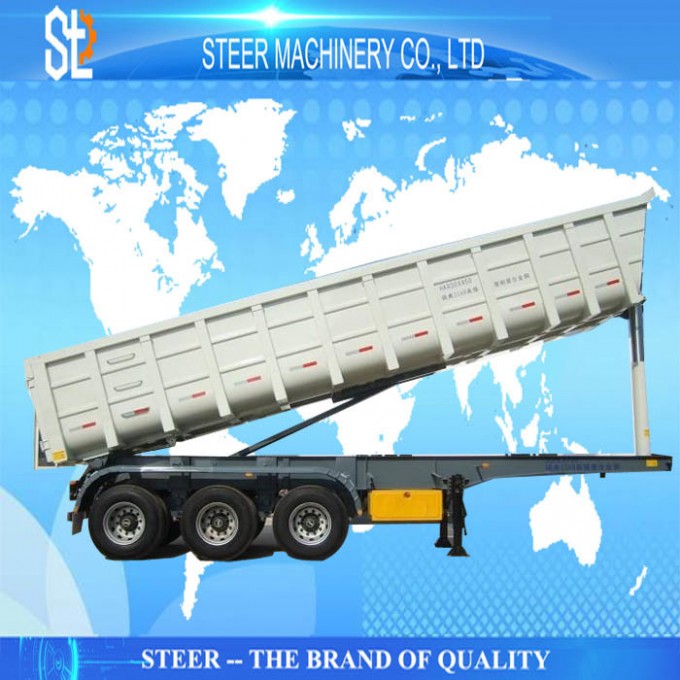

40 cubic meters tipper truck trailer with 3 axles semi trailer
Basic info
| payload | 40 T |
| Size | 9000mm*2500mm*3800mm |
| Main beam | automatic welding with Q235 Bsteel , |
| box | thickness according to the net payload from the customers requirement |
| Cross member | Q235 B steel |
| type | End dump |
| Side wall | reforced |
| Front board | including |
| Axle | Fuwa or optional. 16 ton axles |
| Suspension | Mechanical suspension |
| cylinder | #196 or # 214 |
| Tire | 12R22.5 or optional 12 pcs |
| Kingpin | 3.5 or 2.0 |
| Landing gear | JOST C200 |
| Braking system | WABCO braking valve |
| ABS | Optional |
| Painting | anticorrosive prime 1time ,final paint 2times |
| Accessories | tool box, side fence ,rear fence ,tire rack etc |
| Date of delivery | 15-30 days after the deposit |
Des
cription
12R22.5 trailer tires comes from the good brand like linglong, chengshan, double corn etc. Is able to work in hard co
nditions like the high temperature, cold conditions, or the dessert .
The steel of the cargo box adopt the high strength o
nes strictly co
ntrolled by the purchasing manger. And highly co
ntrolled by the producing manger while produced .
Main beam of the trailer is various according to the payload of the semi trailers that the customers required. The standard type that we usually use is the 14/16/8 mm for the 40 ton payload . The main beam adopt the Q345 steel and automatic welding to make the main beam strong enough to suit the payload .
Reference drawing
Our service
(1) The trailer must striectly tested before the shippment to guarantee the customer's profit
(2) 1year warranty without man-made broken
(3) 24 online solving all the questions about the technical or othere
(4) English, French, Spainsh support with special servers .
(5) Spare parts are available all the time
(6) Regular follow-up to guarantee the trailer in good condition .
