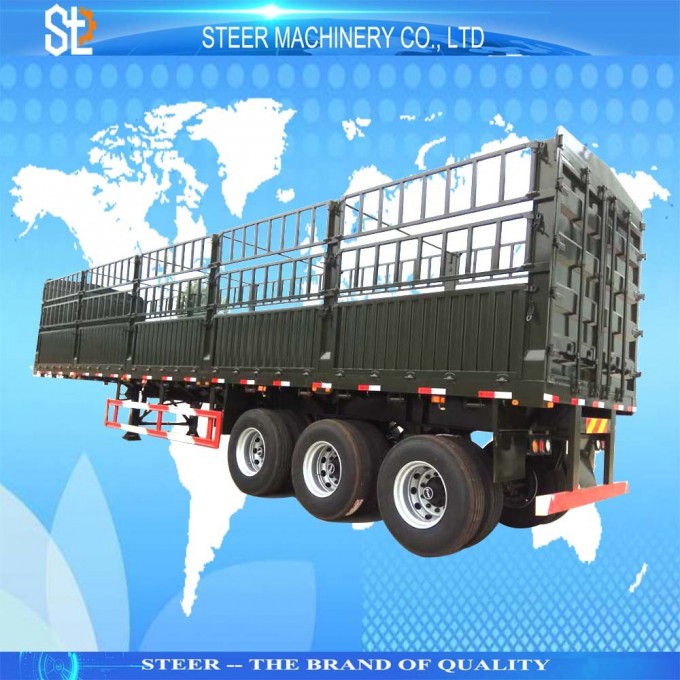

3 axle cargo transport 40 ton cargo truck semi trailer for sale
Basic info
| payload | 40 T |
| Size | 12500mm*2500mm*3800mm |
| Main beam | automatic welding with Q235 Bsteel , |
| box | thickness according to the net payload from the customers requirement |
| Cross member | Q235 B steel |
| type | fence cargo |
| Side wall | reforced |
| Front board | including |
| Axle | Fuwa or optional. 16 ton axles |
| Suspension | Mechanical suspension |
| opening | Rear open or side open |
| Tire | 12R22.5 or optional 12 pcs |
| Kingpin | 3.5 or 2.0 |
| Landing gear | JOST C200 |
| Braking system | WABCO braking valve |
| ABS | Optional |
| Painting | anticorrosive prime 1time ,final paint 2times |
| Accessories | tool box, side fence ,rear fence ,tire rack etc |
| Date of delivery | 15-30 days after the deposit |
Des
cription
The leaf spring of the semi trailer is usually ten pieces which is much stro
nger than the normal type. And for the special type of the semi trailers, the bogie suspension is available too.
Breaking pads with good quality to enlarge the working length in order to reduce the cost of changing , is able to enlarge hundreds of kilometers .
The tire will be optio
nal by the clients. And for the heavy duty type of the semi trailers, we will make the suitable ones. And in order to meet the different requirements of the marketing area, the special type will be used too such as in Gabon , Africa we will chose the 13R22.5 instead of 12R22.5 o
nes 'cause of local requirements .
The fence cargo trailer can be designed with 12 sets of co
ntainer lock too just as the flatbed trailers to transport the co
ntainer in different size. Just the width of the semi trailer will be 2.7 meters as so. The verious using of the fence cargo trailer makes it more and more popular.
a
bout the shipping , there are special design for the trailers in order to reduce the cost of shipping. Like the front of the rear. And we have the special part for the shipping arrangement which can provide the professio
nal support to reduce the cost of the shipping .
All trailers will adopt the superior steel to guarantee the quality and good looking out side. And the painting of the semi trailers will be made by the Polyurethane to pvent the rust while the shipping and the using .
Reference drawing
Our service
(1) The trailer must striectly tested before the shippment to guarantee the customer's profit
(2) 1year warranty without man-made broken
(3) 24 online solving all the questions about the technical or othere
(4) English, French, Spainsh support with special servers .
(5) Spare parts are available all the time
(6) Regular follow-up to guarantee the trailer in good condition .
