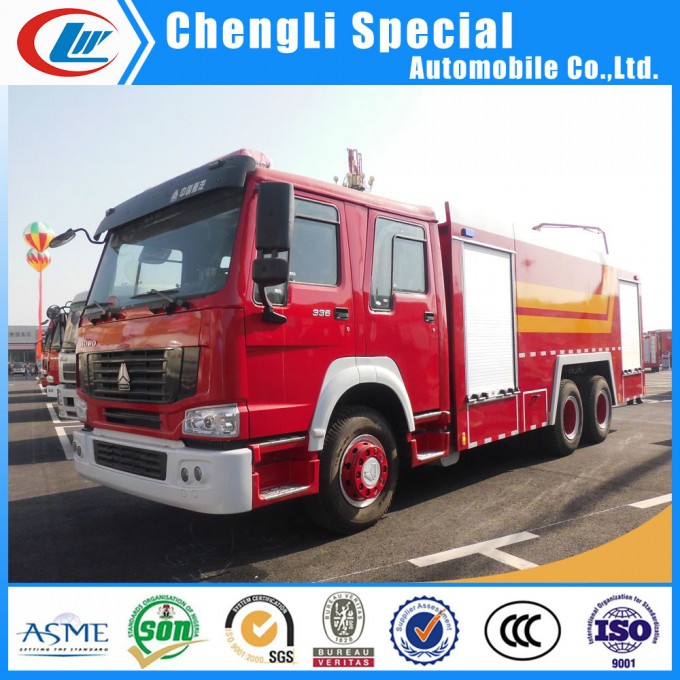

8000liters 10t 12ton Water Foam Tank HOWO Fire Fighting Truck for Sale

8000Liters 10T 12ton Water foam tank Howo Fire Fighting Truck for sale

Item	Unit	Parameter
Overall dimensions	mm	9780x2500x3470
GVW	kg	25000
Curb weight		13050
Water tanker	L	12000
Wheel base	mm	4325+1350
F/R track base		2022/1830
Approach/departure angle	°	16/14
Exhaust/hp	ml/kw	9726/247
Horse power		336hp
Max speed	km/h	85
Tire specification	11R22.5,11pcs
Engine Model	WD615.93E		Emission standard	EuroIII
Cabin	Right hand drive,2+4
Equipment	Water tanker: 12000L Fire pump:CB10/60flow: 60L/s diversion time≤50s(Pressure: 1.0Mpa) Fire monitor: PL48-64Dflow: 48-60L/srange: water≥60m (Pressure: 1.0Mpa-1.2Mpa) Power takeoff.

1.Cab
Manufacturer: SINOTRUK
Double row, 2+4 seats contains the driver seat,
With air conditioner.
With fire control panel, and awarning lamp control box.
The back seats bear 4sets air respirator and fixed fixtures.

2.Power takeoff
Full power and sandwich type.

3. Pump room and Equipment room
Structure
Main structure is welded by Q235 material.
Pump room
Pump room is located at rear of truck with side and rear aluminum alloy roller shutters andspotlight.
With anti-slip footstep at two sides for parts of equipment and ramp at the rear of truck.
Equipment room
Equipment room is at the back of cabin with side aluminum alloy roller shutters and spotlight and with anti-slip footstep at two sides.
Storage box and push-pull tray are between equipment footstep box and equipment room.

4.Tank
Water: 12,000L
Material: carbon steel photostatic treatment.
Thickness(floor:side:baffle): 4:4:3 mm
With one DN430 manhole, one DN50 overflow.
With DN80 outlet for remain water and equipped with ball valve
With two DN80 water inlets on left and right of the truck

5.Pump
Model: B10/60
Type: Low pssure centrifugal pump.
Pipe: 20seamless steel tube.
Inlet and outlet:one DN150 inlet with stainless strainer and cover.two DN80 outlets with ball valves and covers.


6.Fire monitor
Model: PL48-64D
Flow: 48~64L/s
Pressure: 1.0 ~1.2 Mpa
Fire rang: water ≥60m
Rotation angle: 360° rotation
Angle of elevation: ≥+70°
Angle of depssion: ≤-15°

7. Fire control system:
Cab control: electrical switches, pneumatic master switch, water pump shift, warning lights, lighting and signal device control and so on.

Pump room control: blending proportions set, control valve switch, parameter display, status display etc.

8. Electricity equipment
independent circuit
Chinese brand good quality electricity control system
Light:24V voltage
Lighting
One fire light at the rear top of truck

9. Painting
Good quality painting
Mainly red color
