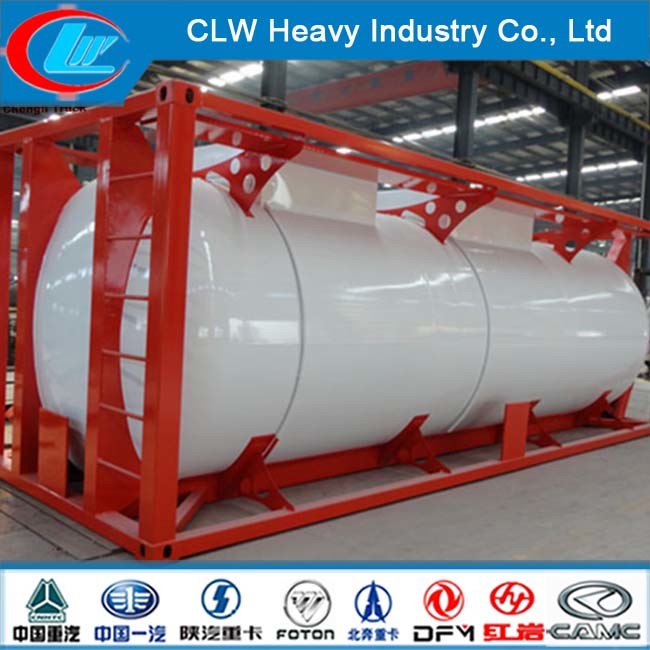

40ft LPG Tank Container with Volume Optional/Tank Container for LPG

Factory Direct Sell 20FT ISO LPG container tank 40FT ISO LPG container tank
1. LPG pssure vessel
2. For gas, oil, petroleum use
3. Anti-corrosion, anti-acid

Cheng Li LPG Pressure Vessel functional characteristics:

1.anti-corrosion coating the surface .Using sand-blasting treatment, spraying, blowing, and other advanced technology.
2.high-quality home-made or imported Safety Accessories for users matching, fully furnished.
3.strictly to science and the advanced construction technology to ensure that at low temperatures, the contraction rate of the highest dimensional stability.

4.rigorous quality testing: A, B Class 100% seam-ray testing, II level qualified C, D Class weld 100% magnetic particle inspection, I level qualified.

Equipment
1.Reflective tape
2.Fence:one on left , one on right , one on the back
3.Manhole:3 manhole on the top of the tanker.
4.Breakwater board:7 units plate
5Signs of dangerous goods:such as "flammable"
6.Paint : normal or clients choose
7.Logos:company logos and phone number
8.Fire extinguisher box is big enough to set 8kg fire extinguisher. The two boxes are fixed on the left and right side of the tank.
8.Fender: Plastic material, semicircle.
9.Hose carries: 2 pcs,.on the two side ,one on left , one on right
10.Hose: 2 pcs, with quick camlock coupling
One hose reel including 20 meters of 1.5" hose
One lockable steel tool box without tools
One fixed ladder at the rear of the tank for access to the catwalk

Production notes:
1),Manufacturer, more than10yrsprofessional experience.
2),CertificateISO9001,3C,
3),High quality,lowprice
4),Loading LPG volume58.5m3
5),Small ordercan be accepted.Any color and logowill be available
6),Very SafetyControl System: float liquid indicator, built-in safety valve, emergency cut-off valve, ball valve and etc.
7)Products can be custom-madeaccording to your design, or diversified needs.

FAQ
1.Payment:
30% deposit after order /confirm/iation, 70% balance should be paid before delivery.All byT/T, L/C.
2.Delivery time:
25 working daysafter payment is received.

Packaging &Shipping:

1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.

Our warranty:

1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.


Below specification is just for your reference. More information of ourLPG Storage Tank.please feel free to contact withMs. KittyZhen. We will customize the truck according to your requirement.

Sales Manager: Beria Huang
Mob.: 0086-155 0723 4243

Technical Parameter ofCLWLPG StorageTank Company Information

LPG storage tank Description
Vehicle Model	CLW	Chassis Model	CLG2400-50
GVW (kg)	40000	Curb weight (kg)	11140
Loading capacity (L)	Approx 20,000	Tanker material	Q345R
Tanker Description
Tanker volume	50000 Liters	Tanker Curb mass	11140 kg
Tanker material	Q345R	Design pssure	1.77Mpa
Tanker thickness	12mm	Design temperature	50
Water test pssure	2.22Mpa	Sealed test pssure	1.77Mpa
Tanker vechicle size	11508*2428*3018 mm	Filling factor	0.42
Tanker DN	2400mm	Corrosion allowance	2
Up-parts Description
Tank Dimensions(mm)	Approx 11508*2428*3018 mm
Tanker has following certificate
1	Material test (Q345 no scratch, Pressure values
2	Hydrostatic test certificate
3	Ultra sonic test certificate
4	Heat Treatment certificate
5	Material list and certificate of pssure retaining part
importance	§Tank, piping: Test and welding certificates from authorised testing bureau, execution drawing with all dimensions, calculation note of the tank according to code
	§X ray test for the pipes 100%
	§Written declaration that the tank is placed on the chassis according to the pscriptions of the chassis furniture
	§Calibration certificate of the LPG tank
	§All documents for tank, cabin (Manuals, certificates etc.)

Product name		Filling weight(kg)	Overall dimension(mm)	Tank weight(kg)	Remark
Liquefied petroleum gas (LPG) storage tank	12 m3 LPG storage tank	4840	6270*1620*2255	3298	safety attachment:safety value ,liquid level gauge, pssure gauge, thermometer, emergency shut-off valve, and so on
	25 m3 LPG storage tank	10080	7594*2124*2700	5900
	32 m3 LPG storage tank	12902	7508*2428*3010	7520
	50 m3 LPG storage tank	20160	11657*2428*3028	10760
	80 m3 LPG storage tank	32256	11866*3036*3610	17900
	100 m3 LPG storage tank	40320	13020*3240*3900	22950
Liquid ammonia storage tank	10 m3 storage tank	5094	5724*1624*2305	3280
	20 m3 storage tank	10188	6791*2032*2610	6295
	32 m3 storage tank	16301	8908*2236*2810	9808
	50 m3 storage tank	25470	11657*2432*3028	12200
	80 m3 storage tank	40750	11870*3040*3610	19725
	100 m3 storage tank	50940	13024*3244*3900	25000

Cheng Liproduced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleumgas (propane), propylene, ammonia, dimethyl ether, methanol, butadiene, butane, ethylene oxide, methylamine, etc. In low pssure liquefied gases at room temperature; Volume from 10 cubic meters --- 100 cubic optional.
Chengli pssurecomponents of the productIion materials, size and weld quality, operation quality, installation quality, safety valves and shut off valves devices and accessories within the strict qualification, inspection, test.
The tank materialson physical and chemical tests such as:Mechanical propertiesandchemical composition.
The tankwelded joints, welding line, tank head, the pssure of the geometric location of each component through rigorousX-raynon-destructive testing and magnetic particle testing inspection

Our leading varieties include more than100 types of trucksand related products such aswater tank truck,fecal suction truck,garbage truck,refuse compactor,sewage suction truck,fuel tank,high-altitude operation truck,truck with crane, dump truck, instructional truck, van truck, semi-trailer, fire engine, refrigerator truck, water wagon, tractor, high-altitude water truck, bulk cement truck, chemical liquid truck, concrete mixer truck, and others. Our cooperation partners including Sinotruk,FAW, Dongfeng , FOTON, Schacman, Beiben, Hongyanand etc.
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler tank Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc.)


Advantages of Choose us:
1. Have focused on special automobiles' design and production for nearly 10 years.
2. Have obtained the ISO9001 international quality management system certification.
3. Have obtained foreign trade qualification granted by Chinese government.
4. Manufacturer direct sale , quality guaranteed, low price.
5. Europe Emission Standard 2/3.
6. Except standard products we can also produce products base on customers' requirement.

If you are interested in our trucks, pls contact me, Iwill send our best quotation to you!

Contact information

Sale Manager: Beria Huang
Tel/Fax : 008615507234243
Cell:0086-13872880317
Website:truckcl.en.alibaba.com

we sincerely welcome you to visit our factory and provide your pcious suggestion for us!

CHOOSINGUS,CHOOSINGTHEBEST!!
YOURSATISFACTION!
OURDESTINATION!
