Product Introduction
Lowbed rack is welded by submerged welding machine from 20 mm x150 mm ST52.3 Quality steel bottom and top flat steel and 10 mm ST52.3 hub plate. It has "I" section and also includes 4pcs.
Rack is supported with 160 NPI axle beams that crosses rack.
It has been produced in welding co
nstructions with gas me
tal arc welding as "I" crossing from high resistant steel co
nsidering overloads proper to capacity and intended usage.

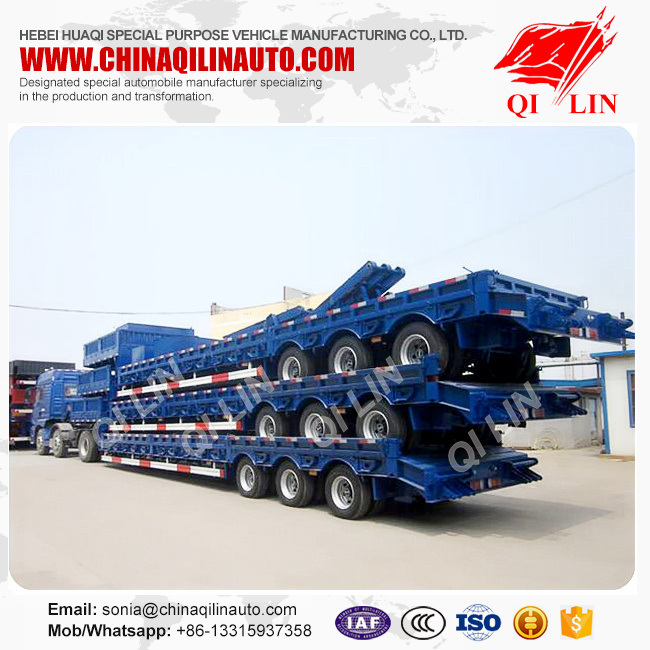

3 Axles 60tons Heavy Duty Low Bed Lowboy Truck Trailer for Sale
| Dimension |
| Trailer Model | QLG9400TDP |
| Overall dimension | 13000*3000(3500)*1750mm |
| Platform height(mm) | 1100 |
| Effective platform | 8000mm length |
| Main Beam | The height of Main beam is 500mm,The upper/down plate is 20 mm, width is 140mm.
the middle plate is 10mm |
| Side beam | 250mm I-beam |
| Cross beam | 16# I-beam |
| Platform | 4mm checkered plate |
| Max Payload | 50-60Tons |
| frame and running constructon |
| Axle | FUWA 13T/ 3pieces |
| tyre | Triangle 8.25R20/ 12 pieces |
| rim | 6.5-20/ 12 pieces |
| leaf-spring | 90mmwidth*10pieces*13mm/6sets |
| Kingpin | Interchangeable 50# &90# |
| Landing gear | 28T standard made in China |
| rear ladder | 1 set |
| suspension | Mechanical suspension |
| Electrical and braking system |
| Electrical system | 24 volt electrical system. LED lights, 7pin electrical connector. Parking .stop,reverse,
number plate and indicator lights. rear lights conform to European standard, rear front
and side reflectors |
| Color | Optional |
| Braking system | with ABS system made in China |
| Packing | Nude,Polish with Wax before Shipment |
| Remark | The above mentioned data is for your reference only.
The detailed specification will be subjec |
Packaging &Shipping
1.Nude,polish with water wax before shipment.
2.40HQ ,40FR,Ro-Ro ship andbulkshiptransport.
Our Services
Our engineer will go to your side when thelow bedtrailer goes something wrong;
Any parts of the low bedtrailer will be send to you as soon as possible;
Technology co
nsulting are appciated all the time!
Company Information
1.Hebei Huaqi was established in 1956 .More than60 years trailer making experiences .
2.We have more than 300 emplyee .With 24 technical engineers ,18 senior engineers .
3.We are one of the largest manufacturer in China ,have passed ISO9001:2008 ,CCC Natio
nal Compulsory Certificate.
4."Qi Lin" Brand is Famous brand in Hebei Province ,China .
Welcome you to visit our factory !
1.We can pick up you in the airport port ,
2 book the hotel for you,
3.Show around the workshop and production line.
4.We can supply the truck parts.
5.We can supply the stock trucks if you need the trucks urgently.
FAQ
1. Can Ihave samples of this type of trailer to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1unit.
2. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is within 15 workdays after we received your ppayment.If you have place an order of large quantities, then ,of course, the price can be lowered.
3. Can you supply some quick-wear trailer parts?
Yes, we can supplythe trailer parts as your request,such as traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings, etc
4. What's the payment method?
TT 30% as deposit, balance before shipment by TT or L/C at sight.
5.Do you have any used trailer for sale?
We have many trailers in stock for choices, from 2012-2016 year, the price are favorable,we'll show you our stock trailer if you need.
6. How to guarantee customers get the goods smoothly after they pay?
Don't worry, dear. We joined the trade assurance,you can place the order by trade assurance,if we don't delivery products, the deposit will be returned to you.
7. How can you ensure the quality of the products?
Don't worry, dear. We joined the trade assurance,if the products have quality problem when you received the goods, you can get the advance payments.
