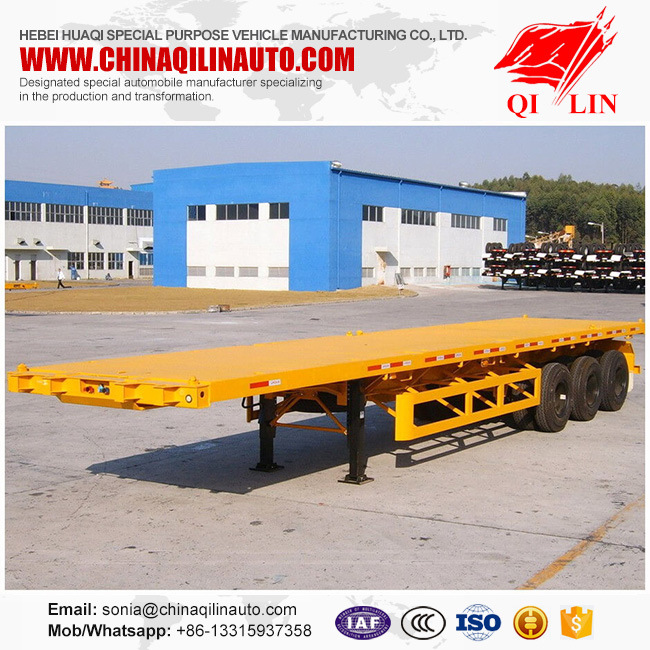

Hot sale tri ejes perso
nalized co
ntainer carrier flat bed trailer de 2*20ft and 40ft
| Dimension |
| Trailer model | QL9400TJZ |
| Function | Load 2*20ft or 1*40ft container |
| Overall dimension | 12350mm*2500mm*1550mm |
| Max payload | 40000kg |
| Curb weight | 7000kg |
| Platform | 3mm steel checkered plate |
| Main beam | The height of the beam is 500mm,upper plate is 14mm,
down plate is 16mm,middle plate is 8mm. |
| Cross beam | 100mm channel steel |
| Side beam | 160mm channel steel |
| Running construction |
| Axle | YLT 12T |
| Number of axles | 3 pieces |
| Tire | Marca Triangle12.00R20 or 315/80R22.5 |
| Number of tires | 12 pieces |
| Rim | 8.5-22.5 /12 pcs |
| Twist lock | 12 pieces |
| Kingpin | Interchangeable 90# /50# |
| Leaf spring | 90mm*13mm*10pieces/6sets |
| Landing gear | 28T made in China |
| Suspension | Mechanical suspension |
| Diesel tank | 1000L |
| Tool box | 1 piece 1000*500*500mm |
| Braking system | With WABCO ABS system |
| Electrical system | 24 voltage |
| 7 ways(7 wire harness) |
| Light | LED type |
| Packing | Nude,polish with wax before Shipment. |
| Painting | With shot blasting and 4layers painting,color is optional. |
| Remark | The above mentioned data is for your reference only. |
| The detailed specification will be subject to our final /confirm/iation. |
Packaging &Shipping
1.Nude,polish with water wax before shipment.
2. 40HQ ,Ro-Ro ship and bulk ship transport.
OurService
*When the semi-trailer psents amanufacturer's defect, our engineers willpsent help for you.
*Semi-trailers and their accessories will be sent to you as soon as possible.
*Lifelong technical consultation.
Company Information
1.Hebei Huaqi Special Purpose Vehicle Manufacturing Co., Ltd. was established in 1956,with more than 60 years experiences of making trailers.
2.We have more than 300 employees,including 24 technical engineers and 18 senior engineers .
3.We are one of the biggest manufacturers in China. We have got ISO9001:2008,CCC Natio
nal Compulsory Certificate.
4. "Qi Lin" is afamous brand in Hebei province, China.
Welcometo visit our factory !1. We can pick you up in the airports.
2. We'll reserve the hotel for you.
3. Show you around the workshop and production line.
4. We can supply the truck parts.
5. We can supply the stocked trucks if you need the trucks urgently.
FOR MORE PROFUCTS:
FAQ
1. Can Ihave atrailer sample to test the quality?
Yes, you can buy any sample to test the quality, our starting unit is 1unit.
2. How much can the delivery time be reduced?
It depends on the order. The delivery time is usually within 20 business days after receive your ppayment. Ifyou have abig order, the price can benefit.
3. Can you provide some trailer parts?
Yes, we can provide trailer accessories such as traction, traction pin, balance beam and semi-trailer spring, suspension accessories, turntable, all kinds of trailer brakes, brake discs, bearings and so on.
4. What is the payment method?
TT 30% as deposit, the restsettled before shipment.
5. Do you have any used trailers for sale?
We have alot oftrailers in store from 2012 ton 2016, the price is economical.
6. How can ensure the delivery after customer's ppayment?
Don't worry. We've joined Alibaba's trade guarantee. If we do not provide trailers, the deposit will be returned.
7. How can ensure the quality?
Don't worry. We have joined Alibaba's trade guarantee. If the product psents quality defects,customer will get compensation.
