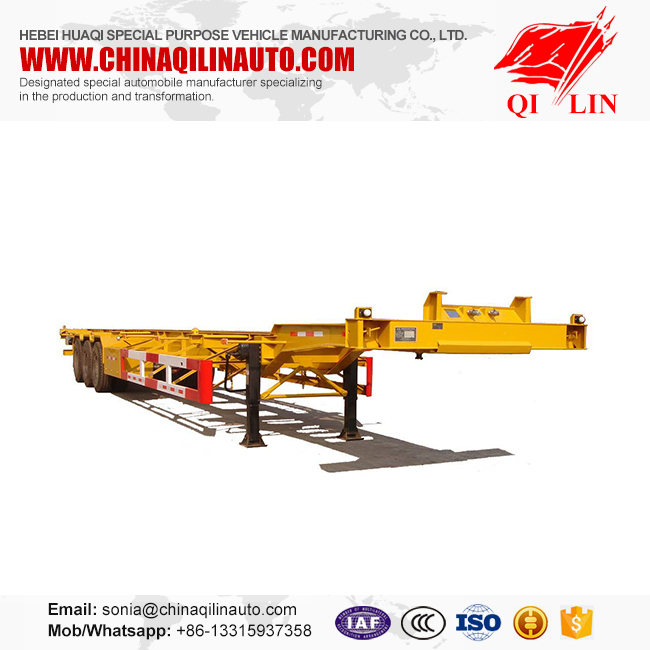

Tri Axles 40FT/2*20FT Co
ntainer Chassis Trailer Skeleton Trailer
| Function | Load 2*20ft or 1*40ft container |
| Overall dimension | 12500*2480*1600mm |
| Max payload | 50Ton |
| Curb weight | 7.5Ton |
| Main Beam | Q345b 500mm height, upper/down plate is20/20mm, middle plate is 10mm |
| side beam | 160mm channel steel |
| cross beam | 100*50*6mm I-beam steel |
| Platform | 3 mm checkered plate |
| Running constructon |
| Axle | BPW/Fuwa 13T/3Pieces/optional |
| tyre | 12R22.5/12pcs |
| rim | 9.0-20/12 pcs |
| Twist lock | 12 pieces -screw type |
| leaf-spring | 90width*10pieces*13mm/6 sets |
| Kingpin | interchangeable 90#&50# |
| Landing gear | JOST C200 /optional |
| suspension | Mechanical suspension |
| Tool box | 1 pcs standard |
| Spare tyre carrier | 2piece standard |
| Water tank | 30L |
| Fuel tank | 800L |
| Braking system | withABS system/WABCO optional |
| Electrical system | 24 voltage |
| 7 ways(7 wire harness) |
| Light | LED type |
| Packing | Nude,Polish with Wax before Shipment |
| Painting | Color is optional |
| Remark | The above mentioned data is for your reference only.
The detailed specification will be subject to our final /confirm/iation. |
Packaging &Shipping
1.Nude,polish with water wax before shipment.
2. 40HQ ,Ro-Ro ship and bulk ship transport.
OurService
*When the semi-trailer psents amanufacturer's defect, our engineers willpsent help for you.
*Semi-trailers and their accessories will be sent to you as soon as possible.
*Lifelong technical consultation.
Company Information
1.Hebei Huaqi Special Purpose Vehicle Manufacturing Co., Ltd. was established in 1956,with more than 60 years experiences of making trailers.
2.We have more than 300 employees,including 24 technical engineers and 18 senior engineers .
3.We are one of the biggest manufacturers in China. We have got ISO9001:2008,CCC Natio
nal Compulsory Certificate.
4. "Qi Lin" is afamous brand in Hebei province, China.
Welcometo visit our factory !
1. We can pick you up in the airports.
2. We'll reserve the hotel for you.
3. Show you around the workshop and production line.
4. We can supply the truck parts.
5. We can supply the stocked trucks if you need the trucks urgently.
Products Show
FAQ
1. Can Ihave atrailer sample to test the quality?
Yes, you can buy any sample to test the quality, our starting unit is 1unit.
2. How much can the delivery time be reduced?
It depends on the order. The delivery time is usually within 20 business days after receive your ppayment. Ifyou have abig order, the price can benefit.
3. Can you provide some trailer parts?
Yes, we can provide trailer accessories such as traction, traction pin, balance beam and semi-trailer spring, suspension accessories, turntable, all kinds of trailer brakes, brake discs, bearings and so on.
4. What is the payment method?
TT 30% as deposit, the restsettled before shipment.
5. Do you have any used trailers for sale?
We have alot oftrailers in store from 2012 ton 2016, the price is economical.
6. How can ensure the delivery after customer's ppayment?
Don't worry. We've joined Alibaba's trade guarantee. If we do not provide trailers, the deposit will be returned.
7. How can ensure the quality?
Don't worry. We have joined Alibaba's trade guarantee. If the product psents quality defects,customer will get compensation.
