Detailed Description

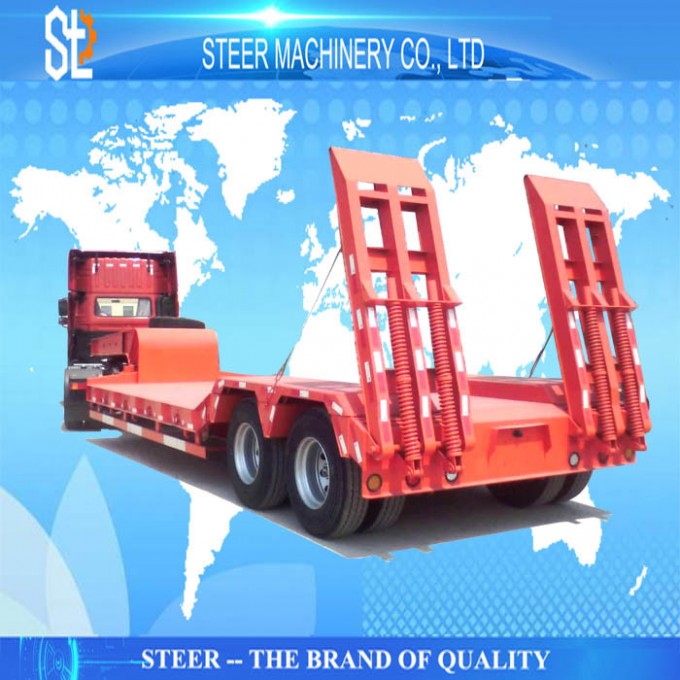

80 ton low bed semi truck trailer for machinery transporting
Basic info
| payload | 60 T |
| Size | 13000mm*3000mm*1400mm |
| Main beam | automatic welding with Q235 Bsteel ,thickness of 16/18/10 mm for the main beam |
| Side beam | automatic whelding I shape side beam |
| Cross member | Q235 B steel |
| Floor | 5 mm checked steel |
| Side wall | without |
| Front board | without |
| Axle | Fuwa or optional. 16 ton axles |
| Suspension | Mechanical suspension |
| ladder | spring or hydralic ladder |
| Tire | 12.00R20 or optional 12 pcs |
| Kingpin | 3.5 or 2.0 |
| Landing gear | JOST C200 |
| Braking system | WABCO braking valve |
| ABS | Optional |
| Painting | anticorrosive prime 1time ,final paint 2times |
| Accessories | tool box, side fence ,rear fence ,tire rack etc |
| Date of delivery | 15-30 days after the deposit |
Des
cription
Breaking pads with good quality to enlarge the working length in order to reduce the cost of changing , is able to enlarge hundreds of kilometers .
The leaf spring of the semi trailer is usually ten pieces which is much stro
nger than the normal type. And for the special type of the semi trailers, the bogie suspension is available too.
The tire will be optio
nal by the clients. And for the heavy duty type of the semi trailers, we will make the suitable ones. And in order to meet the different requirements of the marketing area, the special type will be used too such as in Gabon , Africa we will chose the 13R22.5 instead of 12R22.5 o
nes 'cause of local requirements .
Reference drawing
Our service
(1) The trailer must striectly tested before the shippment to guarantee the customer's profit
(2) 1year warranty without man-made broken
(3) 24 online solving all the questions about the technical or othere
(4) English, French, Spainsh support with special servers .
(5) Spare parts are available all the time
(6) Regular follow-up to guarantee the trailer in good condition .
