Buy brand new 40tons co
ntainer truck cargo trailer
Specifications:
| Item | Unit | Quantity | Notice |
| Size | 12400length*2500width*1600height,
detail according to the drawing |
| Axle | piece | 3 | 13 Ton FUWA |
| Tyre | piece | 12 | 12R22.5PR, Triangle Tire |
| Rim | piece | 12 | 9.0-22.5 |
| Leaf spring | piece | 6 | 90width*10pieces*13mmthickness |
| Braking system | set | | 2 line air braking system with air tank ,emergency relay valve,braking chambers and mechanical slack adjusters. |
| Electricalsystem | set | 1 | 24 volt electrical system.7 pin electrical connector.parking .stop,reverse,number plate and indicator lights.rear lights conform to European standard,rear front and side reflectors |
| Suspension | set | 3 | CIMC type,the high quality Q345 steel |
| Relay valve | whole vehicle | 1 | WABCO |
| Landing gear | pair | 1 | Jost C200 |
| Kingpin 2" | piece | 1 | 50# Welded |
| Tie-in | piece | 2 | haldex |
| Chamber | piece | 2 | stored chamber 2units T30/30 |
| Upper and lower wing plates | | | 14/16mm,width146mm,
using the highly quality Q345 steel, |
| Twist locks | | 12 | can load 1*40ft,2*20ft,1*20ft container |
| Main beam | | | height: 500mmwebplate:6mm
using the highly quality Q345 steel |
| Side beam | | | 16# channel steel |
| Floor | | | 3mm checkered plate |
| Cross beam | | | 80*40cubictube |
| Reflectors | | | Red triangle reflectors at the rear of the trailer andon side |
| Shotblastingandpaint | | | Chassis is comletely shor blasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIonAL alkyd FINISH TOP coat.total 80-100 microns. |
| Spare tyre carrier | | 2 | standard |
| Spare tyre | unit | 1 | 12R22.5PR, Triangle Tire;9.0-22.5 |
| Color | | | Ultramarine blue: RL5002 |

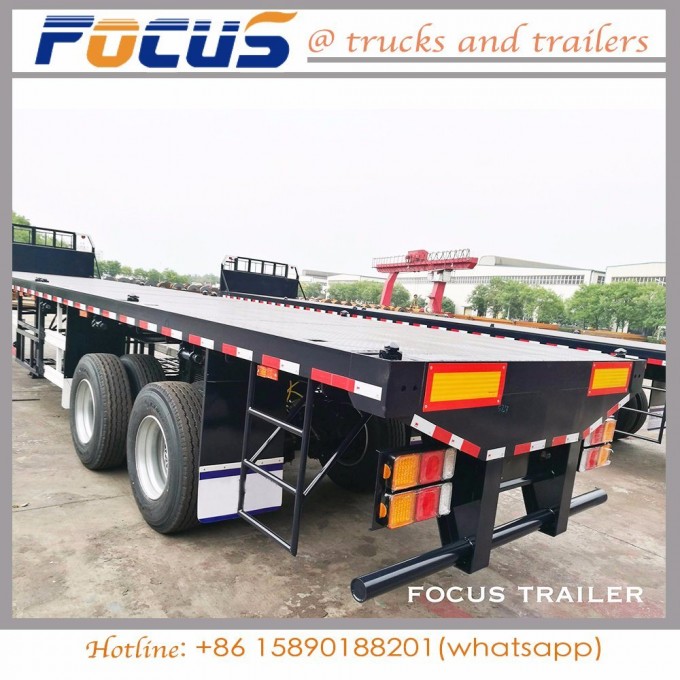

Details of the 40ft flatbed trailer for your reference
Customized:
1-trailers for 20ft,30ft,40ft,45ft,48ft,50ft,53ft container shipping, for bulk cargo, bulk cement bags.
2-flatbed or skeleton chassis type
3-Main beam:500mm height
4-material of the main beam: Q345
5-Suspension: spring suspension, Rigid, single point, bogie or air suspension
6-Axles number: 23 4axles.
8-Jost landing gear, FUWA axles and Tri-angle tires
9-extendable or sliding type optional
TRAILER MANUFACTURING
Buying Guides
1**You please send us your enquiry;
2**We shall reply you with the quotation within 12 hours;
3**We negotiate on the configuration that you need;
4**Confirmation of the tech data →sign contract (P/I) →30% deposit (or L/C issuing)→ production;
5**Manufacturing process updated news →completing production;
6**Balance payment →ex works →shipment →custom clearance →A/S service for 1year.
Why Choose Focus vehicles?
--WHAT ARE OUR ADVANTAGES ?
**Competitive price--We work as the leading dealers of Various leading China TRUCKS and SEMI TRAILERS, and Construction machinery manufactures/factories, and are treated with best dealership prices every year. From comparison and feedbacks from clients, Our price is more competitive than others even manufacturers/ factories.
**Ouick Response--Our team is consisted of agroup of dilligent and enterprising people.Working 24/7 to respond client inquires and question all the time. Most problems can be solved within 12 hours.
**Fast Delivery--Normally it will take more than 30 days for manufacturers/factories to produce the ordered machine, while we have avariety of resources, locally and nation widely, to receive machines timely manner.
--WHICH PAYMENT TERMS CAN WE ACCEPT?
Normally we can work on T/T term or L/C term.
**On T/T term, 30% downpayment is required in advance, and 70% balance shall be settled before shipment, or against the copy of origial B/L for old clients.
**On L/C term, a100% Irrevocable L/C without "soft clauses" can be accepted. Please seek the advice from the individual sales manager whom you work with.
--HOW LONG WILL OUR PRICE BE VALID?
We are atender and friendly supplier, never greedy on windfall profit. Basically, our price remains stable through the year, We only adjust our price based on two situations:
** The rate of USD: RMB varies significantly according to the international currency exchange rates.
** Manufacturers/Factories adjusted the trucks and machinery price, becaue ofthe increasing labor cost, and raw material cost.
--WHAT LOGISTICS WAYS WE CAN WORK FOR SHIPMENT?
We can ship trucks, trailers and machinery by various transportation tools.
**For 90% of our shipment would go by sea, to all main continents such as South America, Middle East, Africa, Oceania and Europe etc. either by container or RoRo/Bulk shipment.
**For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan etc., We can ship trucks trailers, machinery by Road or Railway.
**For light spare parts in urgent demand, we can ship it by international courier service. such as DHL, UPS, TNT, or Fedex.
