12.5m Skeleton Chassis Container Trailer for Sale Philippines

12.5m Skeleton chassis container trailer for sale Philippines

TECHNICAL HIGHLIGHTS:

• Carrying for dry cargos, 1*40ft or 2*20ft containers
• High Quality Body
• BPW, FUWA or Certificated Chinese Axles
• ABS brake system
• JOST or Chinese brand parking leg and king pin
• Air and Mechanical Suspension
• Strength Chassis Construction

Specifications:

Dimension:L*W*H	13700*2480*1580(mm),1540,1500
Landing leg setting	2640(mm)
Kingpin plate height	1203(mm)
Axle Space	11980+1310+1310(mm)
Tare Weight	5250kg
Payload	40000kg
G.V.W.R	45250kg

Configrations:

Landing Gear	one-side operation
King pin	2"welding type
Brake system	Dual line pneumatic brake system
ABS	yes
Brake Chamber	Type 30/30 spring brake chamber
Axle	FUWA axle ,13ton capactiy/ set, 3pcs
Tire	425/65R22.512pcs
Rim	13.00*22.5, 12pcs
Main beam	501/10/5/12
Tool box	one
Spare Tire Carrier	two
Paint	color is according to customer's request

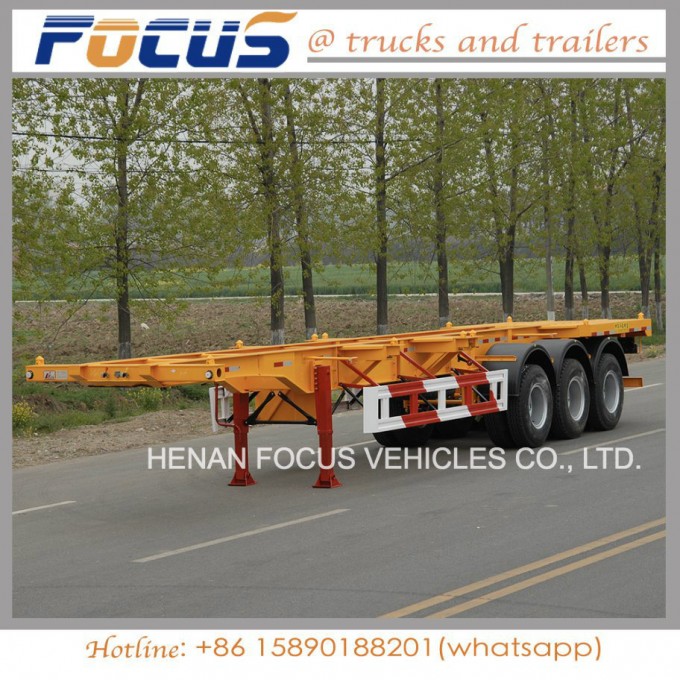

Details of the 40ft skeletontrailer for your reference

Customized:
1-trailers for 20ft,30ft,40ft,45ft,48ft,50ft,53ft container shipping
2-flatbed or skeleton chassis type
3-Main beam:500mm height
4-material of the main beam: Q345
5-Suspension: spring suspension, Rigid, single point, bogie or air suspension
6-Axles number: 23 4axles.
8-Jost landing gear, FUWA axles and Tri-angle tires
9-extendable or sliding type optional

TRAILER MANUFACTURING

The trailers production is based on modern technology and processes.
Flow from the production
The DFT production
Laser cutting
Flame cutting
Robot welding
Bolts and nuts
metallization
Blasting
...nothing is left to chance to ensure the semi trailers quality.

Buying Guides
1**You please send us your enquiry;
2**We shall reply you with the quotation within 12 hours;
3**We negotiate on the configuration that you need;
4**Confirmation of the tech data →sign contract (P/I) →30% deposit (or L/C issuing)→ production;
5**Manufacturing process updated news →completing production;
6**Balance payment →ex works →shipment →custom clearance →A/S service for 1year.
