TECHNICAL HIGHLIGHTS:
• Carrying for dry cargos, 1*40ft or 2*20ft containers
• High Quality Body
• BPW, FUWA or Certificated Chinese Axles
• ABS brake system
• JOST or Chinese brand parking leg and king pin
• Air and Mechanical Suspension
• Strength Chassis Construction
Specifications:
| Item | Unit | Quantity | Notice |
| Overall dimension | detail according to the drawing | ||
| Axle | piece | 3 | FUWA-13T |
| Tyre | piece | 12 | 11R20-16PR,Triangle Tire without spare tire |
| Rim | piece | 12 | 8.0-20 |
| Leaf spring | piece | 6 | 90width*10pieces*12 thickness |
| Braking system | set | 2 line air braking system with air tank ,emergency relay valve,braking chambers and mechanical slack adjusters. | |
| Electrical system | set | 1 | 24 volt electrical system.7 pin electrical connector.parking .stop,reverse,number plate and indicator lights.rear lights conform to European standard,rear front and side reflectors |
| Suspension | set | 3 | Standard CIMC Suspension |
| Relay valve | whole vehicle | 1 | WABCO |
| Landing gear | pair | 1 | JOST C200 |
| Kingpin 2" | piece | 1 | 50# Welded |
| Tie-in | piece | 2 | haldex |
| Chamber | piece | 2 | stored chamber 2 units T30/30 |
| Upper and lower wing plates | 14/16mm,width146mm, using the highly quality Q345 steel, | ||
| Twist locks | 12 | can load 1*40ft,2*20ft,1*20ft container | |
| Main beam | height: 500mm webplate:6mm using the highly quality Q345 steel | ||
| Reflectors | Red triangle reflectors at the rear of the trailer and on side | ||
| Shotblasting and paint | Chassis is comletely shor blasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIonAL alkyd FINISH TOP coat.total 80-100 microns. | ||
| Spare tyre carrier | 2 | standard | |
| Color | according to required on customer | ||

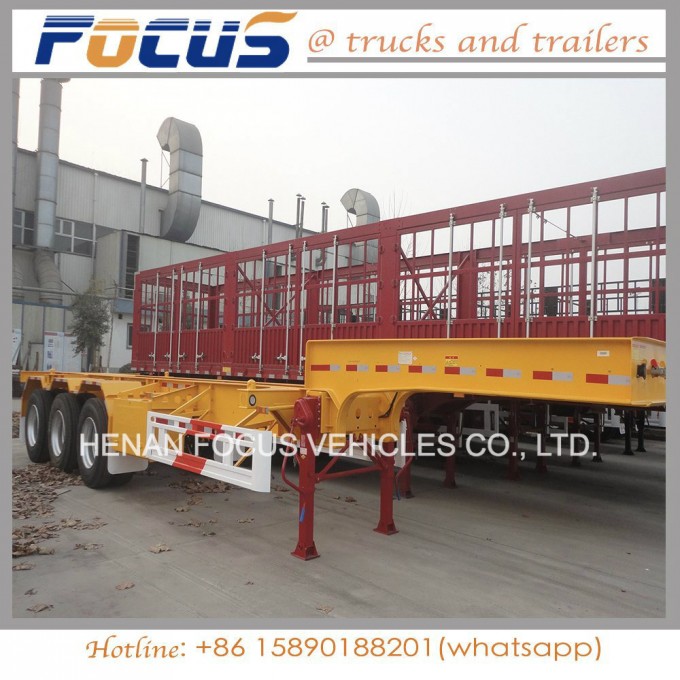

Details of the 40ft skeletontrailer for your reference
Customized:
1-trailers for 20ft,30ft,40ft,45ft,48ft,50ft,53ft container shipping
2-flatbed or skeleton chassis type
3-Main beam:500mm height
4-material of the main beam: Q345
5-Suspension: spring suspension, Rigid, single point, bogie or air suspension
6-Axles number: 23 4axles.
8-Jost landing gear, FUWA axles and Tri-angle tires
9-extendable or sliding type optional
TRAILER MANUFACTURING
The trailers production is based on modern technology and processes.
Flow from the production
The DFT production
Laser cutting
Flame cutting
Robot welding
Bolts and nuts
metallization
Blasting
...nothing is left to chance to ensure the semi trailers quality.
Buying Guides
1**You please send us your enquiry;
2**We shall reply you with the quotation within 12 hours;
3**We negotiate on the configuration that you need;
4**Confirmation of the tech data →sign contract (P/I) →30% deposit (or L/C issuing)→ production;
5**Manufacturing process updated news →completing production;
6**Balance payment →ex works →shipment →custom clearance →A/S service for 1year.
