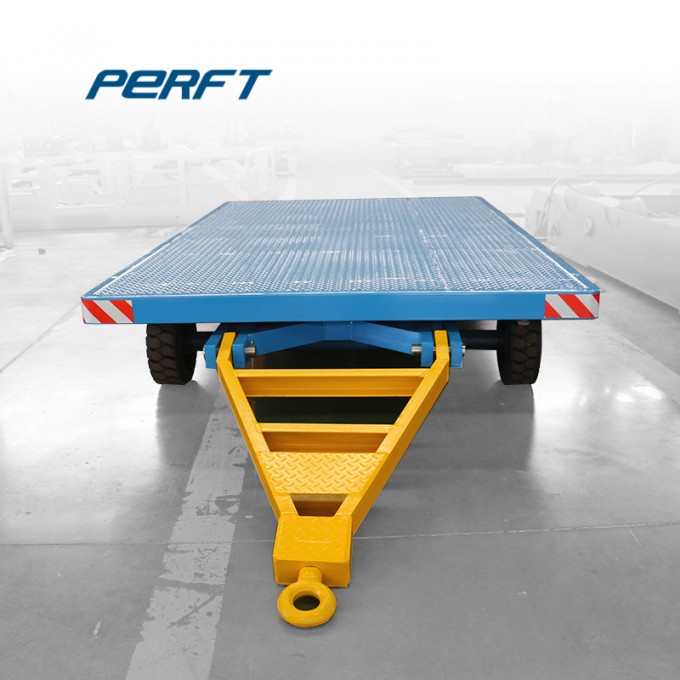

Plant Bogie Transfer Wagon Flatbed Transport Truck Transfer Trailer

Plant bogie transfer wagon flatbed transport truck transfer trailer
Introduction:
There is no power and motor inside of the trailers,theyarepulled or towed by another powered transfer cart or a forklift which withadequate power to move cargo from one place to another.Because of its simple structure,It is cheap compared with some other powered carts. So it is a best choice for you to save some cost.Our product can be customized, so you can cooperate with us freely and get the product you need.



Production ProcessCNC Cutting
The steel plate is transported from warehouseto CNC cutting workshop for cutting.
Preliminary Assembling
Workers putthe cut steel plate together according to the design drawing.
Welding
Weld the steel plate with automatic welding machine after the pliminary assembling.
Post weld treatment
Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress.
Spray Primer
Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint.
Assembling
Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
Paint finish
Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish.
Debugging
Debugging the cart after painting the finish with electric control system, after the debugging, the cart will be testedwithout loadand then with load
After the inspection, the cart will be transported to storage area.
Parameter

Model	BWT-2T	BWT-5T	BWT-10T	BWT-15T	BWT-20T	BWT-30T	BWT-45T	BWT-60T
Rated Load(T)	2	5	10	15	20	30	45	60
Table Size(mm)	2000*1500	2500*1500	3000*2000	3200*2000	4000*2000	5000*2200	6000*2400	6000*2500
Height of Trailer (mm)	500	600	700	750	750	800	850	950
Wheel Quantity	4	4	8	8	8	12	12	12
Tire Specification	254*102	305*165	559*254	559*356	22*9-10	22*9-10	22*10-16	22*14-16
Tire Material	Polyurethane Solid Wheel, Press-on Solid Tire
frame Material	Q235	Q235	Q235	Q235	Q235	Q345	Q345	Q345
Color	Customized
Speed(km/h)	0-20	0-20	0-20	0-20	0-15	0-15	0-15	0-10

Our Factory
Henan Perfect Handling Equipment Co., Ltd. offers both standard solutions and customized solutions specially conceived to solve specific and complex handling needs. We have been specializing in steel frame trailer manufacture for over 15 years. With advanced equipment, excellent engineers and professional workers, we have got the certificates of CE, SGS, ISO. Our products not only have sold across the country,but also exported to US,Germany,Thailand,Netherlands,South Africa,Syria,Turkey,Nepal and many other countrys.





Packaging & Shipping
The bodyof the cart is packed with tarp, the small parts will be packed with wooden cases. According the table size and quantity, the cart would becarefully fixed andtransported by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.

Other pruducts
We are a professional company in the product of materimal handling eqipment.We produce a wide range of transfer wagon such as coil transfer carts, battery powered carts, cranes and many other different kinds of products. If you need special type, customization is also accepted. According to your demands, we can assure that you will be satisfied with our product and service.
