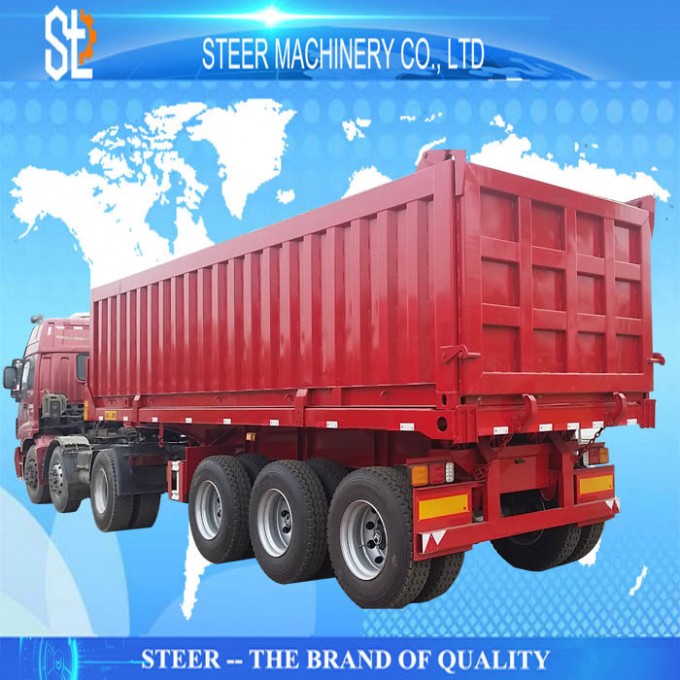

3 axle end dump truck trailer tipping trailer for sale
Basic info
| payload | 40 T |
| Size | 9000mm*2500mm*3800mm |
| Main beam | automatic welding with Q235 Bsteel , |
| box | thickness according to the net payload from the customers requirement |
| Cross member | Q235 B steel |
| type | End dump |
| Side wall | reforced |
| Front board | including |
| Axle | Fuwa or optional. 16 ton axles |
| Suspension | Mechanical suspension |
| cylinder | #196 or # 214 |
| Tire | 12R22.5 or optional 12 pcs |
| Kingpin | 3.5 or 2.0 |
| Landing gear | JOST C200 |
| Braking system | WABCO braking valve |
| ABS | Optional |
| Painting | anticorrosive prime 1time ,final paint 2times |
| Accessories | tool box, side fence ,rear fence ,tire rack etc |
| Date of delivery | 15-30 days after the deposit |
Des
cription
Breaking pads with good quality to enlarge the working length in order to reduce the cost of changing , is able to enlarge hundreds of kilometers .
The leaf spring of the semi trailer is usually ten pieces which is much stro
nger than the normal type. And for the special type of the semi trailers, the bogie suspension is available too.
Twist lock of the co
ntainer transport trailer will be adopted with 12 sets which will be able to charge 1 40 ft container, 2 20 ft co
ntainer or 1 co
ntainer 20 ft in the middle. The design will be useful for the customers for the overweight checking .
The tire will be optio
nal by the clients. And for the heavy duty type of the semi trailers, we will make the suitable ones. And in order to meet the different requirements of the marketing area, the special type will be used too such as in Gabon , Africa we will chose the 13R22.5 instead of 12R22.5 o
nes 'cause of local requirements .
a
bout the shipping , there are special design for the trailers in order to reduce the cost of shipping. Like the front of the rear. And we have the special part for the shipping arrangement which can provide the professio
nal support to reduce the cost of the shipping .
The lifting systems are o
nly used on the tipping van trailers and the tipping co
ntainers . The model of the lift cylinder, there are #172 #196 #214 and the special type for the side tipping.
The vice beam of the tipping trailer are im
portant type too. The vice beam will designed according to the total payload of the trailers, we will increase the density in order to make the trailers stronger. And the vice beam is the powerful guarantee of safety lifting .
All trailers will adopt the superior steel to guarantee the quality and good looking out side. And the painting of the semi trailers will be made by the Polyurethane to pvent the rust while the shipping and the using .
Reference drawing
Our service
(1) The trailer must striectly tested before the shippment to guarantee the customer's profit
(2) 1year warranty without man-made broken
(3) 24 online solving all the questions about the technical or othere
(4) English, French, Spainsh support with special servers .
(5) Spare parts are available all the time
(6) Regular follow-up to guarantee the trailer in good condition .
