Heavy Duty Truck Container Trailer, Semi Trailer

Heavy duty truck container trailer, semi trailer

TECHNICAL HIGHLIGHTS:

• Carrying for dry cargos, 1*40ft or 2*20ft containers
• High Quality Body
• BPW, FUWA or Certificated Chinese Axles
• ABS brake system
• JOST or Chinese brand parking leg and king pin
• Air and Mechanical Suspension
• Strength Chassis Construction

Specifications:

Dimension:L*W*H	12392×2495×1540(mm)
Kingpin setting	800(mm)
Kingpin plate height	1203(mm)
Axle Space	7400mm+1310mm+1310mm
Tare weight	7500kg
Payload	40000kg
G.V.W.R	47500kg

Configrations:

Lanidng Gear	Two speed manual operation type
Kingpin	3.5" welded type
Brake system	Dual line pneumatic brake system
ABS	YES
Brake Chamber	Type 30/30 spring brake system on all axles
Suspension	spring suspension
Axle	FUWA /BPW axle, 13 ton capacity/set,3PCS
Tire	12.00R20, 12PCS
Rim	8.5-20, 12PCS
Floor	3mm checked plate

Twist Lock	12 sets
Main Beam	500/14/6/16
Side Beam	16# channel steel
Cross Beam	Square tube
Tool Box	1 pcs
Spare Tire Carrier	2 units
Paint	As customer's request

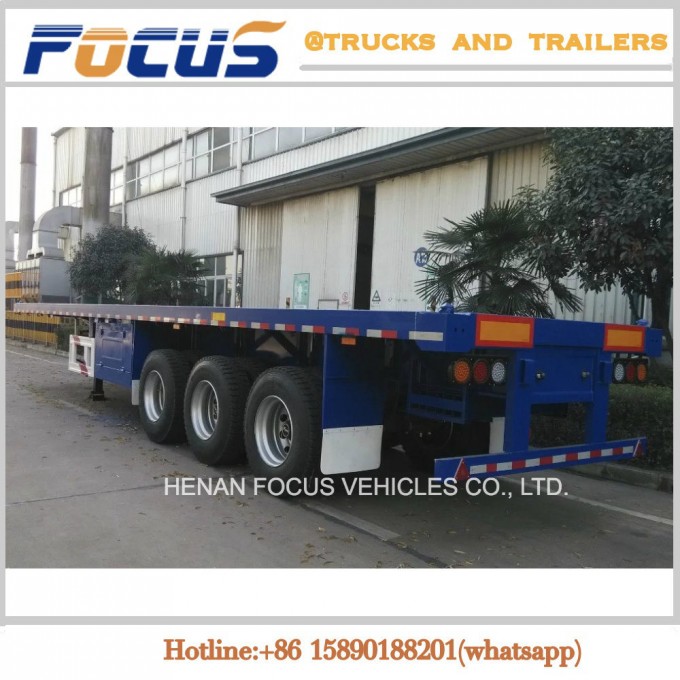

Details of the 40ft flatbed trailer for your reference

Customized:
1-trailers for 20ft,30ft,40ft,45ft,48ft,50ft,53ft container shipping
2-flatbed or skeleton chassis type
3-Main beam:500mm height
4-material of the main beam: Q345
5-Suspension: spring suspension, Rigid, single point, bogie or air suspension
6-Axles number: 23 4axles.
8-Jost landing gear, FUWA axles and Tri-angle tires
9-extendable or sliding type optional

TRAILER MANUFACTURING

The trailers production is based on modern technology and processes.
Flow from the production
The DFT production
Laser cutting
Flame cutting
Robot welding
Bolts and nuts
metallization
Blasting
...nothing is left to chance to ensure the semi trailers quality.

Buying Guides
1**You please send us your enquiry;
2**We shall reply you with the quotation within 12 hours;
3**We negotiate on the configuration that you need;
4**Confirmation of the tech data →sign contract (P/I) →30% deposit (or L/C issuing)→ production;
5**Manufacturing process updated news →completing production;
6**Balance payment →ex works →shipment →custom clearance →A/S service for 1year.
