Basic Information | ||||
Country of Origin | China | Vehicle Condition | Brand New | |

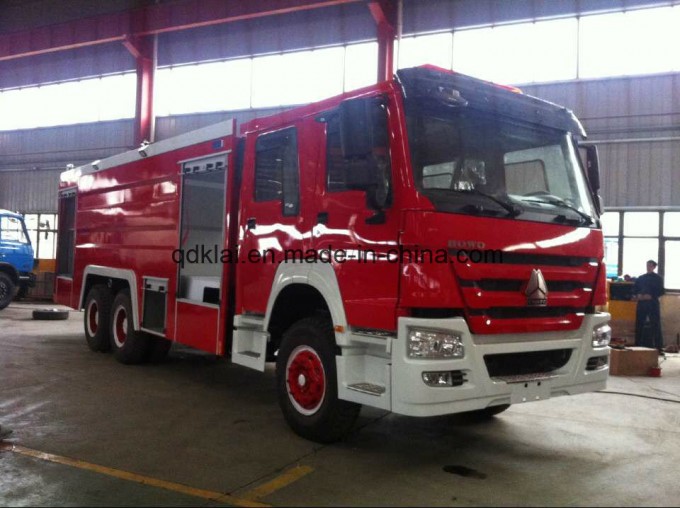

Vehicle name | Fire Truck | Chassis brand: | SINOTRUCK HOWO | |
Drive Model | 6X4 | Steering Control | LHD/RHD | |
Outline size(L×W×H) (mm) | 10275×2500×3600 | Emission standard | Euro 3 | |
Empty mass(Kg): | 14800 | Full mass(kg) | 27600 | |
Engine Information | ||||
Model | WD615.92C | Type | 6 Cylinder Diesel engine | |
Power/displacement(KW/ML) | 213(290HP)/9726 | Manufacture | SINOTRUCK | |
Chassis Information | ||||
Wheelbase(mm): | 4600+1350 | Axle load(kg) F/R | Front :8700/Rear :18900 | |
Tire | 12.00R20 | Max speed (km/h): | 90 | |
Front overhang(mm) | 1500 | Rear overhang(mm) | 2800 | |
Front track(mm) | 1939,1958 | Rear track(mm) | 1800,1830 | |
Approach angel(°) | 16 | Departure angle(°) | 10 | |
Gearbox | Manual, 10forward, 1reverse | |||
Cabin | Four opening doors, Double-row cab, allow 6 passengers | |||
Special function | ||||
Water Tank Capacity | 12000Litres (3170 Gallon) | |||
Foam Tank Capacity | 3000Litres (790 Gallon) | |||
Fire monitor | Model: PL48-64D Water Flow Rate :50L/S Foam Flow Rate:48L/S(adjustable) Water range:≥60m/1.0MPa Foam range:≥50m/1.0MPa | |||
Fire pump | Normal Pressure pump :CB10/60 Flow :60L/S Pressure: 1.0Mpa Max Suction Height: 7m Max Water Suction Time: ≤50S | |||
Fire fighting accessories | ||||
Water suction pipe | 150*2m 4units | |||
Water filter | FLF150 1units | |||
Wrench for water suction pipe | 2unis | |||
Water segregator | FIII80/65×3-1.0 1units | |||
Water hose | 13-80-20 2units | |||
Water hose | 13-65-20 2units | |||
connector | 65/80 2units | |||
connector | 65/65 2units | |||
Belt bridge | 1units | |||
Post fire hydrant wrench | 1units | |||
Flush fire hydrant wrench | 1units | |||
DC water spraying gun | 1units | |||
Air Foam Gun | 1units | |||
