Detailed Description
CIMC Brand Flat Low Bed Trailer Loading Excavator Loader Trailer Truck
SHIPMENT: By Vessel
PAYMENT: 70% deposit by T/T before production, 30% balance by T/T before shipment.
DELIVERY TIME: 25 days after receiving your 70% deposit
OFFER VALIDITY: 30 days
MODEL ZJV9380TJZP
Des
cription of vehicle 40'
Axle 3-axle 13ton FUWA
Or CIMC Brand
Outrigger JOSTZ20 Or Holland/FW/TSU
Gross weight (kg) 37680
Tare weight (kg) 7200
Payload (kg) 30480
External dimension (L*W*H) mm 12450
x2498x1510
Wheel ba
se(mm) 7190+1310+1310
Track spac
e(mm) /1830
Tires 11.00R20 tires Rim: 8.0R20
No of tire 12
Leaf spring 7/7/7, 8/8/8
No of Lock 12
The rear axle location(mm) 1640
King pin location(mm) 1000
Leave angle(° ) 18
The fifth wheel load(kg) 14000
BRAKE SYSTEM: ABS SYSTEM Can be optional
Public notice 107
Trail pin 2" (3.5" canbe optioned)
CHASSIS Designed to carry 1 x 40 ft, or 2 x 20 ft, or dry cargoes. Provided with 12 Nos. Retractable type Multilock twist locks
Main Beams 500mm height, Low Alloy (Q345 ) by automatic submerged
Arc welding; Top Flange 14mm, Bottom Flange 16mm, Middle Flange 6mm.
Load Platform 3mm thickness anti-slip floor.
| Dimension(mm) | L*W*H:13600x2500X1800(mm) |
| Axlespace(mm) | 6950mm+1310mm+1310mm |
| Tareweight(kg) | 6900kgs |
| Max.Payload(kg) | 50000kgs |
| G.V.W.R. | 57000kgs |
| Landinggear | linkagetype,twospeedwithsandshoe |
| Kingpin | 3.5"Weldedtype |
| Suspension | Airsuspension |
| Axle | BPWaxle,13toncapacity/set,3pcs |
| Tire | 425/65R22.5tubelesstire,6Pcs, |
| Twistlock | 12units |
| Sparetirecarrier | 2units |
| Mainbeam | 500,14/6/16 |
| Sidebeam | 16#channelsteel,160mmheight |
| Floor | 3mmcheckedplate |
| Lights,electrical,accesories | yes,24volts, |

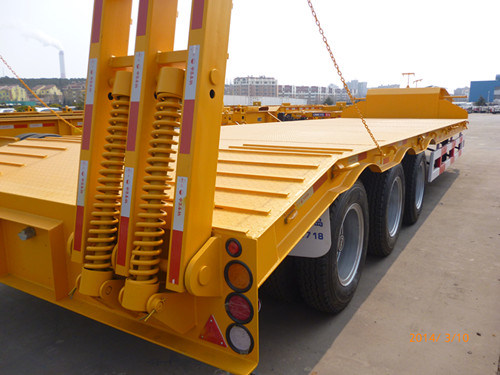

Product Image
