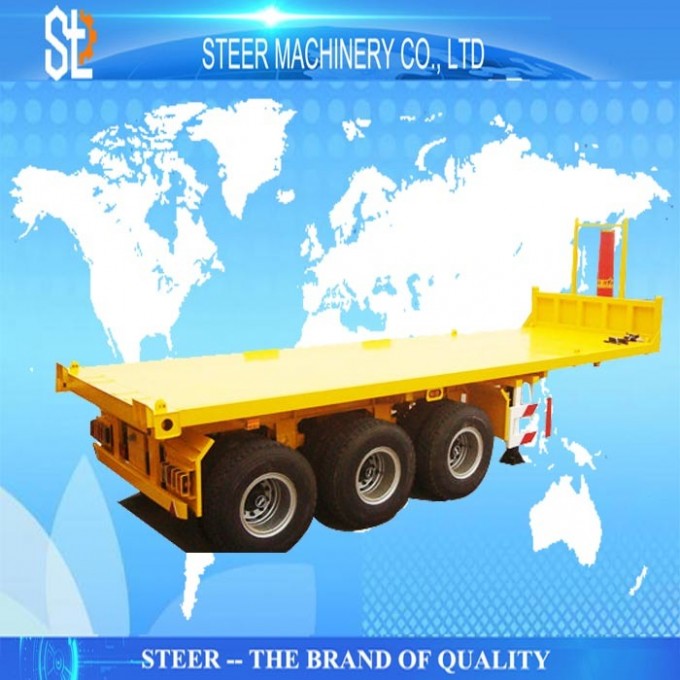

3 Axle Container Chassis Semi Truck Flatbed Trailer

3 axle container chassis semi truck flatbed trailer




Basic info

payload	60 T
Size	12500mm*2500mm*1500mm
Main beam	automatic welding with Q235 Bsteel ,thickness of 14/16/8 mm for the main beam
Side beam	channel steel #16
Cross member	Q235 B steel
Floor	3 mm checked steel
Side wall	available
Front board	flaxible
Axle	Fuwa or optional. 13 ton *3 pcs
Suspension	Mechanical suspension
Leaf spring	10 pcs heavy duty suspension
Tire	12R22.5 or optional 12 pcs
Kingpin	3.5 or 2.0
Landing gear	JOST C200
Braking system	WABCO braking valve
ABS	Optional
Painting	anticorrosive prime 1time ,final paint 2times
Accessories	tool box, side fence ,rear fence ,tire rack etc
Date of delivery	15-30 days after the deposit

Description

The tire will be optional by the clients. And for the heavy duty type of the semi trailers, we will make the suitable ones. And in order to meet the different requirements of the marketing area, the special type will be used too such as in Gabon , Africa we will chose the 13R22.5 instead of 12R22.5 ones 'cause of local requirements .

about the shipping , there are special design for the trailers in order to reduce the cost of shipping. Like the front of the rear. And we have the special part for the shipping arrangement which can provide the professional support to reduce the cost of the shipping .




Reference drawing





Our service

(1) The trailer must striectly tested before the shippment to guarantee the customer's profit

(2) 1year warranty without man-made broken

(3) 24 online solving all the questions about the technical or othere

(4) English, French, Spainsh support with special servers .

(5) Spare parts are available all the time

(6) Regular follow-up to guarantee the trailer in good condition .
