Loading Capacity:30 to 70 TonsSpecifications:
Item | Unit | Quantity | Notice |
Overall size | | | 15000length*3000width*3150height, height will be adjusted according to the tractor |
axle | piece | 4 | 13T FWA |
tyre | piece | 16 | 11.00R20 |
rim | piece | 16 | 8.0-20 |
leaf spring | piece | 8 | 100mm width*10pcs*16mm thickness |
suspension | set | | reinforced type |
relay valve | whole vehicle | 1 | WABCO |
landing gear | pair | 2 | front : JOSTA400, one sides operation rear: JOST 14 inch |
kingpin | piece | 1 | JOST90# bolted type |
tie-in | piece | 2 | haldex |
chamber | piece | 8 | stored chamber T30/30 |
twist lock | piece | 12 | can load 1*40'' container |
floor | | | 6.0MM checkered type |
upper and lower wing plates | | | 20/25mm,using the highly quality Q345 steel, |
main beam | | | 600mm,webplate:14mm using the highly quality Q345 steel |
side beam | | | 294Height H Steel Section |
cross beam | | | 12# channel steel |
ramp | | | width: 800mm, double spring reinforced type, length depends on the drawing |
reflectors | | | Red triangle reflectors at the rear of the trailer and on side |
tool box | | 1 | standard |
spare tyre carrier | | 2 | according to our design |
color | | | according to your required RAL color code |

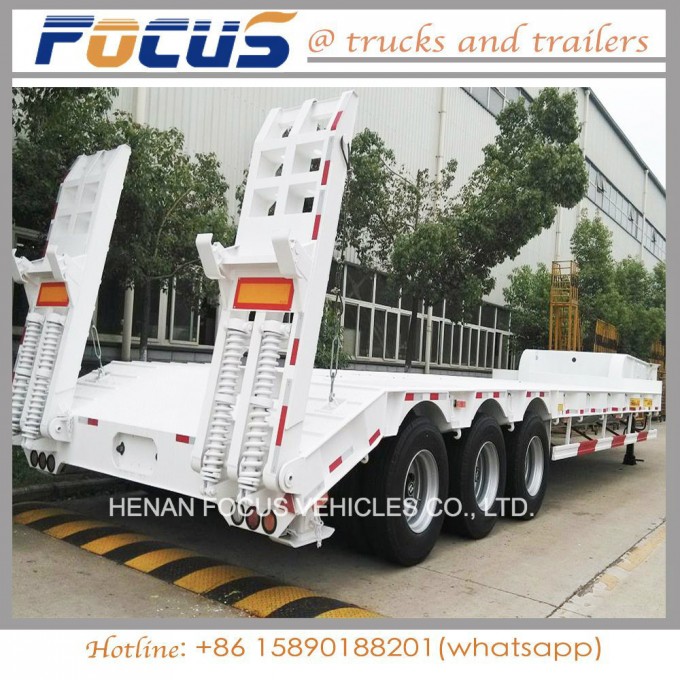

Details of the lowbed trailer for your reference

Customized:
1-Lowbed trailers for excavators or other construction equipments transport
2- The loading surface can be customized
3- The thickness of the loading surface can be thicker to load heavy stones or equipments.
4-material of the main beam: Q345
5-Suspension: spring suspension, Rigid, single point, bogie or air suspension
6-Axles number: 23 4axles.
8-Jost landing gear, FUWA axles and Tri-angle tires
9-extendable or sliding type optional, extendable wing for wider width of loading surface
10- Can add 4 twist locks for 20ftcontainer transport also

Buying Guides
1**You please send us your enquiry;
2**We shall reply you with the quotation within 12 hours;
3**We negotiate on the configuration that you need;
4**Confirmation of the tech data →sign contract (P/I) →30% deposit (or L/C issuing)→ production;
5**Manufacturing process updated news →completing production;
6**Balance payment →ex works →shipment →custom clearance →A/S service for 1year.
Why Choose Focus vehicles?
--WHAT ARE OUR ADVANTAGES ?
**Competitive price--We work as the leading dealers of Various leading China TRUCKS and SEMI TRAILERS, and Construction machinery manufactures/factories, and are treated with best dealership prices every year. From comparison and feedbacks from clients, Our price is more competitive than others even manufacturers/ factories.
**Ouick Response--Our team is consisted of agroup of dilligent and enterprising people.Working 24/7 to respond client inquires and question all the time. Most problems can be solved within 12 hours.
**Fast Delivery--Normally it will take more than 30 days for manufacturers/factories to produce the ordered machine, while we have avariety of resources, locally and nation widely, to receive machines timely manner.
--WHICH PAYMENT TERMS CAN WE ACCEPT?
Normally we can work on T/T term or L/C term.
**On T/T term, 30% downpayment is required in advance, and 70% balance shall be settled before shipment, or against the copy of origial B/L for old clients.
**On L/C term, a100% Irrevocable L/C without "soft clauses" can be accepted. Please seek the advice from the individual sales manager whom you work with.
--HOW LONG WILL OUR PRICE BE VALID?
We are atender and friendly supplier, never greedy on windfall profit. Basically, our price remains stable through the year, We only adjust our price based on two situations:
** The rate of USD: RMB varies significantly according to the international currency exchange rates.
** Manufacturers/Factories adjusted the trucks and machinery price, becaue ofthe increasing labor cost, and raw material cost.
--WHAT LOGISTICS WAYS WE CAN WORK FOR SHIPMENT?
We can ship trucks, trailers and machinery by various transportation tools.
**For 90% of our shipment would go by sea, to all main continents such as South America, Middle East, Africa, Oceania and Europe etc. either by container or RoRo/Bulk shipment.
**For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan etc., We can ship trucks trailers, machinery by Road or Railway.
**For light spare parts in urgent demand, we can ship it by international courier service. such as DHL, UPS, TNT, or Fedex.

Contact:
Sindy Chen
Mobile:+ 86 15890188201
Facebook, linkedIn: Sindy Chen
