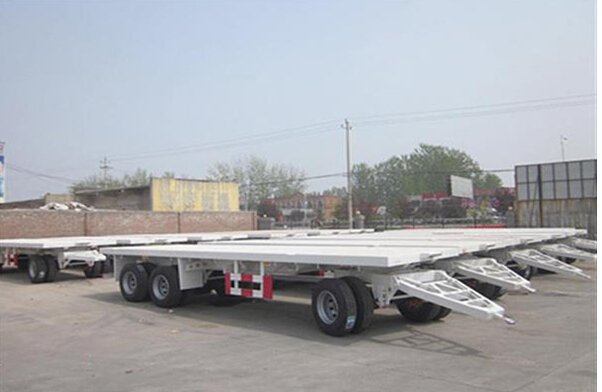

| Tare Weight (Dolly Trailer) | about 5.6-8T |
| Dimension | 12450mm × 2490mm× 1575mm (Size can be tailored to suit individual needs.) |
| Loading Capacity (T) | ≤ 45 T |
| Axle | 13 T/16T, FUWA /BPW /Huajing Brand |
| Rim | 9.00-22.5 9.75-22.5 |
| Tire | 12.00R22.5/ 315 80R22.5 |
| Suspension | Mechanical suspension (German or American type)Or Air suspension (Chinese or BPW brand ) |
| Spring Leaf | 90(W)mm×13(Thickness)mm×10layers or 100mm×12mm×12layers |
| King Pin | JOST brand 2.0 or 3.5inch (bolted or welded type) (Optional)or use turntable (also known as the Fifth Wheel) (Diameter:1.1m) |
| Draw Bar | 4×4 or 4×6mm square tube (length: 1.4m ) |
| Tractor Hook | DN50 |
| Landing Gear (support leg) | This dolly trailer does not need landing gear. |
| Main Beam | Height: 500mm Upper plate: 14mm Middle plate: 8mm Bottom plate: 16mm Material: Q345B steel |
| Side Beam | 16mm or 18mm channel steel (Material:Q235steel ). |
| Bottom Platform | 3mm-thick checkered plate |
| Brake Chamber | WABCO RE 6 relay valve; T30/30+T30 spring brake chamber (TKL brand); 45L air tanks (Specially intended for oversea markets) |
| ABS | Optional |
| Twist Locks | Four ,Eight or Twelve pieces (lifting type or screw type) |
| Valve | WABCO valve |
| Light | LED light(Specially intended for oversea markets) |
| Voltage | 24V |
| Socket(Receptacle) | 7-pin Socket (for 7 wire harness) |
| Tool Box | 1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.) |
| Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats. |
| Shipping Terms | Transported by the bulk carrier in an RORO or 40HQ container. |
