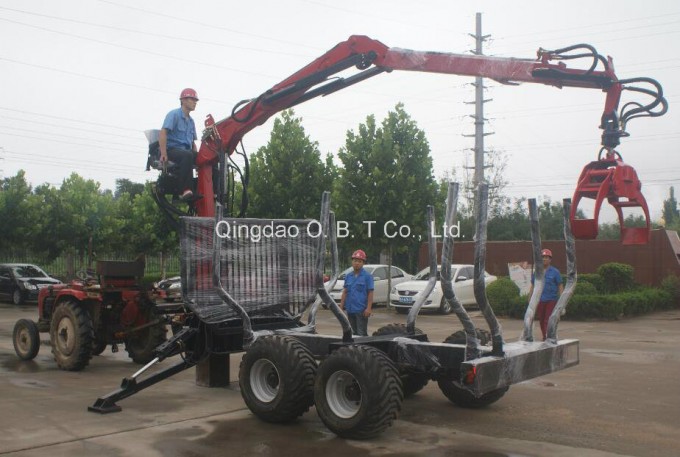

ATV Log Loader Trailer with Crane

Technical parameters:
Overall dimension:5250*2485*2500mm
Carrier dimension:3250*1980*2000mm
Load capacity:10000kg
Net weight:2600kg
Tires:400/60-15.5*4pcs

Hydraulic mechanical arm
Max reach:6meters
Max grab diamters of wood:1.1meters.
Rotary torque:18KN*M
Paramter of hydraulic:System pssure 16Mpa,

Equipped mortor:60-100HP

Advantage of log trailer with crane

This machine1:1In accordance with the German drawings, materials, accessories production

The grasping arm material is Q460 steel, hydraulic operation is divided two parts, control valve {overall imported Italian brand HC} and integrated valve block {Shanghai Shen Su skin (spool is HC import licensing)}, domestic hydraulic parts we are tested, there are oil spills and unstable operation {phenomenon when speed is not consistent, inconsistent}.
