Torsion axle with electric brake&scania truck original spare parts
OBTaxle Features:
1). Excellent shock absorber based on special structure of axle,there has rubber block inside.
2). Special heat-treated, low-alloy steel axle beam, offers more stability, greater capacity and lighter weight.
3). Forged camshafts with hardened wear surface for the axle
4). Solid inserted spindle and bearing journals laser heat treated, provide superior fatigue capability.
5). High performance pmium non-asbestos brake linings, extend service life.
6). Easy for ABS installation.
Torsion axle with electric brake&scania truck original spare partsDetails:
Model | Max .Capacity(KG) | Total length(mm) | Track(mm) | Center Distance of Leaf Spring(mm) |
OBTTE05 | 500 | 1714 | 1595 | 1160 |
OBTTE75 | 750 | 1714 | 1595 | 1160 |
OBTTE10 | 1000 | 1714 | 1595 | 1160 |
OBTTE125 | 1250 | 1714 | 1595 | 1160 |
OBTTE15 | 1500 | 1714 | 1595 | 1160 |
OBTTE18 | 1800 | 1714 | 1595 | 1160 |
Tube(mm) | Studs | PCD(mm) | BCD(mm) | Swinging arm angle | Swinging arm length(mm) |
50*50 | 5-0.5*20 | 114.3 | 64 | 23 | 137 |
60*60 | 5-0.5*20 | 114.3 | 64 | 23 | 137 |
70*70 | 5-0.5*20 | 114.3 | 64 | 23 | 173 |
80*80 | 5-0.5*20 | 114.3 | 78 | 23 | 137 |
80*80 | 6-0.5*20 | 139.7 | 78 | 23 | 137 |
90*90 | 6-0.5*20 | 139.7 | 78 | 23 | 137 |
Note: Other Specification is available upon request.
1.Half torsion axle with electric braking and galvanizing.

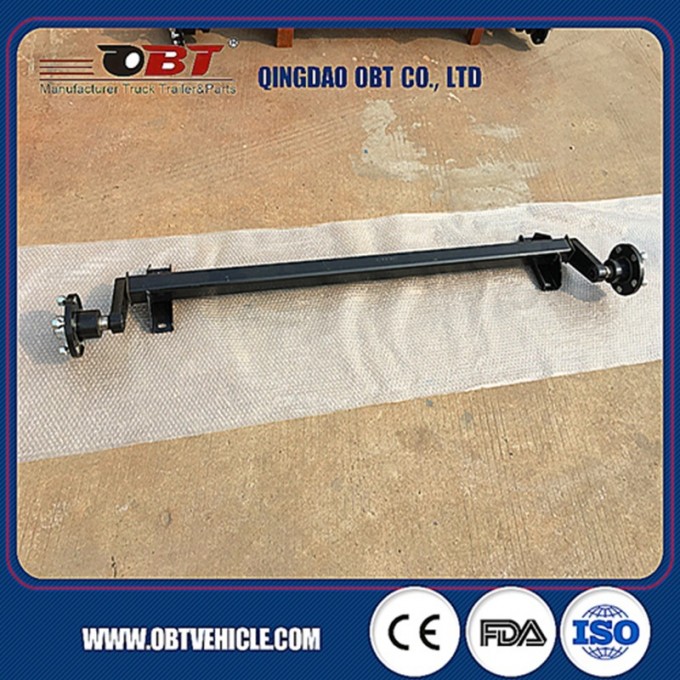

2.Torsion axle without braking with black color.
Why choose OBT rubber torsion axle half torsion axle 750KG,1000KG ?
1.OBTaxle beam use 20Mn2 seamless pipe, through one-piece pss forging and special heat-treatment,which has great over loading capacity and high intensity.
2.OBTaxle spindle,which wasprocessed by digital controlled lathe, is made of alloy material. The bearing position is processed by the method of hardending operation,therefore the bearing can be fixed by hand instead of heating, also convenient for maintain and fixing.
3.OBTaxle spindleis connected by the bysubmerged -arc welding, which make the whole beam more reliable and solid.
4.OBTaxle bearing positionis used the grinding machine to keep the bearing at the same level, after processing, it can assure that the concentricity within 0.02mm strictly.
5.OBTaxlegrease lubricantis suppliedby EXXON Mobilewhich could provide high lubricating performance and protect bearing well.
6.OBTaxle brake liningis high performance,non-asbestos, non-pollution and long service life.To make check and replace easily, also come with the position of the exhaustion to remind customer to check and maintain.
7.OBTaxle bearingis adoptedfamous brandin China, with the advantages of over loading capability, High rotating speed, good intensity, abrade resistant and heat resistant.
8.OBTaxlewheel hubandbrake drumuse theinternational standard material of ball iron and gary ironseparately, which has the advantages of over loading capability, abrade resistant, heat resistant and do not distort.
9.OBTaxlebeNational Automobile Monitor and Inspe ction Center certified,axle shaft that undergoes over 1.2 million times of Fatigue testing and built to meet or exceed national industry standards.
Welcome to your further contact.
