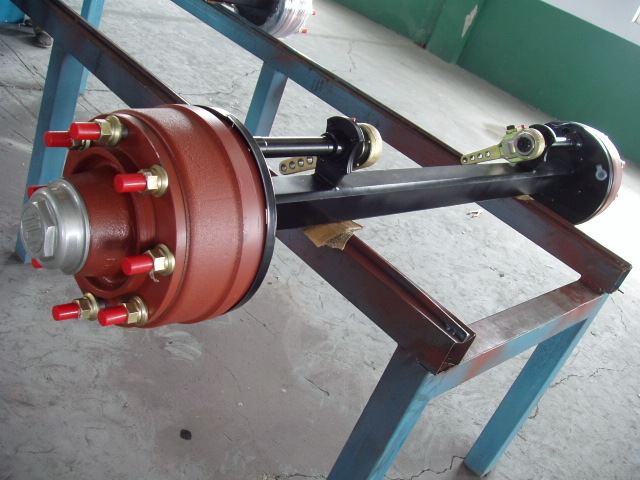

Qingdao OBT 6T 8T Agricultural Axle
1. ISO9001: 2008 & TS16949
2. Light axle,heavy duty axle we produce
3.Factory fair price.
Characteristics:
1. Special heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability.
3. High performance pmium non-asbestos brake linings, estend serbice life.
4. Easy for ABS installation.
5. Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety.
6. New tight fit hub cap habe O rings, high property for sealing.
7. Grease lubricant is supplied by Mobil that lengthens the time of free maintenance.
8. Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims.
Scope of our business:
1. Axles (German type axle, English type axle, American type axle, Spoke axle, ZM axle, Agriculture axle, Half axle, Axle without brake)
2. Suspension (Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension)
| CAPACITY (T) | BRAKE SIZE(mm) | NO.Xsize of wheel stud(mm) | WHEEL REG. DIA (DIM.B)(mm) | BEARING | BEAM SIZE (mm) | TRACK LENGTH (mm) | DIM.D (mm) |
| 8 | 300*100 | 8*M20*275 | 220 | 32212 32215 | SOLID 90*90 | 1800 | 587.5 |
| 8 | 300*100 | 8*M20*275 | 220 | 32211 33014 | SOLID 80*80 | 1800 | 587.5 |
| 6 | 300*100 | 6*M20*275 | 220 | 32211 33010 | SOLID 60*60 | 1800 | 587.5 |
Technical parameters for your reference:
Other service:
We could make logo as your need
Please feel free to co
ntact me if you can't find the one you use.
