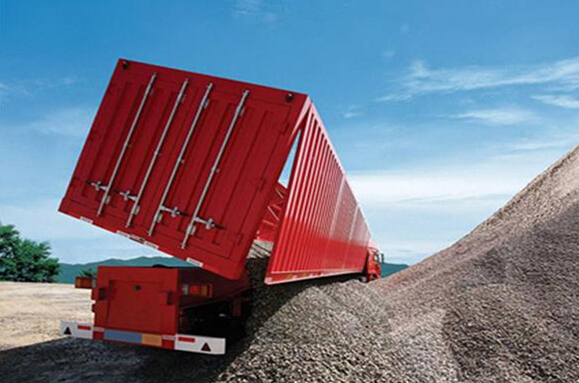

Side Semi Trailer Most Popualr in China

Dimension	9200×2400×3200mm ( outside dimension)9000×2200×1500mm (inside dimension )
Tare Weight	about 10000KGS
Total Volume ( m3 )	30 m³ or less than 50tons
Side wall thickness (mm )	2.3mm Q235 steel (three or five automatic opening doors )
Bottom Plate Thickness(mm)	3mm checkered plate /Q235 steel
Lifting System	Full set of hydraulic lifting system (four 125 diameter lifting cylinders, and one 140mm diameter lifting cylinder.)
Chassis
Main Beams	Height:500mm Upper plate: 16mm Middle plate: 8mm (2-in-1 or 3-in-1 plate) Lower plate: 18mm Material :Q345B steel
Axle	3 axles, FUWA/HUAJING brand 13tons or 16tons per axle
Landing Gear	JOST (D200T ) or Chinese brand 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/ American type /
Leaf Spring	90(W)mm×13(Thickness)mm×10 layers
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber; 45L air tank
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Various tire brands are available.
ABS	Optional
Painting	Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo or RORO The trailer size can be designed according to your special requirements. You can choose a 6×4 model truck for use with your semi trailer.

Wuhan Yueruixiang Technology Co., Ltd is a professional supplier of construction machinery and agriculture machinery, We are located in Wuhan City, Hubei province, China.

Our main products includes Construction machinery: Wheel loader, skid steer loader, Forklift, road roller, bulldozer, motor grader, excavator, plate compactor, rammer, concrete cutter, ect,

And Agriculture machinery: Tractors and farming implements(backhoe, front end loader, wood chipper, rotary riller, lawn mower, plough, disc harrow, planter, ect) which wins the high approval in European, South and North America, Africa, Middle East and Asia due to our high quality and exceptional after-sale service. The reliable quality source from the strict quality control system.

At psent, some of products have passsed CE certification and ISO9001 quality system and in recent years the company has introduced advanced sequence equipment and technology from America, Germany, which assure the level of technique and measure of detect of the company to reach the international advanced level and form the benigh cycle innovation system of researching, producting, sale and developing.

Welcome to contact with us at any time.
