| Tare Weight | about 7.6T |
| Dimension | 13000mm×2490mm×2860mm |
| Loading Capacity (T) | ≤ 60 T |
| Axle | 13 T/16T, FUWA /BPW /Huajing Brand |
| Rim | 9.00-22.5 9.75-22.5 (Specially designed for oversea markets.) |
| Tire | 12.00R22.5/ 315 80R22.5 (Specially designed for oversea markets.) |
| Suspension | Mechanical suspension (German or American Type) or air suspension (Chinese brand or BPW brand) (Specially designed for oversea markets.) |
| Spring leaf | 90(W)mm×13(Thickness)mm×10 Layers or 10mm×12mm×12 layers (Specially designed for oversea markets.) |
| King pin | JOST brand 2.0 or 3.5inch (bolted or welded type) |
| Support leg | JOST brand D200T or Chinese brand 28Tons (Double speed) |
| Main beam | Height: 500mm Upper plate: 14mm Middle Plate: 8mm
Bottom Plate is 16mm; Material: Q345B Steel |
| Side beam | 16mm or 18mm steel channel (Material: Q235steel ). |
| Bottom Platform | 3mm-thick checkered plate |

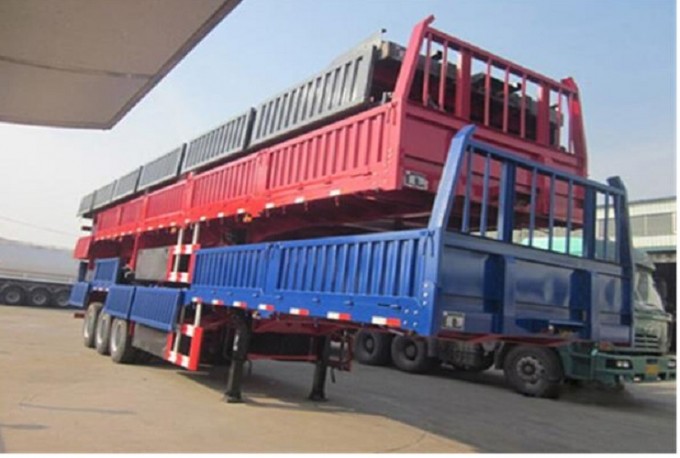

| Trailer Sides | 600mm -1500mm, or box type sides |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber (TKL brand); 45L air tanks |
| ABS | Optional |
| Twist Locks | Four ,Eight or Twelve pieces (lifting type or twist Screw type) |
| Valve | WABCO valve |
| Light | LED light (specially intended for oversea market ) |
| Voltage | 24V |
| Receptacle | 7-pin Socket (for 7 wire harness) |
| Tool box | 1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.) |
| Semi Trailer Surface Coating | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats. |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
