Top 1 Fire Fighting Equipment Manufacturer XCMG Official 68m Elevating Aerial Work Platform Fire Tru

Top 1 Fire Fighting Equipment Manufacturer XCMG Official 54m Elevating Aerial Work Platform Fire Truck DG68 for sale

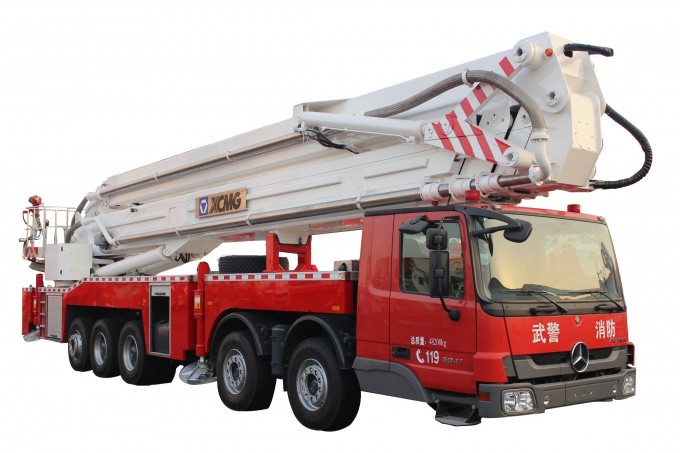

DG68Aerial Platform Fire Truck is an electric control hydraulic drive, full slewing and combined boom type giantmulti-purpose vehicle.
Operational height of DG68Aerial Platform Fire Truckis up to 68m, the rated working depth is 13.73m, rated load of platform is 400kg, max. working rangeis 23m, and BENS five-bridge chassisfor ultralowdriver's cab is adopted, weight of the vehicle is 48t. The outrigger istwo-echelontelescopictype, and the boom adopts Level-2 telescopic boom(four Level-1 booms and three Level-2 booms) combination, with a total of 7 joints. CANBUS-based variable pump constant pssure control systemis adopted for the control system, withapplication of servo proportional control, PLC integrated control, multimedia dynamic display and various other advanced technologies, which ensures the stability of boommovementas well as good micro mobility. The vehicle has 25 safety protection devices, which formsa perfect multi-layer protection system and intelligent fault diagnosis system.
DG68Aerial Platform Fire Truckintegrates functions of high altitude fire fightingas well as people saving and propertyrescuing. It has wide workingr, strong fire rescue abilityandgood maneuverability, theexcellent operational performanceis widely applicable to high-level, super-level fire rescue operations in the city.
I. Main characteristics of DG68Aerial Platform Fire Truck
1. World famous BENZ Actros 5041/10×4special chassis ultralowdriver's cab is adopted for the vehicle, with two-bridge drive and three-bridge steering.The chassis has16 forward gears and 2 reverse gears, the maximum speed is not less than 90Km/h;6-cylinder V-type superchargedinter-cooling engine, 300Kw, with emission reaching ChinaIII environmental requirements;the chassis has great bearing capacity, withstrong power and flexible maneuverability, as well as CANBUScontrol technology and ABS system,automatic gearbox,intelligent shift,intelligent cruise, Intelligent maintenance and other advancedfunctions;
2. The vehicle has strong abilityforfire fighting operations: excellent main operation parameters and fast movement.
3. With special PLC programmable integrated controller, digital setting and adjustmentcan be realized for control signal and maneuvering characteristics curve. It adapts to variousrequirements and haslimit position automatic deceleration and stop function, which canavoid movement impact tothe actuator, greatly improve the maneuvering performance, and has excellent reliability and security.
4. Advanced electro-hydraulic servo proportional control technology is adopted. The control elements are all imported from the Europe; imported sealing elements are applied to all the oil cylinders, high pcision tubeare adopted for rigid tubes, which achieves reliable system, smooth movement and good micro mobility.
5. Electric-hydraulic proportionalzero-lapclosed-loop servo hydraulic controltechnology of national patentis adopted for platform leveling, which realizes continuous, stableand reliable leveling of the platform. Both automatic leveling and manual leveling of platform are applicable
6. The combination boom section has great rescue ability: two groups of telescopic boom sections are folded through four-link luffingmechanism, No. 1 boom is made up of four telescopic boom sections, No. 2 boom is made up of three telescopic boom sections.Idler wheelis adopted for supporting between the telescopic boom sections, achieving limiting to the side direction and upward side throughsliding block, and good centeringof boom movement. The telescopic system consists of oil cylinder and chain.imported high-strength steelwith light weight, good rigidity, stable expansion and strongsafety factoris adopted for booms, which greatly improvesworking range of the vehicle and the ability to crossobstacles.
7. Auxiliary frame is a variable cross-section large box-shapedstructure, and the middle part is equipped with a built-in hydraulic oil tank, which is made of high strength steel.Chassis outriggersystem is two-echelon chain telescopic "H"type, with smoothoperationand large outrigger span. The vehicle is solid and stable.
8. The platform has great rescue ability: the rated load is 400kg, with wide platform area; deflection angle of the platform is 45° to the left and right, so as to facilitate the auxiliary platformat the frontto get close to the subject of rescue. Hydraulicpower supply is reserved in the platform, which can provide power to other auxiliary working devices and expand the rescue capability of the vehicle.
9. Vehicle operations can be conducted on the turntable and the platform, withfully functional multimedia display system, which can display the dynamic working parameters of the completemachine and carry out safety control at any time. Two sets of amplitude limiters are equipped, namely theelectronic and mechanical type. Therefore, operation of the complete machineis simple, stable and safe.
10. The vehicle is equipped with a complete safety protection device, and with spare gasoline engine pump deviceand emergency recovery operation device, which can achievenormal operationsof the vehicle inunforeseen circumstances.
11. Automatic lubricating deviceis equipped. The lubricating system can automatically conduct lubricationtothe main moving partsaccording to the p-set time interval, to ensure reliable operation of the vehicle, improve the service lifeand reduce maintenance costs;
12. Reversing monitor, anemometer, air breathing system and fire field monitoring devicecan be selectively equippedto further improve the amenityand safety of vehicle.
II. Advantages of DG68Aerial Platform Fire Truck
1. Efficient fire fighting capacity
Rated working height is 68m, rated working depth is 13.73m, rated load of platform is 400kg, max. working radius is up to 23m, rated flow of monitor is 50L/S, stroke ≥ 70m, the elevation angle of water monitor can reach 360°, the operation time of whole vehicle ≤ 200s.
2. Intelligent traveling with high mobility
5-axle special chassis for ultra low driver's cab is adopted in this vehicle, two axles for driving and three axles for steering, where the fifth axle is air suspension and attached with steering, small turning radius, large load bearing capacity, powerful and flexible, and CAN bus control technology, ABS system, automatic transmission, intelligent cruise, intelligent maintenance and service system and other advanced functions are available.
3. Complete safety protection system
The design of DG68 Aerial Platform Fire Truck follows two principles: 1) Principle of combining redundant design and simplified design. 2) Design principle of failure insurance.
In control architecture design, firstly computer technology, combination of mechanical and electronic and other technical means are adopted to avoid overload and over-radius operation so as to eliminate the existing of danger fundamentally; secondly logic interlocking, safety control and other design means are applied to enable the vehicle have automatic misoperation pvention capability; thirdly complete acoustic, optical and electric multimedia alarm channels are set to alert the operator current status dynamically in real-time. Just based on 25 items of control devices with safety different and different ways, this vehicle has multiple protection systems and a complete highly reliable system.
4. Strong obstacle crossing and rescuing capability
Two groups of telescopic boom sections are folded through four-link elevating system, No. 1 boom is made up of four telescopic boom sections, No. 2 boom is made up of three telescopic boom sections. The fully-extended length of No. 1 boom reaches 38m, that of No. 2 boom reaches 29.8m, max. radius can reach 23m, No. 2 boom not only can horizontally extend 23m, but also can realize downward detection rescue, the max. downward detection depth is 13m; multifunction platform can level continuously and stably, and automatic leveling and manual leveling are available. The platform can be tilted for 45°leftward and rightward, auxiliary platform is equipped on the platform to get closer to rescue object, also descent control device support and life-saving channel are equipped on the platform, and hydraulic power source is reserved to supply power to other auxiliary working devices, such as hydraulic cutter and pliers to broaden rescue capability of the vehicle.
Main technical parameters of DG68Aerial Platform Fire Truck
1. Table of main technical parametersof driving status

Type	Items			Unit	Parameters
Dimension parameters	Overall length of whole machine			mm	15060
	Overall height of whole machine			mm	4000
	Overall width of whole machine			mm	2500
	Axle distance	Axle 1-Axle 2		mm	1700
		Axle 2-Axle 3		mm	3400
		Axle 2-Axle 3		mm	1350
		Axle 2-Axle 3		mm	1350
Quality parameters	Curb weight	48050	Axle load of Axle1 and 2	kg	16000
			Axle load of Axle3 and 4	kg	24700
			Axle load of Axle5	kg	7350
	Full mass	48200	Axle load of Axle1 and 2	kg	16240
			Axle load of Axle3 and 4	kg	24620
			Axle load of Axle5	kg	7340
Powerparameters	Enginetype				OM501LA.III/17
	Engine power/speed			kw/r/min	300kw/1800rpm
Driving parameters	Max. vehiclespeed			Km/h	≥85
	Min. turning diameter			m	≤24
	Approach angle			°	9
	Departure angle			°	9
	Braking distance(vehicle speed 30km/h)			m	≤9.5
	Min. ground clearance			mm	331
	Max. gradient			%	≥25%

2.Table of main technical parametersof operation status

Type	Items		Unit	Parameters
Performance parameters	Rated working height		m	68
	Max. working range		m	23
	Max. probingdepth of aerial platform		m	13.7
	Rated load of aerial platform		kg	400
	Outrigger span (longitudinal×horizontal)		m	7.635×7.0
	Amplitude variationof No. 1 boom		°	1~84
	Amplitude variationof No. 2 boom		°	-74~74
Working speed	Operation time of boom		s	≤200
	Spading time of outrigger		s	≤30
Fire fighting performance	Firemonitor	Rated flow	L/s	50
		Rated pssure	MPa	0.8
		Rated jetting distance	m	≥70
		Swinging range of monitor head	°	Up and down: -45~90 Left and right: ±90
