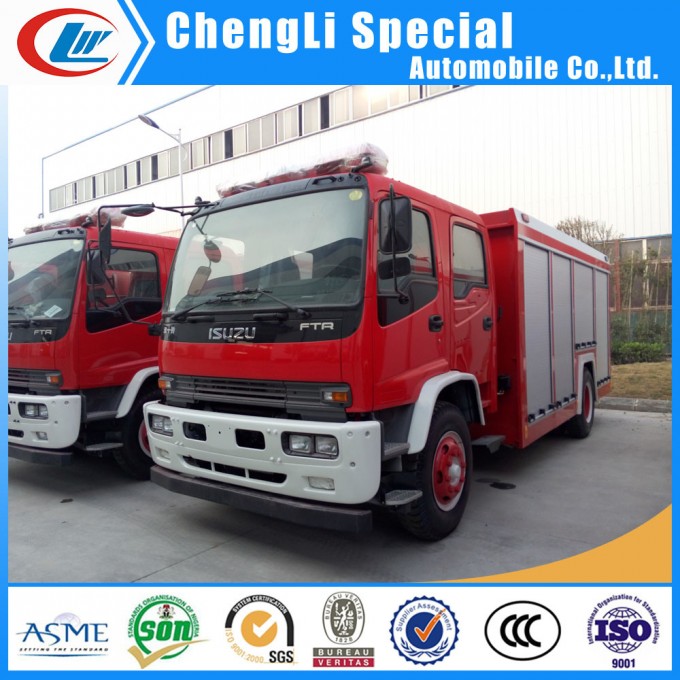

8t 8000L Water Foam 8ton 4*2 Isuzu Fire Fighting Truck for Sale

8T 8000L Water foam 8ton 4*2 ISUZU fire fighting truck for sale
(1) Water foam fire fighting trucks(2) Gross weight: 14,950kg
(3) Water tanker volume: 6,000 litres
(4) Foam tanker volume:2,000 litres
(5) Fire pump: CB10/40
(6) Fire monitor: PL40

We can offer4*2, 6*4 ,DFAC, FOTON, SINO, SHACAN,FAW,CAMC,ISUZU,JMC, fire fighting trucks. More phots for your reference.

Chassis	Chassis brand	/	ISUZU
	Model	/	QL11609
	Drive type	/	4x2 left hand drive
	Cabin	/	double cabin,two row,5 seats
	Overall dimension(L*W*H)	mm	8430x2500x3660
	Total mass	kg	14950
	Rated Loading capacity	kg	6100
	Wheel base	mm	4700
	Front /rear suspension	mm	1335/2265
	Approach/departure angle	(°)	16/12
	Spring No.	/	7/7+5
	Tyre No.	pcs	6, (front 2, rear 4)
	Type &Size of Tyre	/	10.00-20
	Axle No.	/	2
	Steering wheel	/	left hand drive
	Gear box	/	5 speed forward with 1reverse, manual
Engine	Engine model	/	4HK1-TCG40
	Engine brand	/	ISUZU
	Engine type	/	4 cylinders in line
	Maximum power	HP/kw	190/139
	Fuel type	/	diesel
	Displacement	ml	5193
	Max torque	N.m	/
	Rated rotor speed	Rpm	/
	Emission Standard	/	Euro IV

2.Power takeoff
Full power and sandwich type.

3. Pump room and Equipment room
Structure
Main structure is welded by Q235 material.
Pump room
Pump room is located at rear of truck with side and rear aluminum alloy roller shutters andspotlight.
With anti-slip footstep at two sides for parts of equipment and ramp at the rear of truck.
Equipment room
Equipment room is at the back of cabin with side aluminum alloy roller shutters and spotlight and with anti-slip footstep at two sides.
Storage box and push-pull tray are between equipment footstep box and equipment room.

4.Tank
Water: 12,000L
Material: carbon steel photostatic treatment.
Thickness(floor:side:baffle): 4:4:3 mm
With one DN430 manhole, one DN50 overflow.
With DN80 outlet for remain water and equipped with ball valve
With two DN80 water inlets on left and right of the truck

5.Pump
Model: B10/60
Type: Low pssure centrifugal pump.
Pipe: 20seamless steel tube.
Inlet and outlet:one DN150 inlet with stainless strainer and cover.two DN80 outlets with ball valves and covers.


6.Fire monitor
Model: PL48-64D
Flow: 48~64L/s
Pressure: 1.0 ~1.2 Mpa
Fire rang: water ≥60m
Rotation angle: 360° rotation
Angle of elevation: ≥+70°
Angle of depssion: ≤-15°

7. Fire control system:
Cab control: electrical switches, pneumatic master switch, water pump shift, warning lights, lighting and signal device control and so on.

Pump room control: blending proportions set, control valve switch, parameter display, status display etc.

8. Electricity equipment
independent circuit
Chinese brand good quality electricity control system
Light:24V voltage
Lighting
One fire light at the rear top of truck

9. Painting
Good quality painting
Mainly red color

WHY CHOOSE US?
1.Experience:
10 years experience of production,sales,research and development in the field of special trucks.
2.Specialization:
OEM&ODM is available,we can produce according to your demand, the material,the size, the color and the logo is optional for you.
3.Good Quality:
has solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system and passed the ISO9001-2008 and the 3C (China Compulsory Certification),with SGS,BV certifcate as well.
4. Chassis supply:
we have avery good long term cooperation relationship with chassis manufacturer,such as DONGFENG,FOTON,SINOTRUCK,SHACMAN,IVECO,FAW,HINO,CAMC,NORTH-BENZ,etc.
5. Production supply capacity
Company Scale: More than 3000 employees with 1000 acres factory, total asset 2billion.
We manufacture the truck as soon as possible once your order /confirm/ied. And for the stock, we can delivery it immediately.

Our services
1. we can send our technician to arrive the customer's country to provide the service and also we can train customer's workers for free.
2. free consultation forever. When you meet small problems, professional advices can help you to solve them soon.
3. One year free cost warranty.
4. Spare parts forever. When you need spare parts, we can send them to you immediately.

our advantage:
1. competitive price and excellent quality
2. more than 10 year's experience as amanufacture
3. ccc, Iso, BV certificate
4. perfect after-sale service
5.customized products available with us
6.export covering more than 50 countries and regions
7.annual production value topped 240,000,000us dollars per year
