Loader Haul Dump Truck with Dana Parts

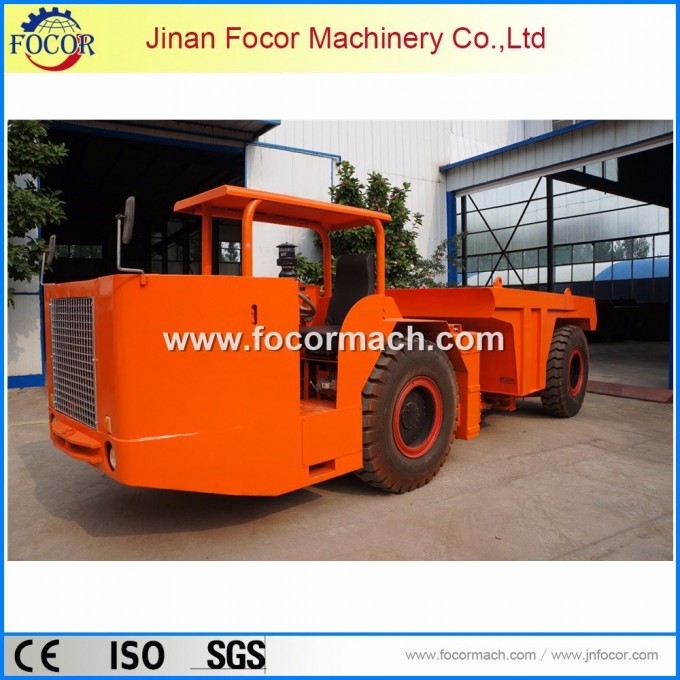

FUK-8 Underground truck

(loader haul dump truck with DANA parts)

Features:
1. FUK-8 Undergroundminingtruckadopts Germany Deutz BF4M1013ECEngine, with turbocharger and bigger power for higher sea level mining.
2. Driving system adopts American DANA Torque converter and shift transmission, which is of easy operation and smooth running.
3. The braking system adopts hydraulic double pipe working system, and equipped with multi-disk wet braker, self-developed anti-skid differential mechanism of NO-SPIN.
4. Adopts the ACME purifier produced by War-industry enterprises, reducing the air pollution and improve the underground working environment effectively.

Main Technical Parameters:

DieselEngine:	DEUTZBF4M1013EC/ 86KW
Transmission:	DANA RT20324
TorqueConverter:	DANA C273 series
DriveAxleType:	NO-SPIN
Bucket volume:	4m3
RatedCapacity:	8000kg
Min.GroundClearance:	250mm
TotalWeight:	10.5T
MaximumTraction:	100KN
Runningspeed:	0-25km/h
MinTurningRadius:	Inner4500mm; Outer6590mm
Gradeability:	16°
SteeringAngle:	±38°
Dimensions:	7100*1820*2300mm

Remarks:We can choose different parts according to different condition of the underground mining or requirement from our customers, we will make the best proposal with reasonable price.

Pls contact us if you need the detailed specification and quotation.
